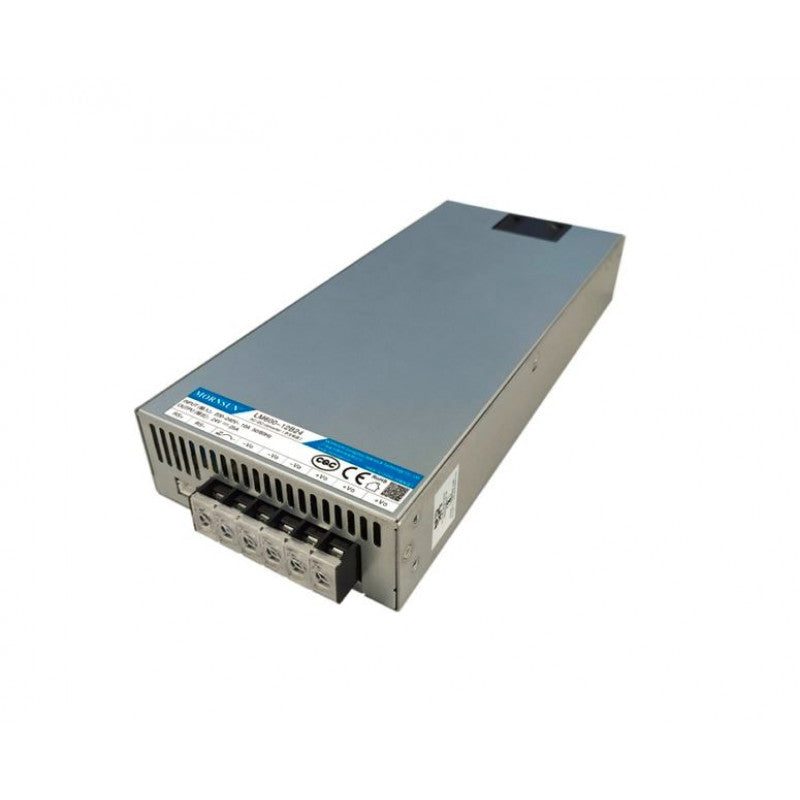

Mornsun LM600-12B15 AC/DC 600W Enclosed Switching Power Supply
The LM600-12B15 series is a line of enclosed AC-DC switching power supplies from Mornsun. These converters feature AC input and DC input voltage acceptance, cost-effectiveness, low no-load power consumption, high efficiency, and high reliability. They offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards. The LM600-12B15 series is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Also check Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply. It is a high-efficiency power supply with a wide input voltage range of 176-264VAC or 240-370VDC. The power supply can accept both AC and DC inputs, making it versatile for various applications. It operates in an ambient temperature range of -20? to +60? and can function at altitudes up to 5000m. Key features include LED indicators for power status, over-temperature protection, output short circuit protection, over-current protection, and over-voltage protection.
