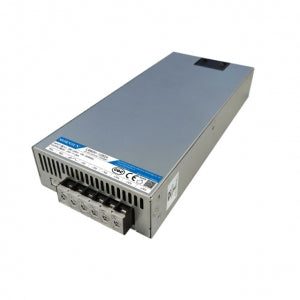

Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply
Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 10000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Input voltage range: 176-264VAC or 240-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃ to +60℃
- LED indicator for power on
- Operating up to 5000m altitude
- Over-temperature protection, output short circuit, over-current, over-voltage protection
- Built-in DC fan
- Remote sense function
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply
The LM600-12B27 is a high-efficiency, enclosed AC/DC switching power supply that features a wide input voltage range of 176-264VAC or 240-370VDC. It can also accept AC or DC input (dual-use of same terminal), making it versatile and adaptable to a variety of applications. The LM600-12B27 has an operating ambient temperature range of -20℃ to +60℃ and can operate up to 5000m altitude. It also features a number of safety protections, including over-temperature protection, output short circuit, over-current, and over-voltage protection. The LM600-12B27 is equipped with a built-in DC fan for cooling and has a remote sense function for monitoring the output voltage.
Features:
- Wide input voltage range: 176-264VAC or 240-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃ to +60℃
- LED indicator for power on
- Operating up to 5000m altitude
- Over-temperature protection, output short circuit, over-current, over-voltage protection
- Built-in DC fan
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM600-12B27 AC/DC 600W Enclosed Switching Power Supply
Specifications
| Output voltage | 27V |
| Output current | 22.2A |
| Output power | 600W |
| Efficiency | 87% at 230VAC |
| Dimensions | 200 x 120 x 40mm |
| Weight | 2.5kg |
