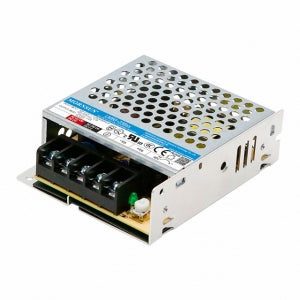

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply - Buy Online in India

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

Rs 1,369/-
- 27%
Rs 1,369/-
Rs 1,870/-
Save Rs 501/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: DTIFPS0367
  • Universal input voltage of 85-305VAC or 120-430VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption and high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple and noise
  • Output short circuit, over-current, and over-voltage protection
  • IEC/EN/UL62368, EN60335, EN61558, and GB4943 safety approved
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

Banner

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply
Rs 1,870/- Rs 1,369/-
Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

Rs 1,870/- Rs 1,369/-
Description

Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

The LM50-23B48 is an enclosed AC/DC converter from Mornsun America, LLC. It has a single output of 48V at 1.1A, for a total power output of 52.8W. The input voltage range is 85-305VAC or 120-430VDC, and the efficiency is 90%. The isolation voltage is 4000VAC.

The LM50-23B48 is a compact and lightweight unit, measuring just 2.25 x 3.75 x 5.25 inches and weighing 1.2 pounds. It is made of durable materials and is designed to withstand harsh environments. The LM50-23B48 is also equipped with a number of safety features, including overvoltage protection, undervoltage protection, and short circuit protection.

The LM50-23B48 is a versatile power supply that can be used in a wide variety of applications. It is ideal for use in industrial, commercial, and consumer electronics applications.

check out : Mornsun LM50-23B24 AC/DC 50W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x  Mornsun LM50-23B48 AC/DC 50W Enclosed Switching Power Supply

Specifications:

Single output 48V at 1.1A
Total power output 52.8W
Input voltage range 85-305VAC or 120-430VDC
Efficiency 90%
Isolation voltage 4000VAC
Dimensions 2.25 x 3.75 x 5.25 inches
Weight 1.2 pounds
