Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS - Buy Online in India

Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS

Rs. 1,345
Rs. 1,838
Rs. 1,345
Save Rs. 493
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.
SKU: DTIFPS0204
  • Universal 85 - 264VAC or 120 - 370VDC input voltage
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range: -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS
Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS
Rs. 1,838 Rs. 1,345
Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS

Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS

Rs. 1,838 Rs. 1,345
Description

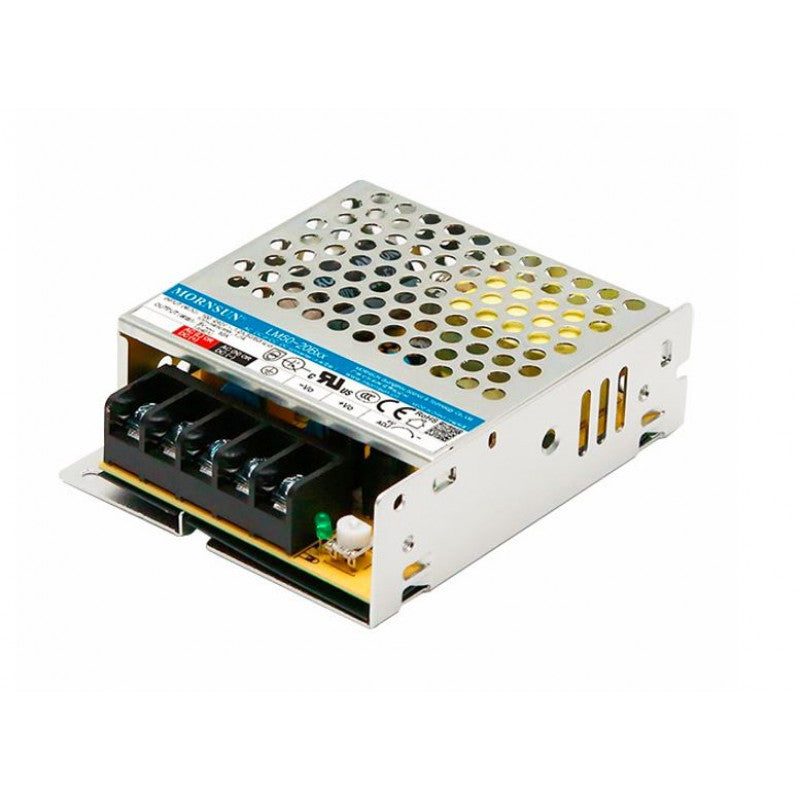

Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS

The LM50-20B48 series is an enclosed AC-DC switching power supply from Mornsun. It features a universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards. It is widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

  • Universal AC input
  • Accepts DC input voltage
  • Cost-effective
  • Low no-load power consumption
  • High efficiency
  • High reliability
  • Double or reinforced insulation
  • Excellent EMC performance
  • Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards
  • Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications

check out : Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM50-23B15 AC/DC 50W Enclosed Switching Power Supply

Specifications

Package Includes:

1 x Mornsun LM50-20B48 AC/DC 50W Enclosed SMPS

Specifications:

Type Enclosed Type Single Output
Output Power 52.8W
Series LM50-20B
Part Number LM50-20B48
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 48V
Output Current
 1.1A
