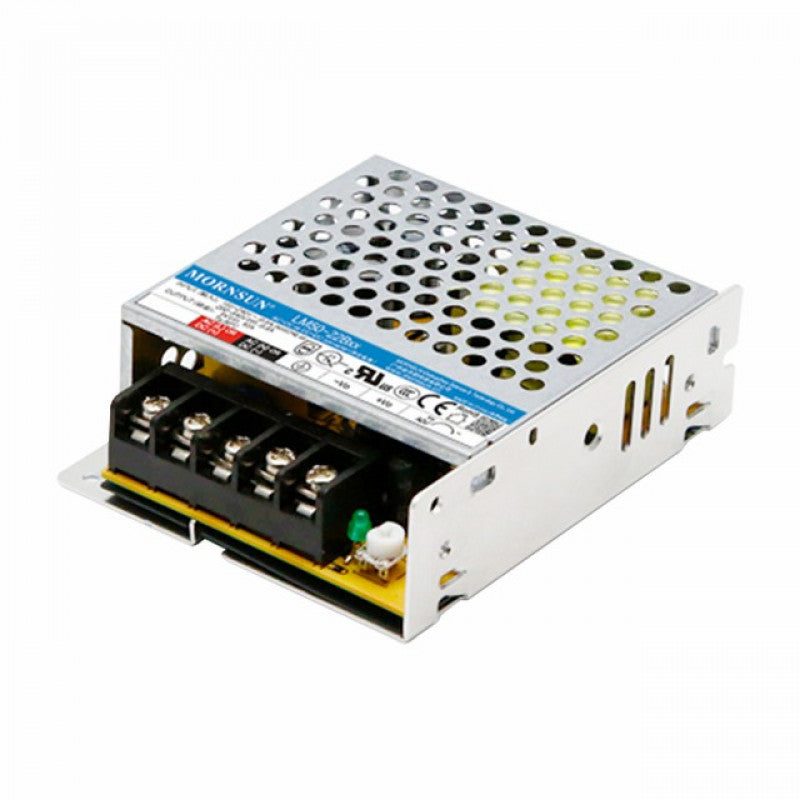

Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply
Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Contact form
- Input voltage: 165 - 264VAC or 180 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply
The LM50-22B24 is an enclosed AC-DC switching power supply from Mornsun. It features a universal input voltage range of 165 - 264VAC or 180 - 370VDC, accepts DC input voltage, is cost-effective, has low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets a variety of international standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features
- Universal input voltage range: 165 - 264VAC or 180 - 370VDC
- Accepts DC input voltage
- Cost-effective
- Low no load power consumption
- High efficiency
- High reliability
- Double or reinforced insulation
- Excellent EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
- Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, and smart home
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-22B24 AC/DC 50W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 52.8W |
| Series | LM50-22B |
| Part Number | LM50-22B24 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 24V |
| Output Current | 2.2A |
