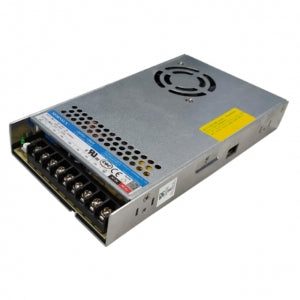

Mornsun LM350-10B24 AC/DC 350W Enclosed Switching Power Supply
The LM350-10B24 is a 350W AC/DC switching power supply with a single output of 24V DC. It has a universal input voltage of 115VAC to 230VAC and a frequency range of 50Hz to 60Hz. The output voltage is adjustable from 0V to 24V and the output current is 14.6A. The power supply has a power factor correction (PFC) function that helps to improve the efficiency of the power supply and reduce the amount of power that is wasted. The power supply also has a number of safety features, including overvoltage protection, undervoltage protection, overcurrent protection, and short circuit protection.
Features:
- Universal input voltage of 115VAC to 230VAC
- Frequency range of 50Hz to 60Hz
- Single output of 24V DC
- Output voltage adjustable from 0V to 24V
- Output current of 14.6A
- Power factor correction (PFC) function
- Overvoltage protection
- Undervoltage protection
- Overcurrent protection
- Short circuit protection
check out : Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
