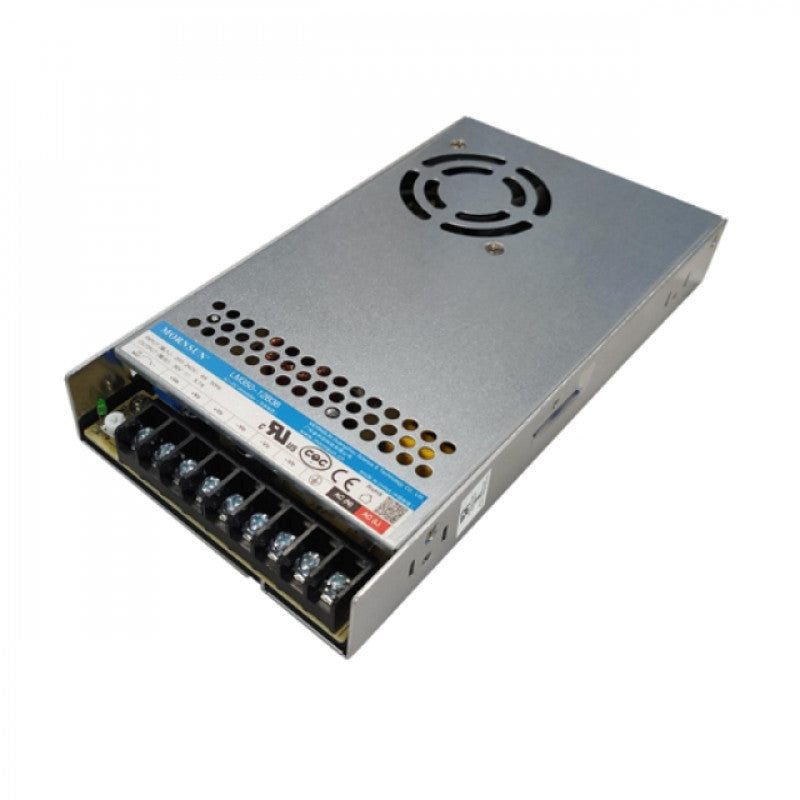

Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply

Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply

The LM350-12B12 series is a cost-effective, enclosed AC-DC switching power supply from Mornsun. It features AC input and DC input voltage acceptance, low no load power consumption, high efficiency, high reliability, and double or reinforced insulation. The converters offer excellent EMC performance and meet a variety of standards, including IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, and IEC/EN61558. They are widely used in a variety of industries, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• AC input and DC input voltage acceptance
• Low no load power consumption
• High efficiency
• High reliability
• Double or reinforced insulation
• Excellent EMC performance
• Meets a variety of standards
• Widely used in a variety of industries

check out : Mornsun LM350-12B05 AC/DC 350W Enclosed SMPS

If you are looking for a cost-effective, enclosed AC-DC switching power supply with a variety of features, the LM350-12B12 series from Mornsun is a great option.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

Also check the Mornsun LM350-12B48 AC/DC 350W Enclosed Switching Power Supply, It offers a universal input voltage range of 176 to 264 VAC or 240 to 370 VDC, with an output power of 350 watts at 48 volts DC. The power supply features high efficiency (up to 89%), low ripple noise (less than 1%), and operates in a temperature range of -30℃ to +70℃. It includes protection features such as output short circuit, over-current, over-voltage, and over-temperature protection.

Package Includes:

1 x  Mornsun LM350-12B12 AC/DC 350W Enclosed Switching Power Supply

Specifications
