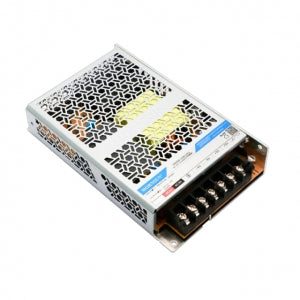

Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS
Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 176 - 305VAC / 240 - 430VDC
- Accepts both AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- High I/O isolation test voltage up to 4000VAC
- Compact size with high power density
- High efficiency and high reliability
- Protection features for output short circuit, over-current, over-voltage, and over-temperature
- Designed to meet OVC III safety standard (EN62477)
- Suitable for applications at altitudes up to 5000m
Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS
The LM200-22B24R2 is an ultra-small, second-generation new industrial standard enclosed power supply from Mornsun. It features universal AC input, accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. It also offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC/BS EN62368, EN/IEC60335, EN651558, EN62477, GB4943 standards.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS
Package Includes:
1 x Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS
Specifications:
Specification | Value |
---|---|
Output Power | 200W |
Output Voltage | 24V |
Output Current | 8.8A |
Dimensions | 150 x 100 x 40 mm |
Weight | 1.2 kg |
Operating Temperature | -20 to 60 °C |
Storage Temperature | -40 to 85 °C |
