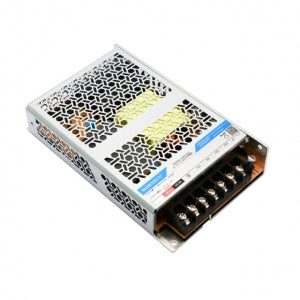

Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS
Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 176 - 305VAC / 240 - 430VDC
- Accepts both AC or DC input (dual-use of the same terminal)
- Operating ambient temperature range: -40°C to +85°C
- High I/O isolation test voltage up to 4000VAC
- Compact size with high power density
- High efficiency and high reliability
- Protection features for output short circuit, over-current, over-voltage, and over-temperature
- Designed to meet OVC III safety standard (EN62477)
- Suitable for applications at altitudes up to 5000m
Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS
The LM200-22B12R2 is an enclosed AC/DC converter from Mornsun. It has a universal AC input of 176-305 VAC or 240-430 VDC, and a single output of 12V at 17.5A. The converter is rated for 200W output power, and has a high efficiency of up to 95%. It also features low no-load power consumption, high reliability, and double or reinforced insulation. The LM200-22B12R2 meets a variety of safety standards, including IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC/BS EN62368, EN/IEC60335, EN651558, EN62477, and GB4943. It is widely used in a variety of applications, including industrial, LED, streetlight control, electricity, security, telecommunications, and smart home.
check out : Mornsun LM200-22B24R2 AC/DC 200W Enclosed SMPS
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM200-22B12R2 AC/DC 200W Enclosed SMPS
Specifications:
Specification | Value |
---|---|
Input Voltage | 176-305 VAC or 240-430 VDC |
Output Voltage | 12V |
Output Current | 17.5A |
Output Power | 204W |
Efficiency | Up to 95% |
No-load Power Consumption | Less than 0.5W |
Dimensions | 150 x 95 x 65mm |
Weight | 1.5kg |
