Mornsun LM200-12B24 AC/DC 200W Enclosed Switching Power Supply - Buy Online in India

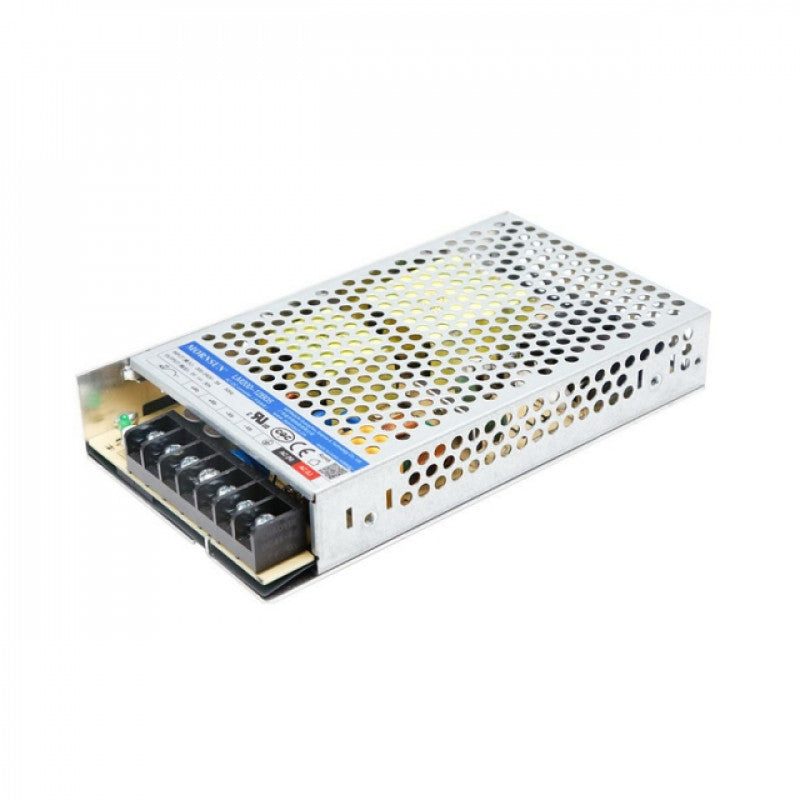

Mornsun LM200-12B24 AC/DC 200W Enclosed Switching Power Supply

The LM200-12B24 is a cost-effective, reliable, and versatile AC-DC switching power supply from Mornsun. It features selectable AC input and DC input voltage, low no load power consumption, high efficiency, and excellent EMC performance. The LM200-12B24 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

• Selectable AC input voltage (90-264VAC) or DC input voltage (240-373VDC)
• Low no load power consumption (<0.75W)
• High efficiency (up to 88.5%)
• Excellent EMC performance
• Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
• Widely used in a variety of applications

check out : Mornsun LM200-12B24 AC/DC 200W Enclosed Switching Power Supply

If you are looking for a cost-effective, reliable, and versatile AC-DC switching power supply, the LM200-12B24 from Mornsun is a great option.

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
