Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply - Buy Online in India

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Rs 2,988/-
- 27%
Rs 2,988/-
Rs 4,083/-
Save Rs 1,095/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: DTIFPS0383
  • Selectable AC input range: 90 - 132VAC/180- 264VAC
  • DC input range: 240 - 370VDC(Switch inpositionof 230)
  • Ultra low standby power consumption <0.75W@230VAC
  • Operating ambient temperature range: - 30℃to+70℃
  • High efficiency, high reliability
  • LED indicator for power on
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Operating altitude up to 5000m
  • Safety according to EN60335, EN61558

This product is not available for store pickup. Apologies for the inconvenience caused

Banner

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply
Rs 4,083/- Rs 2,988/-
Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Rs 4,083/- Rs 2,988/-
Description

Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

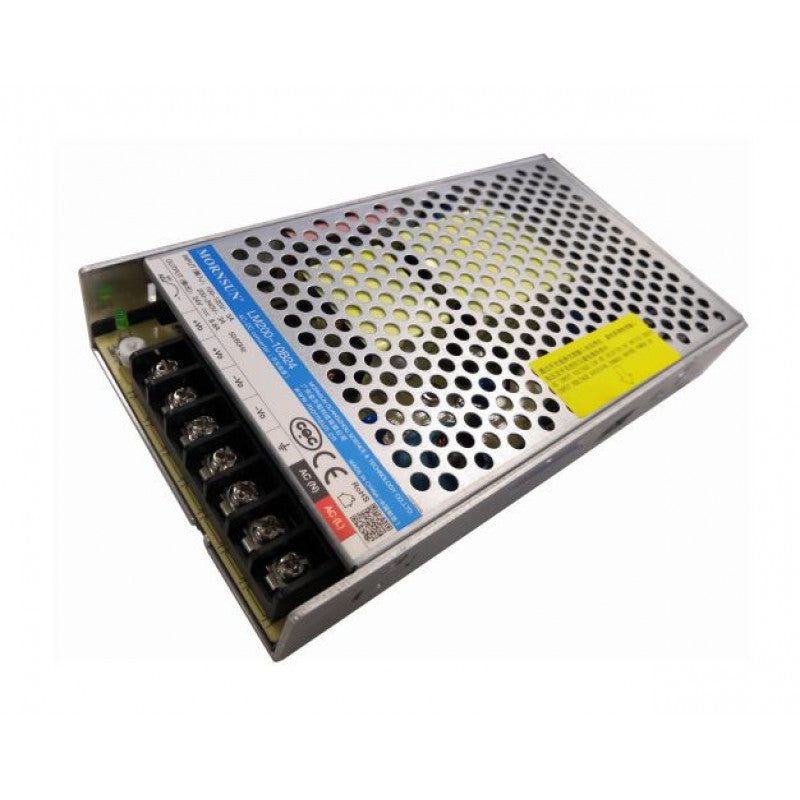

The LM200-10B36 is an enclosed AC-DC switching power supply from Mornsun. It features a selectable AC input, DC input voltage acceptance, cost-effectiveness, low no load power consumption, high efficiency, and high reliability. It offers excellent EMC performance and meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.

Features

  • Selectable AC input: The LM200-10B36 can be powered by a wide range of AC input voltages, from 90 to 264 VAC.
  • DC input voltage acceptance: The LM200-10B36 can also be powered by a DC input voltage, from 240 to 373 VDC.
  • Cost-effective: The LM200-10B36 is a cost-effective solution for a wide range of applications.
  • Low no load power consumption: The LM200-10B36 consumes very little power when it is not in use, which can help to save energy costs.
  • High efficiency: The LM200-10B36 is highly efficient, which can help to reduce energy costs and extend the life of the product.
  • High reliability: The LM200-10B36 is designed to be highly reliable, and it is backed by a one-year warranty.

If you are looking for an enclosed AC-DC switching power supply with a wide range of features and benefits, the LM200-10B36 is a great option.

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x  Mornsun LM200-10B36 AC/DC 200W Enclosed Switching Power Supply

Specifications

Type Enclosed Type Single Output
Output Power 212.4W
Series LM200-10B
Part Number LM200-10B36
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 36V
Output Current 5.9A
