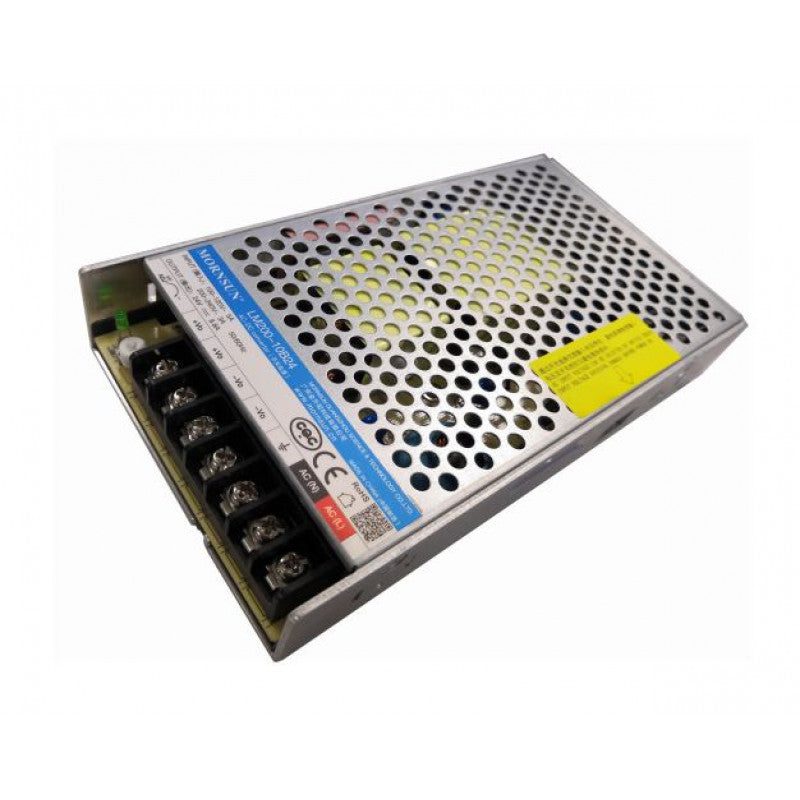

Mornsun LM200-10B48 AC/DC 200W Enclosed Switching Power Supply
The LM200-10B48 is a cost-effective, reliable, and efficient AC-DC switching power supply from Mornsun. It features a selectable AC input range, DC input voltage acceptance, low no-load power consumption, and excellent EMC performance. The LM200-10B48 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards. It is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features:
- Selectable AC input range: 90-132VAC/180-264VAC
- DC input range: 240-370VDC (switch in position of 230)
- Ultra low standby power consumption: <0.75W @ 230VAC
- Operating ambient temperature range: -30°C to +70°C
- High efficiency: up to 89.5%
- High reliability: meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
- Wide range of applications: industrial, LED, street light control, electricity, security, telecommunications, and smart home
check out : Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
