Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply
Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Selectable AC input range: 90 - 132VAC/180- 264VAC
- DC input range: 240 - 370VDC(Switch inpositionof 230)
- Ultra low standby power consumption <0.75W@230VAC
- Operating ambient temperature range: - 30℃to+70℃
- High efficiency, high reliability
- LED indicator for power on
- Output short circuit, over-current, over-voltage, over-temperature protection
- Operating altitude up to 5000m
- Safety according to EN60335, EN61558
This product is not available for store pickup. Apologies for the inconvenience caused

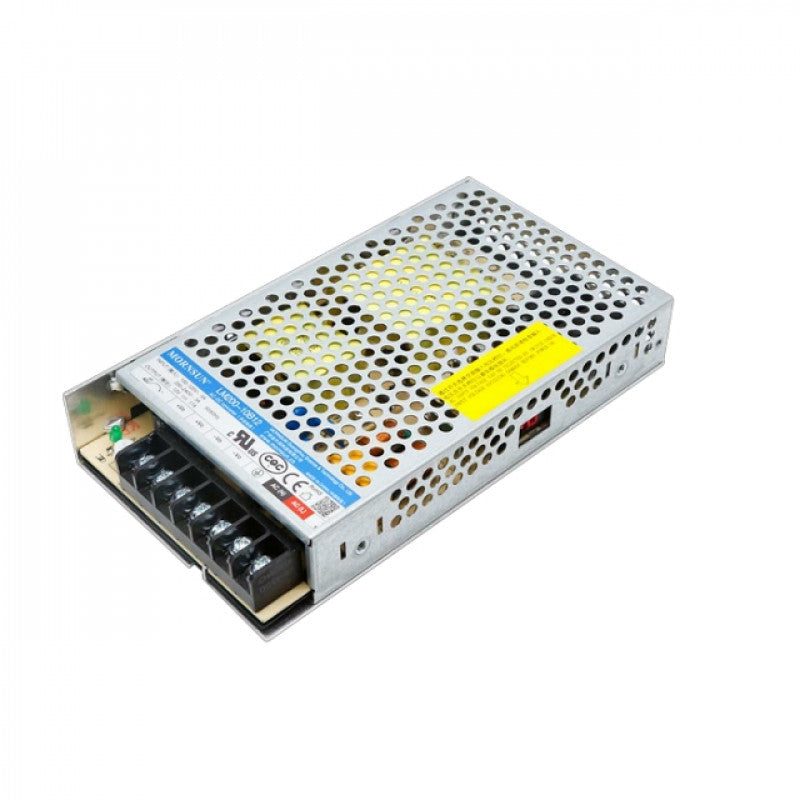

Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply
The LM200-10B15 is a cost-effective, reliable, and efficient enclosed AC-DC switching power supply from Mornsun. It features selectable AC input and DC input voltage, low no load power consumption, and high EMC performance. The LM200-10B15 meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards, and is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features
- Selectable AC input and DC input voltage
- Low no load power consumption
- High EMC performance
- Meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, and GB4943 standards
- Widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications
check out : Mornsun LM200-10B48 AC/DC 200W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM200-12B12 AC/DC 200W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM200-10B15 AC/DC 200W Enclosed Switching Power Supply
Specifications:
| Type | Enclosed Type Single Output |
| Output Power | 210W |
| Series | LM200-10B |
| Part Number | LM200-10B15 |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
| Output Voltage | 15V |
| Output Current | 14A |
