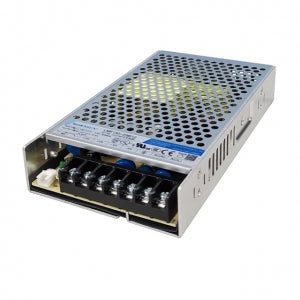

Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply
Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 3,925
Regular price
Rs. 5,363
Sale price
Rs. 3,925
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 200/- OFF
RC200
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85 - 305V AC or 120 - 430VDC
- Dual-use AC/DC input
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, and over-temperature protection
- Remote ON/OFF control
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply
The LMF150-23B15 is a 150W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85-305VAC, a DC input of 120-430VDC, and a single output of 15VDC at 10A. The LMF150-23B15 also has a built-in active PFC function, which helps to improve power efficiency and reduce emissions.
Features:
- Universal AC input of 85-305VAC
- DC input of 120-430VDC
- Single output of 15VDC at 10A
- Built-in active PFC function
- High efficiency (86%)
- Low emissions
- Compact and lightweight design
- IP20 protection rating
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LMF150-23B15 AC/DC Enclosed Switching Power Supply
Specifications
| Power | 150W |
| Input voltage | 85-305VAC |
| Output voltage | 15VDC |
| Output current | 10A |
| Efficiency | 86% |
| Isolation voltage | 4000VAC |
| Dimensions | 150 x 100 x 45mm |
| Weight | 1.2kg |
