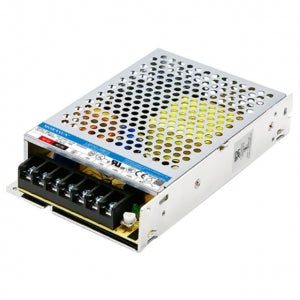

Mornsun LM150-22B48 AC/DC 150W Enclosed Switching Power Supply
The LM150-22B48 is a universal type industrial power supply manufactured by Mornsun. With a power output of 158.4W, it offers reliable and stable power for various industrial applications. The power supply is designed to accept a wide input voltage range, making it versatile and adaptable to different power supply configurations. It provides efficient operation with an efficiency rating of 89% and ensures safety through a high isolation voltage of 4000VAC. The LM150-22B48 is known for its narrow input voltage range and cost-effectiveness.
Features
- Wide input voltage range: The LM150-22B48 can accept input voltages ranging from 165VAC to 264VAC or 180VDC to 370VDC, enabling flexibility in different power supply setups.
- High efficiency: With an efficiency rating of 89%, the power supply minimizes energy loss and promotes energy-saving operation.
- Isolation: The LM150-22B48 offers a high isolation voltage of 4000VAC, providing effective protection against electrical hazards.
- Narrow input voltage range: Designed with a narrow input voltage range, the LM150-22B48 is suitable for specific applications and offers cost-effectiveness.
check out : Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
