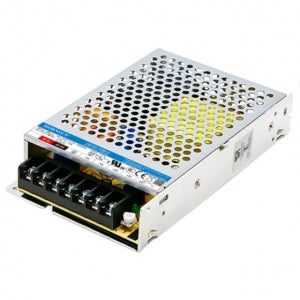

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply - Buy Online in India

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

Rs 2,181/-
- 27%
Rs 2,181/-
Rs 2,980/-
Save Rs 799/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.
SKU: DTIFPS0361
  • Universal input voltage of 165 - 264VAC or 180 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption, high efficiency
  • High I/O isolation test voltage up to 4000VAC
  • Low ripple & noise
  • Output short circuit, over-current, over-voltage, over-temperature protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply
Rs 2,980/- Rs 2,181/-
Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

Rs 2,980/- Rs 2,181/-
Description

Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

The LM150-22B36 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 165-264 VAC and 180-370 VDC. This power supply is designed to deliver a regulated output voltage of 36 VDC and can provide a maximum power output of 154.8 watts. It offers high efficiency, with a rating of 88%, and provides a high level of isolation at 4000VAC. The LM150-22B36 is known for its narrow input voltage range and cost-effectiveness.

Features

  • Wide input voltage range: The LM150-22B36 supports an input voltage range of 165-264 VAC and 180-370 VDC, making it suitable for various industrial applications.
  • Regulated output voltage: It provides a stable and regulated output voltage of 36 VDC.
  • High power output: The power supply can deliver a maximum power output of 154.8 watts.
  • High efficiency: With an efficiency rating of 88%, the LM150-22B36 minimizes power losses and operates efficiently.
  • High isolation: It offers a high level of isolation at 4000VAC, ensuring electrical safety.
  • Cost-effective design: The LM150-22B36 is designed to provide a narrow input voltage range and is known for its cost-effectiveness.

check out : Mornsun LM150-22B48 AC/DC 150W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Specifications

Package Includes:

1 x  Mornsun LM150-22B36 AC/DC 150W Enclosed Switching Power Supply

Specifications

Power (W) 154.8
Vin (VAC) 165-264
Vin (VDC) 180-370
Vout (VDC) 36
Iout 4.3A
Efficiency (%) 88
Isolation 4000VAC
