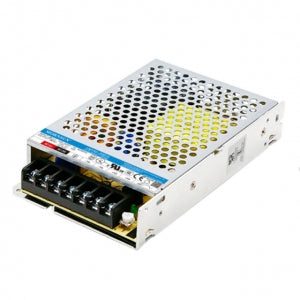

Mornsun LM150-20B24 AC/DC 150W Enclosed Switching Power Supply

Mornsun LM150-20B24 AC/DC 150W Enclosed Switching Power Supply

The LM150-20B24 is a 156W AC/DC enclosed switching power supply with a single output of 24V and 6.5A. It has a universal input voltage of 85-264VAC or 120-370VDC, and a maximum efficiency of 88%. The power supply is protected against output short circuit, over current, over voltage, and over temperature. It is also RoHS compliant.

Features:

• Universal input voltage of 85-264VAC or 120-370VDC
• Single output of 24V and 6.5A
• Maximum efficiency of 88%
• Protected against output short circuit, over current, over voltage, and over temperature
• RoHS compliant

check out : Mornsun LMF150-23B12 AC/DC Enclosed Switching Power Supply

Note:

• Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
• The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
• All index testing methods in this datasheet are based on our company's corporate standards
• In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
• The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
• The output voltage can be adjusted by the ADJ, clockwise to increase
• Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
• The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM150-23B24 AC/DC 150W Enclosed Switching Power Supply

Package Includes:

1 x Mornsun LM150-20B24 AC/DC 150W Enclosed Switching Power Supply

Specifications:
