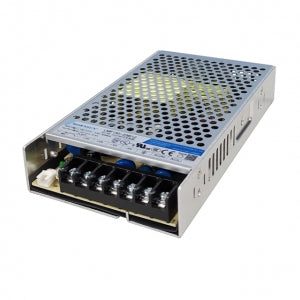

Mornsun LMF150-23B12 AC/DC Enclosed Switching Power Supply
Mornsun LMF150-23B12 AC/DC Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 85 - 305V AC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating temperature range: -30℃ to +70℃
- Built-in active PFC function
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current (Built-in constant-current limiting circuit), over-voltage, over-temperature protection
- Remote ON-OFF control
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LMF150-23B12 AC/DC Enclosed Switching Power Supply
The LMF150-23B12 is an enclosed AC/DC power supply from Mornsun. It has a power output of 150W and an output voltage of 12V. The input voltage range is 85 to 305VAC, and the output current is 12.5A. The efficiency is 85.5%, and the isolation voltage is 4000VAC. The power supply is also protected against overvoltage, overcurrent, and short circuit.
Features
- Enclosed design for protection from dust and moisture
- Wide input voltage range for compatibility with a variety of power sources
- High output current for powering a wide range of devices
- High efficiency for low power consumption
- Overvoltage, overcurrent, and short circuit protection for safety
check out : Mornsun LM100-23B24 AC/DC 100W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM150-20B24 AC/DC 150W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LMF150-23B12 AC/DC Enclosed Switching Power Supply
Specifications
| Power output | 150W |
| Output voltage | 12V |
| Input voltage range | 85 to 305VAC |
| Output current | 12.5A |
| Efficiency | 85.5% |
| Isolation voltage | 4000VAC |
| Dimensions | 190 x 100 x 65mm |
| Weight | 2.2kg |
