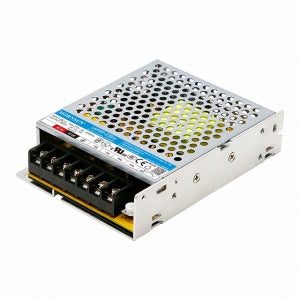

Mornsun LM100-23B24 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-23B24 AC/DC 100W Enclosed Switching Power Supply
In stock
Couldn't load pickup availability
Contact form
- Universal 85 - 305VAC or 120 - 430VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-23B24 AC/DC 100W Enclosed Switching Power Supply
The LM100-23B24 is a 108W enclosed AC-DC switching power supply from Mornsun. It has a universal AC input voltage range of 85-305VAC and can also accept DC input voltages up to 431VDC. The output voltage is 24V and the output current is 4.5A. The power supply has an efficiency of up to 89.5% and a ripple noise of less than 1%. It is also protected against overvoltage, undervoltage, overcurrent, and short circuit. The LM100-23B24 is a compact and reliable power supply that is suitable for a wide range of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
Features:
- Universal AC input voltage range of 85-305VAC
- Accepts DC input voltages up to 431VDC
- Output voltage of 24V
- Output current of 4.5A
- Efficiency of up to 89.5%
- Ripple noise of less than 1%
- Protection against overvoltage, undervoltage, overcurrent, and short circuit
- Compact and reliable design
check out : Mornsun LM100-23B15 AC/DC 100W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-23B24 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power | 108W |
| Input voltage | 85-305VAC, 120-431VDC |
| Output voltage | 24V |
| Output current | 4.5A |
| Efficiency | up to 89.5% |
| Ripple noise | less than 1% |
| Dimensions | 120 x 80 x 45mm |
| Weight | 0.9kg |
