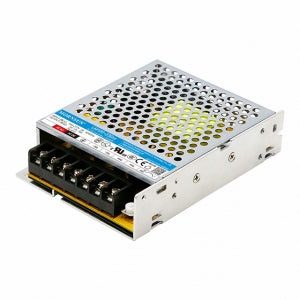

Mornsun LM100-23B15 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-23B15 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Regular price
Rs. 1,960
Regular price
Rs. 2,678
Sale price
Rs. 1,960
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-23B15 AC/DC 100W Enclosed Switching Power Supply
LM100-23B15 is a 15V, 105W enclosed AC/DC converter from Mornsun. It has a wide input voltage range of 85 to 305VAC or 120 to 431VDC, making it suitable for use in a variety of applications. The converter is also protected against overvoltage, overcurrent, and short circuit, ensuring safe operation.
Features:
- 15V, 105W output
- Wide input voltage range: 85 to 305VAC or 120 to 431VDC
- Overvoltage, overcurrent, and short circuit protection
- Enclosed housing for safety and protection
- Built-in thermal shutdown
- Ripple and noise suppression
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-23B15 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Output voltage | 15V |
| Output current | 7.0A |
| Output power | 105W |
| Input voltage | 85 to 305VAC or 120 to 431VDC |
| Efficiency | 90% |
| Ripple and noise suppression | <3% |
| Dimensions | 170 x 100 x 45mm |
| Weight | 1.2kg |
