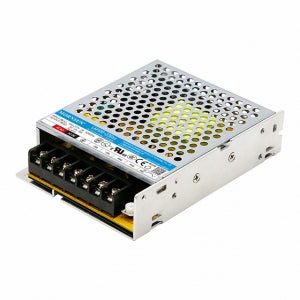

Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply
The LM100-23B12 is a 12V, 102W enclosed AC-DC switching power supply from Mornsun. It features a universal AC input of 85-305VAC, a DC input of 120-430VDC, and an output of 12V at 8.5A. The power supply has an efficiency of 87% and a maximum isolation voltage of 4000VAC. It is also RoHS compliant.
Features:
- Universal AC input of 85-305VAC
- DC input of 120-430VDC
- Output of 12V at 8.5A
- Efficiency of 87%
- Maximum isolation voltage of 4000VAC
- RoHS compliant
check out : Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power | 102W |
| Input voltage | 85-305VAC |
| Output voltage | 12V |
| Output current | 8.5A |
| Efficiency | 87% |
| Isolation voltage | 4000VAC |
| Dimensions | 220 x 100 x 65mm |
| Weight | 1.2kg |
