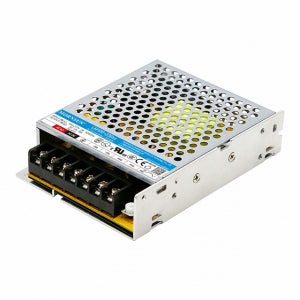

Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply
Out of stock
0
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 85 - 305VAC or 120 - 430VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- Low standby power consumption and high efficiency
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, and over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply
The LM100-23B36 is an enclosed AC/DC converter that provides a single output of 36V at up to 2.8A. It has an input voltage range of 85 to 305VAC or 120 to 430VDC, and an efficiency of up to 89.5%. The converter is also isolated from the input by 4000VAC, making it safe to use in hazardous environments.
Features:
- Single output of 36V at up to 2.8A
- Input voltage range of 85 to 305VAC or 120 to 430VDC
- Efficiency of up to 89.5%
- Isolated from the input by 4000VAC
- Suitable for use in hazardous environments
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM100-23B12 AC/DC 100W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM100-23B36 AC/DC 100W Enclosed Switching Power Supply
Specifications:
| Power | 100.8W |
| Input voltage | 85 to 305VAC or 120 to 430VDC |
| Output voltage | 36V |
| Output current | 2.8A |
| Efficiency | 89.5% |
| Isolation | 4000VAC |
| Dimensions | 130 x 90 x 55mm |
| Weight | 1.5kg |
