Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
s

Mornsun FREE SHIPPING BEST PRICE GUARANTEED

Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply - Buy Online in India

Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

Rs 1,790/-
- 27%
Rs 1,790/-
Rs 2,445/-
Save Rs 655/-
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery
SKU: DTIFPS0355
  • Universal input voltage of 165 - 264VAC or 200 - 370VDC
  • Accepts AC or DC input (dual-use of same terminal)
  • Operating ambient temperature range of -30℃ to +70℃
  • Low standby power consumption and high efficiency
  • High I/O isolation test voltage of up to 4000VAC
  • Low ripple and noise
  • Output short circuit, over-current, and over-voltage protection
  • Over-voltage class Ⅲ (designed to meet EN61558)
  • Operating up to 5000m altitude

This product is not available for store pickup. Apologies for the inconvenience caused

Banner

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
Rs 2,445/- Rs 1,790/-
Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

Rs 2,445/- Rs 1,790/-
Description

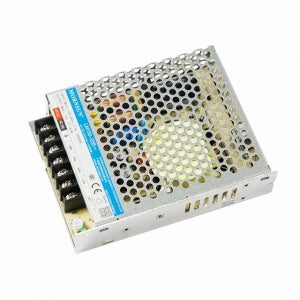

Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

The LM100-22B48 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range (264VAC) and is capable of delivering power in the range of 35-1500W. With its compact design and high cost-effectiveness, it is suitable for various industrial applications.

Features

  • Power (W): 110.4
  • Input Voltage (VAC): 165-264
  • Input Voltage (VDC): 200-370
  • Output Voltage (VDC): 48
  • Output Current (Iout): 2.3A
  • Efficiency (%): 91
  • Isolation: 4000VAC

check out : Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply

Note:

  • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
  • The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
  • All index testing methods in this datasheet are based on our company's corporate standards
  • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
  • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
  • The output voltage can be adjusted by the ADJ, clockwise to increase
  • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
  • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

check out : Mornsun LM100-22B05 AC/DC 100W Enclosed Switching Power Supply

Specifications

Package Includes:

1 x  Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply

Specifications:

Power (W) 110.4
Input Voltage (VAC) 165-264
Input Voltage (VDC) 200-370
Output Voltage (VDC) 48
Output Current (Iout) 2.3A
Efficiency (%) 91
Isolation 4000VAC
