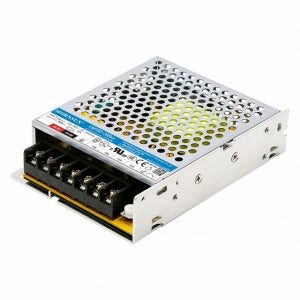

Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply
Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85 - 264VAC or 120 - 370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- OVC Ⅲ (designed to meet EN61558)
- Operating up to 5000m altitude
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply
The LM100-20B48 is an industrial power supply manufactured by Mornsun. It is a universal type power supply with a wide input voltage range of 85-264VAC and 120-370VDC. The power output is 110.4W with an output voltage of 48VDC and a current output of 2.3A. The power supply has an efficiency rating of 91% and provides an isolation of 4000VAC. It is designed to work with a global input voltage range.
Features
- Power (W): 110.4
- Input Voltage (VAC): 85-264
- Input Voltage (VDC): 120-370
- Output Voltage (VDC): 48
- Output Current (A): 2.3
- Efficiency (%): 91
check out : Mornsun LM100-22B48 AC/DC 100W Enclosed Switching Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LM100-20B24 AC/DC 100W Enclosed Switching Power Supply
Package Includes:
1 x Mornsun LM100-20B48 AC/DC 100W Enclosed Switching Power Supply
Specifications
| Power (W) | 110.4 |
| Vin (VAC) | 85-264 |
| Vin (VDC) | 120-370 |
| Vout (VDC) | 48 |
| Iout (A) | 2.3 |
| Efficiency (%) | 91 |
| Isolation (VAC) | 4000 |
