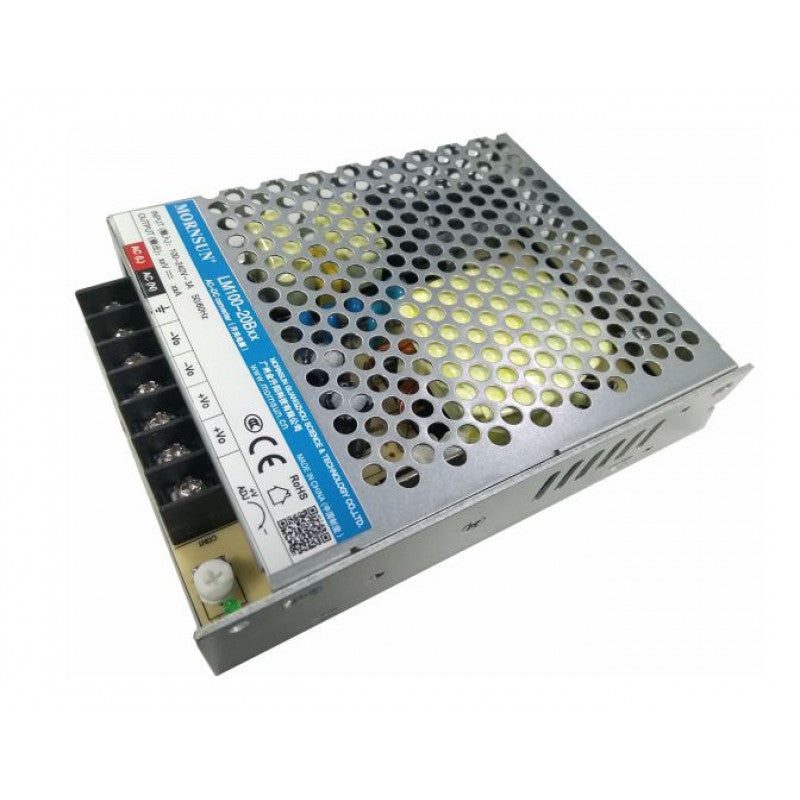

Mornsun LM100-20B12 AC/DC 100W Enclosed Switching Power Supply
The LM100-20B12 is a cost-effective, high-efficiency, and reliable enclosed AC-DC switching power supply from Mornsun. It features universal AC input and DC input voltage acceptance, as well as excellent EMC performance. It meets the IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards, and is widely used in industrial, LED, street light control, electricity, security, telecommunications, and smart home applications.
Features:
- Universal AC input: The LM100-20B12 can be powered by AC input voltages ranging from 85 to 264 VAC. This makes it suitable for use in a wide variety of countries and regions.
- DC input voltage acceptance: The LM100-20B12 can also be powered by DC input voltages ranging from 12 to 32 VDC. This gives you more flexibility in how you power the device.
- Excellent EMC performance: The LM100-20B12 meets the latest EMC standards, making it suitable for use in sensitive electronic equipment.
- Wide range of applications: The LM100-20B12 is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.
If you are looking for a cost-effective, high-efficiency, and reliable AC-DC switching power supply, the LM100-20B12 is a great option. It offers a wide range of features and is suitable for use in a variety of applications.
check out : Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25?, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5?/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
