• Universal 85 - 264VAC or 120 - 373VDC Input voltage

• Accepts AC or DC input (dual-use of same terminal)

• Operating ambient temperature range: -30℃ to +70℃

• Low standby power consumption, high efficiency

• High I/O isolation test voltage up to 4000VAC

• Low ripple & noise

• Output short circuit, over-current, over-voltage, Over-temperature protection

• Safety according to IEC/EN/UL62368, EN60335, GB4943

• Withstand 300VAC surge input for 5s

• Over-voltage class Ⅲ (designed to meet EN61558)

• Operating altitude up to 5000m

This product is not available for store pickup. Apologies for the inconvenience caused

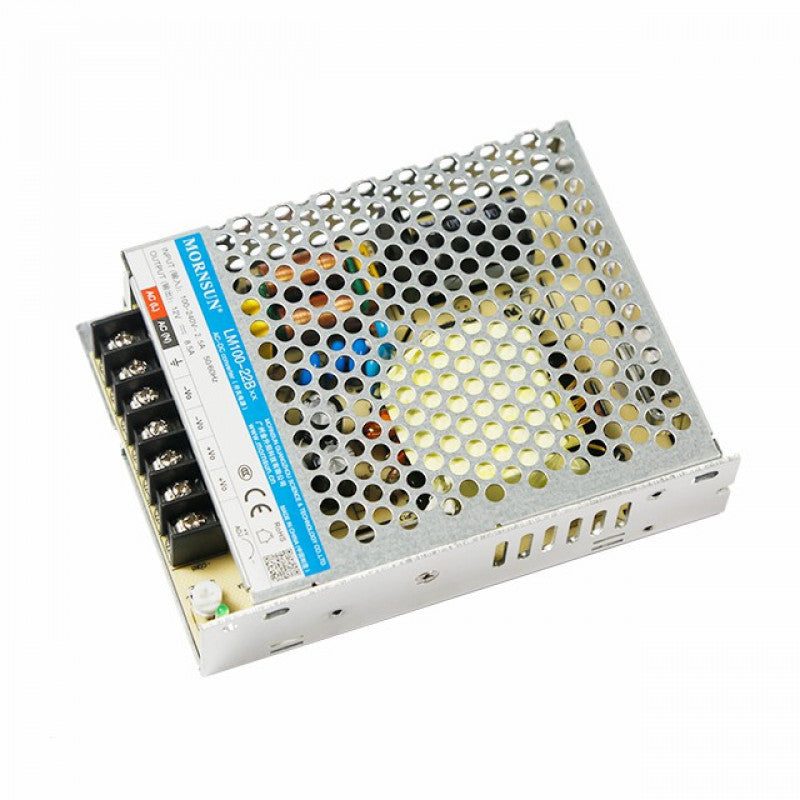

Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply

The LM100-22B24 is a cost-effective, reliable, and versatile AC-DC switching power supply from Mornsun. It features a universal AC input voltage range of 85-264VAC or 120-370VDC, and can accept DC input voltage as well. The LM100-22B24 also has low no load power consumption, high efficiency, and high reliability. It meets IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards, and is widely used in a variety of applications, including industrial, LED, street light control, electricity, security, telecommunications, and smart home.

Features

      • Universal AC input voltage range of 85-264VAC or 120-370VDC
      • Accepts DC input voltage as well
      • Low no load power consumption
      • High efficiency
      • High reliability
      • Meets IEC/EN61000-4, CISPR32/EN55032/IEC/UL/EN62368, EN60335, GB4943 standards
      • Widely used in a variety of applications

      check out : Mornsun LM100-20B15 AC/DC 100W Enclosed Switching Power Supply

      If you are looking for a reliable and versatile AC-DC switching power supply, the LM100-22B24 is a great option. It is cost-effective, has a wide range of features, and is widely used in a variety of applications.

      Note:

      • Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
      • The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
      • All index testing methods in this datasheet are based on our company's corporate standards
      • In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
      • The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
      • The output voltage can be adjusted by the ADJ, clockwise to increase
      • Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
      • The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment

      check out : Mornsun LM100-20B12 AC/DC 100W Enclosed Switching Power Supply

      Package Includes:

      1 x Mornsun LM100-22B24 108W AC/DC Enclosed Switching Single Output Power Supply

      Specifications:

      Type Enclosed Type Single Output
      Output Power 108W
      Series LM100-22B
      Part Number LM100-22B24
      Mechanical Form Enclosed
      IP Level  Non-Waterproof
      Output Voltage 24V
      Output Current 4.5A
