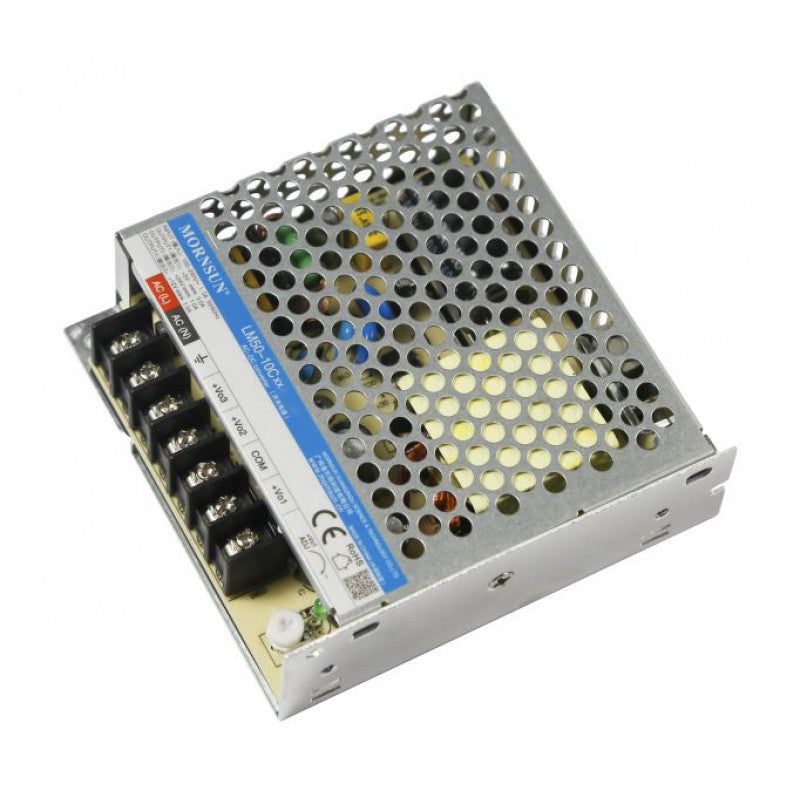

Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS
Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS
Out of stock
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85 - 264VAC or 120 - 370VDC
- Operating ambient temperature range: -30℃ to +70℃
- High efficiency, high reliability and long life
- LED indicator for power on
- Output short circuit, over-current, over-voltage protection
- High I/O isolation test voltage up to 3000VAC
- Withstand 5G vibration test
- Operating altitude up to 5000m
- Design refer to UL62368-1, EN60335-1, GB4943.1
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS
The LM50-10C051212-20 is a 50-watt AC/DC enclosed switching power supply with three output versions. It can independently supply three different loads in the system, and it can be used in harsh working environments with an ambient temperature range of -30°C to +70°C. The power supply does not require a fan for cooling, which makes it ideal for use in noise-sensitive applications.
The LM50-10C051212-20 meets the requirements of the IEC61000 standard for EMC immunity and the CISPR32/EN55032 standard for emission, both without the need for any external components. This provides excellent EMC protection for the power supply and the devices it is powering.
The power supply also meets the IEC/EN/UL62368, EN60335, and GB4943 safety standards. It integrates a variety of protection features, including overvoltage protection, undervoltage protection, overcurrent protection, and short-circuit protection.
The LM50-10C051212-20 offers a high-performance to low-cost ratio, making it a good choice for a variety of industries, including industrial control equipment, instrumentation, and smart home and building equipment.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LM50-10C051212-20 AC/DC 50W Enclosed SMPS
Specifications:
Type | Enclosed Type Triple Output |
Output Power | 50W |
Series | LM50-10C |
Part Number | LM50-10C051212-20 |
Mechanical Form | Enclosed |
IP Level | Non-Waterproof |
Output Voltage | 5V, 12V, -12V |
Output Current | 4A, 2A, 0.5A |
