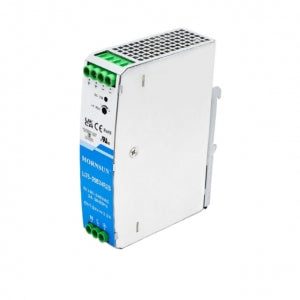

Mornsun LI75-20B48R2S AC/DC 75W Din-Rail Power Supply
Mornsun LI75-20B48R2S AC/DC 75W Din-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage of 90-264VAC or 120-370VDC
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range of -30℃ to +70℃
- High I/O isolation test voltage of up to 4000VAC
- Low ripple and noise
- Output short circuit, over-current, over-voltage, and over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Suitable for small chassis and narrow space installation
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI75-20B48R2S AC/DC 75W Din-Rail Power Supply
Sure. The LI75-20B48R2S is a 75W AC/DC power supply from Mornsun. It has a single phase, metal case, and is designed for industrial use. The power supply has a wide input voltage range of 90-264VAC or 120-370VDC, and can output a single voltage of 48VDC at 1.6A. The power supply also features overvoltage, overcurrent, and short circuit protection.
check out : Mornsun LI120-20B24R2S AC/DC 120W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI75-20B48R2S AC/DC 75W Din-Rail Power Supply
Specifications:
| Power | 75W |
| Input voltage | 90-264VAC or 120-370VDC |
| Output voltage | 48VDC |
| Output current | 1.6A |
| Isolation voltage | 4000VAC |
| Dimensions | 100 x 80 x 25mm |
| Weight | 0.6kg |
