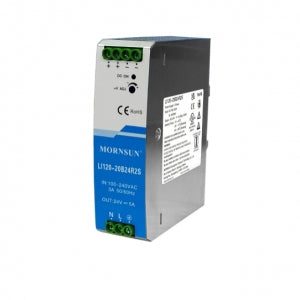

Mornsun LI120-20B24R2S AC/DC 120W DIN-Rail Power Supply
Mornsun LI120-20B24R2S AC/DC 120W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 5000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal 90 - 264VAC or 127 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃ to +60℃
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design: suitable for small chassis and narrow space installation
- Safety according to UL508
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI120-20B24R2S AC/DC 120W DIN-Rail Power Supply
The LI120-20B24R2S is a 120W AC/DC power supply with a 24V output voltage and 5A output current. It is a universal input power supply, meaning that it can be powered from a wide range of input voltages, including 90-264VAC or 127-370VDC. The LI120-20B24R2S is also equipped with a number of safety features, including short circuit protection, overcurrent protection, overvoltage protection, and overtemperature protection.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LIT240-26B24 AC/DC 240W DIN-Rail Power Supply
Package Includes:
1 x Mornsun LI120-20B24R2S AC/DC 120W DIN-Rail Power Supply
Specifications:
| Specification | Value |
|---|---|
| Power | 120W |
| Input voltage | 90-264VAC or 127-370VDC |
| Output voltage | 24V |
| Output current | 5A |
| Efficiency | >95% |
| Ripple & noise | <1% |
| Isolation voltage | 4000VAC |
| Operating temperature | -20℃ to +60℃ |
| Dimensions | 220 x 100 x 45mm |
| Weight | 1.2kg |
