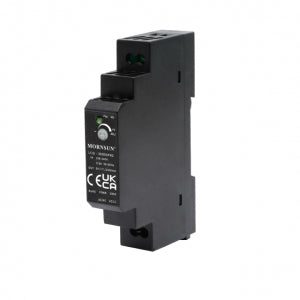

Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply
Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85-264VAC (277VAC available) or 120-370VDC (390VDC available)
- Dual-use AC or DC input
- Operating ambient temperature range: -40℃ to +70℃
- High I/O isolation voltage: up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- DIN rail TS35X7.5/ TS35X15 mountable
- Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply
The LI15-20B48PR2 is a cost-effective, energy efficient AC-DC converter from Mornsun. It features a global input range of 85-264VAC or 120-370VDC, and can output a single regulated voltage of 48VDC at up to 0.32A. The converter is housed in a compact plastic case and is compliant with international safety standards IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335. It also meets EMC standards IEC/EN61000-4, CISPR32/EN55032, UL62368 and EN62368.
Features:
- Global input range of 85-264VAC or 120-370VDC
- Single regulated output voltage of 48VDC
- Output current of up to 0.32A
- Compact plastic case
- Compliant with international safety standards IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335
- Meets EMC standards IEC/EN61000-4, CISPR32/EN55032, UL62368 and EN62368
check out : Mornsun LI15-20B05PR2 AC/DC 12W DIN-Rail Power Supply
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Also check the Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply. It is a 15W AC/DC converter designed for standard DIN-rail mounting. The power supply has a universal input voltage range of 90-264VAC and features a PFC function for power factor correction.
Package Includes:
1 x Mornsun LI15-20B48PR2 AC/DC 15W DIN-Rail Power Supply
Specifications
| Power | 15.4W |
| Input Voltage | 85-264VAC or 120-370VDC |
| Output Voltage | 48VDC |
| Output Current | 0.32A |
| Isolation | 4000VAC |
| Dimensions | 100 x 25 x 22mm (L x W x H) |
| Weight | 0.2kg |
