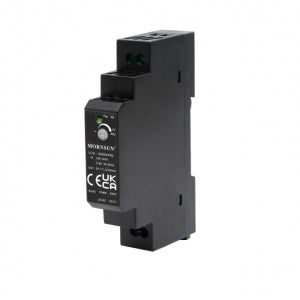

Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply
Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage: 85-264VAC (277VAC available) or 120-370VDC (390VDC available)
- Dual-use input terminal: accepts AC or DC input
- Operating temperature range: -40℃ to +70℃
- High I/O isolation voltage: up to 4000VAC
- Industrial-grade design
- OVC III (EN61558-1 standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- DIN rail mountable: TS35X7.5/ TS35X15
- Safety according to UL/IEC62368, IEC/EN61010, IEC60335, IEC/EN61558
This product is not available for store pickup. Apologies for the inconvenience caused
Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply
The LI15-20B15PR2 is a 15W AC/DC power supply from Mornsun. It is a cost-effective, energy-efficient solution for standard DIN-rail mounting. The product offers a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications meet IEC/EN61000-4, CISPR32/EN55032, UL62368, EN62368, IEC62368, IEC/EN61010, IEC/EN61558 and IEC60335. These lightweight AC/DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
Package Includes:
1 x Mornsun LI15-20B15PR2 AC/DC 15W DIN-Rail Power Supply
Specifications:
| Output power | 15W |
| Input voltage range | 85-264VAC or 120-370VDC |
| Output voltage | 15V |
| Output current | 1A |
| Dimensions | 100 x 22.5 x 45mm |
| Weight | 0.3kg |
| Operating temperature range | -40℃ to +70℃ |
| Storage temperature range | -40℃ to +85℃ |
