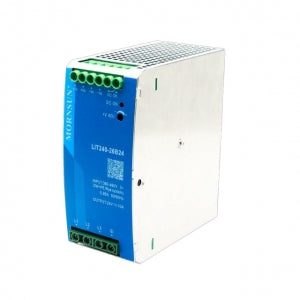

Mornsun LIT240-26B24 AC/DC 240W DIN-Rail Power Supply
Mornsun LIT240-26B24 AC/DC 240W DIN-Rail Power Supply
Out of stock
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 20000 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Universal input voltage range: 320-600VAC or 450-850VDC
- Three-phase input (two or three phases available)
- Operating ambient temperature range: -30°C to +70°C (60°C at full load)
- High I/O isolation voltage up to 4000VAC
- Low ripple and noise, high efficiency
- Suitable for operation at altitudes up to 5000m
- 130% peak load capability for 3 seconds
- Protection features for output short circuit, over-current, over-voltage, and over-temperature
- Designed to meet OVC III (EN62477/2000m standard)
- Safety compliance with UL/EN/IEC/BS EN62368, UL61010, EN62477, EN61558 standards
Mornsun LIT240-26B24 AC/DC 240W DIN-Rail Power Supply
The LIT240-26B24 is a 240W AC/DC power supply from Mornsun. It has a 3-phase metal case and is designed for use in industrial applications. The power supply has a wide input voltage range of 90-277VAC and can output a constant 24V DC at up to 10A. It also features overvoltage protection, overcurrent protection, overload protection, and overheating protection. The LIT240-26B24 is a reliable and versatile power supply that is ideal for a variety of industrial applications.
Note:
- Unless otherwise specified, parameters in this datasheet were measured under the conditions of Ta=25℃, humidity<75%RH with nominal input voltage and rated output load
- The room temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m
- All index testing methods in this datasheet are based on our company's corporate standards
- In order to improve the efficiency at high input voltage, there will be audible noise generated, but it does not affect product performance and reliability
- The out case needs to be connected to the earth ( )of system when the terminal equipment in operating
- The output voltage can be adjusted by the ADJ, clockwise to increase
- Our products shall be classified according to ISO14001 and related environmental laws and regulations and shall be handled by qualified units
- The power supply is considered a component which will be installed into the final equipment. All EMC tests should be confirmed with the final equipment
check out : Mornsun LITF480-26B24 AC/DC 480W DIN-Rail Power Supply
Package Includes:
1 x Mornsun LIT240-26B24 AC/DC 240W DIN-Rail Power Supply
Specifications:
| Specification | Value |
|---|---|
| Output Power | 240W |
| Input Voltage Range | 90-277VAC |
| Output Voltage | 24V DC |
| Output Current | 10A |
| Efficiency | 92% |
| Isolation Voltage | 4000VAC |
| Operating Temperature | -30℃ to +70℃ |
| Dimensions | 190 x 110 x 45mm |
| Weight | 1.5kg |
