Ml8511 Ultra Violet Sensor Module

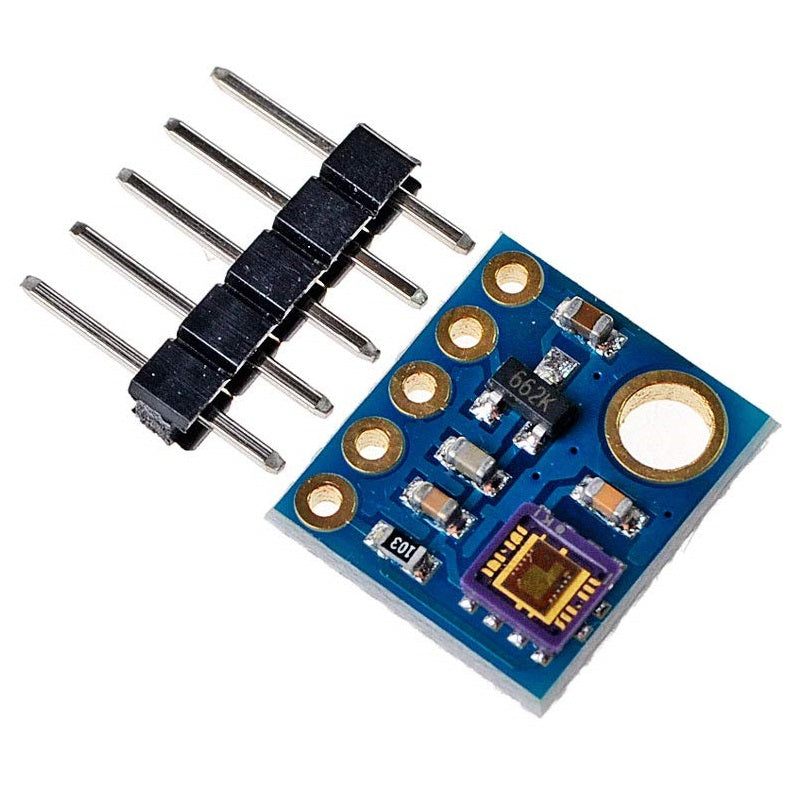

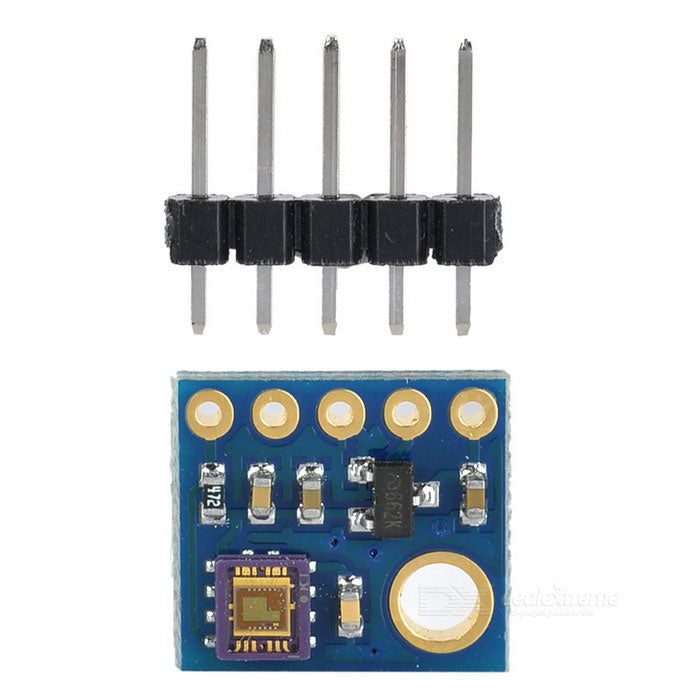

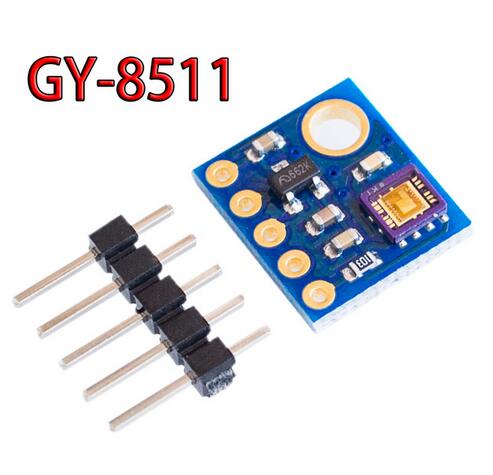

This is GYML8511 Analog Output Ultra-Violet Light Sensor Module. The GYML8511 module is easy to use the ultraviolet light sensor. The GYML8511 Sensor works by outputting an analog signal in relation to the amount of detected UV light.
This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.
This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs an analog voltage that is linearly related to the measured UV intensity (mW/cm2).
Simply connect the output of the module to an ADC channel of the microcontroller to read UV Light intensity.
Pinouts
- VIN: Power Connection (3V – 5V)
- 3.3V: Output of the onboard regulator
- GND: Ground
- OUT: Analog Output
- EN: Enable Input
Applications
- Sunburn detectors
- Controlled UV Exposure chambers
- UV Detectors for the safety of Humans, and animals.
1. How do I connect the ML8511 UV sensor to an Arduino?
To connect the ML8511 UV sensor, wire its VCC and GND pins to your Arduino's 3.3V and GND. Connect the EN pin to 3.3V to enable the sensor, and wire the OUT pin to an analog input. Your microcontroller will then read the sensor’s analog output voltage to determine the UV level.
2. How can I measure UV intensity with the ML8511 UV sensor?
The ML8511 outputs an analog voltage that is directly proportional to the amount of UV light it detects. You can use your microcontroller to read this voltage and apply a simple formula to convert it into a standard UV intensity value (mW/cm²). This allows your ultraviolet light sensor to provide quantifiable, real-time data.
3. How do I calibrate the ML8511 UV sensor for accurate readings?
To calibrate your sensor, you should compare its readings against a professional UV meter under a consistent source of UV light. You can then calculate a correction factor (an offset or multiplier) to apply in your code. This ensures your uv sensor provides accurate measurements in your specific application.
4. How can I display UV intensity readings from the ML8511 sensor?
After connecting the ML8511 to an Arduino, you can easily send the processed data to an LCD or OLED display. Your code will read the analog output, convert it to the UV Index, and then command the display to show the value. This provides a clear, visual readout from your ultraviolet sensor.
5. How do I use the ML8511 UV sensor in a weather monitoring system?
To integrate this sensor, connect the ML8511 UV light detector to your weather station's main microcontroller. Program the controller to periodically read the sensor output, convert it to the UV Index, and log it along with other weather data. This allows you to track and record daily UV levels.
1. What are the advantages of UV sensors?
The ML8511 UV sensor delivers precise, real-time monitoring of ultraviolet light intensity, making it ideal for tracking sun exposure and detecting harmful UV radiation. Its low power consumption ensures extended operation in battery-powered applications, while the analog output simplifies integration with microcontrollers. This makes it a reliable choice for environmental sensing and IoT projects.
2. What is the range of a UV sensor?
The ultraviolet light sensor detects wavelengths from 280nm to 390nm, covering both UV-A and UV-B spectrums critical for accurate sunlight analysis. This range enables effective measurement of UV radiation levels in outdoor and research environments. It’s especially useful in applications requiring detailed environmental monitoring data.
3. Which sensor is used to detect fire?
While some industrial systems use specialized ultraviolet sensors to detect flames through UV emission, the ML8511 is designed for environmental UV exposure monitoring. It is not intended for fire detection, but its sensitivity to UV light makes it suitable for research and safety applications involving UV radiation levels.
4. How do ultraviolet sensors work?
An ultraviolet sensor converts incoming UV light into a proportional analog voltage signal, which you can read using a microcontroller. The ML8511 UV sensor responds dynamically to changes in UV intensity, enabling real-time tracking. This functionality supports use in embedded projects and educational systems focused on environmental sensing.
5. Are UV sensors waterproof?
The ML8511 module is not inherently waterproof, so it requires protection in wet environments. You can enclose it in a transparent, UV-permeable housing to maintain measurement accuracy while shielding against moisture and dust. This approach enhances durability for long-term outdoor conditions.
