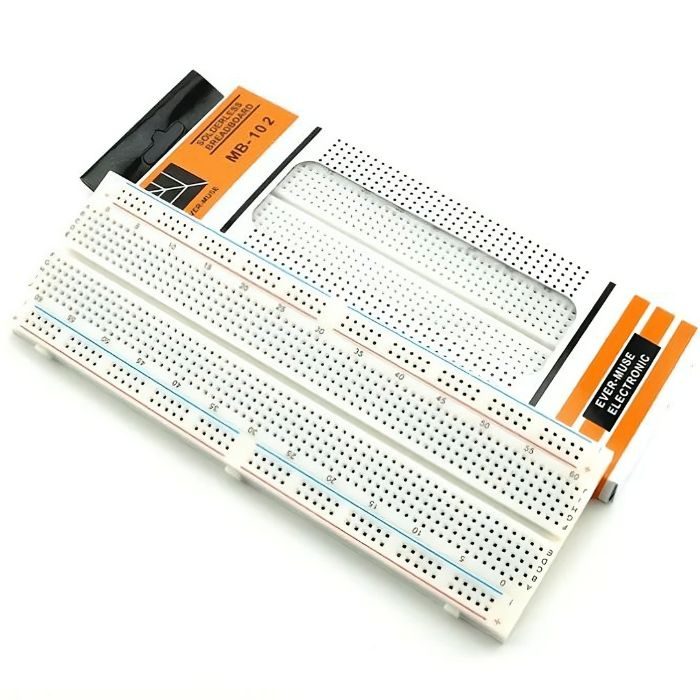

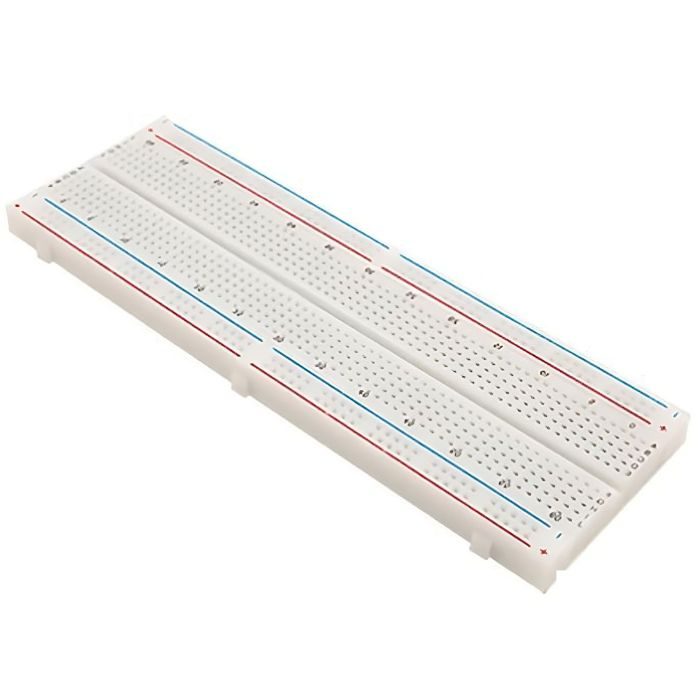

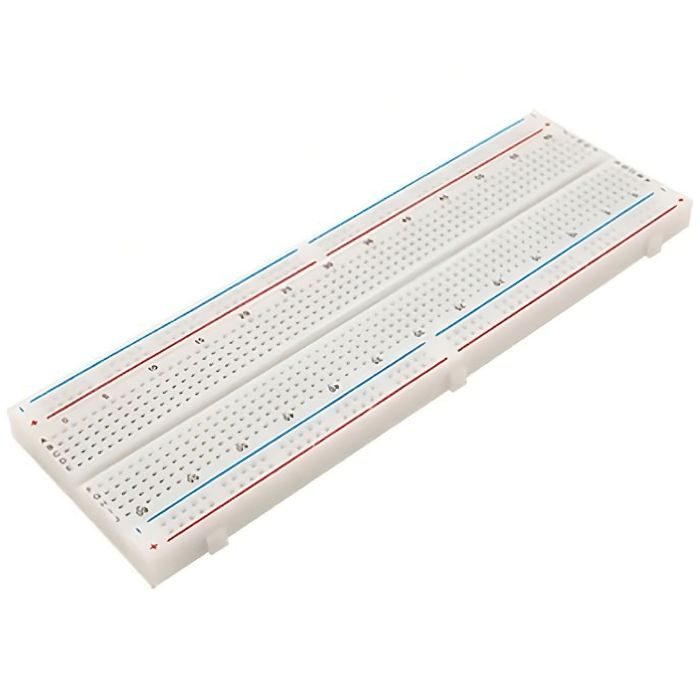

MB102 830 Points Breadboard (Solderless) - Robocraze

Package includes:

• 1 x MB102 830 Points Solderless Breadboard

Specifications:

What is the purpose of a breadboard?

A breadboard is used to create temporary circuits. It is beneficial to designers because it allows components to be easily removed and replaced. It is useful for someone who wants to build a circuit in order to demonstrate its operation and then reuse the components in another circuit.

What is solderless breadboard?

Solderless breadboards are used for prototyping circuits without the need for a Printed Circuit Board [PCB]. Breadboards can be used to test and evaluate new circuit designs that are in development, as well as to prototype changes to existing designs. Breadboards are available in a variety of sizes as single-piece parts.

What advantages do solderless breadboards serve?

Solderless breadboards enable designers to connect parts quickly and easily without soldering. This means that breadboards can be used to quickly create and modify circuits in order to prototype different circuit designs or test different electrical components.

What is a breadboard for Arduino?

A breadboard is a solderless construction base for developing electronic circuits and wiring for projects involving microcontroller boards such as Arduino.

What wire sizes does the MB102 accept?

The MB102 accepts a variety of wire sizes ranging from 20 to 29 AWG, providing flexibility for different types of circuits and projects.

Can I connect multiple MB102 breadboards together?

Yes. Multiple MB102 breadboards can be connected side by side to create a larger prototyping area. This is useful for projects that require more space for Arduino boards, sensors, modules, and jumper wire connections.

Does the MB102 breadboard come with a power supply module?

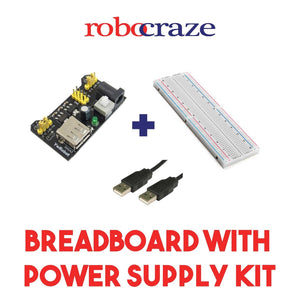

No. The MB102 830-point solderless breadboard does not include a power supply module. An MB102-compatible breadboard power supply module can be purchased separately to provide convenient 3.3V or 5V power to the breadboard.

What's the difference between an MB102 and a half-size breadboard?

The MB102 provides 830 connection points, giving you more space for larger or more complex projects. A half-size breadboard typically has around 400 connection points, making it more compact and suitable for smaller Arduino, sensor, and basic electronics projects.

How to use a breadboard?

To use a breadboard, insert component leads or jumper wires into the holes. The outer columns (power rails) are connected vertically to distribute power and ground. The inner rows (terminal strips) are connected horizontally in groups of five. By bridging components across the central divide, you can create temporary, solderless circuits for testing and prototyping.

What is the difference between a solderless breadboard and a PCB?

A solderless breadboard is used for temporary, reusable prototyping without soldering, making it ideal for testing ideas. A PCB (Printed Circuit Board) is permanent, requiring soldered connections for final, durable electronic products.

What are the dimensions of the MB102 breadboard?

The MB102 830 point breadboard measures about 16.5 x 5.5 cm. It has 630 tie points in the terminal strip and 200 across four power rails.

Can I run 12V through a breadboard?

Yes, a breadboard handles 12V at low current, typically up to about 1A per contact. Keep high current motor and battery wiring off the breadboard and use screw terminals instead.
