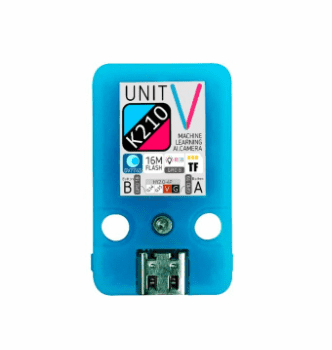

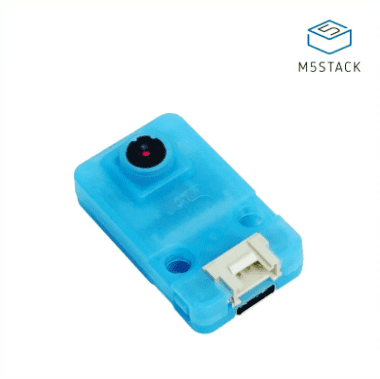

M5Stack UnitV AI Camera (OV7740)
UnitV(OV7740) is the new AI Camera powered by Kendryte K210, an edge computing system-on-chip(SoC) with a dual-core 64bit RISC-V CPU and state-of-art neural network processor.
UNIT-V AI Camera features its integration with machine vision capabilities, featuring the unprocessed acceptability to AI Visioning with high energy efficiency and low cost. We co-oped with Sipeed providing the MicroPython environment makes programming on UNIT-V easier.
Support MicroPython development environment, which makes the program code more concise when you use UNIT-V for project development. Equipped with an OV7740 image sensor, it is an ideal choice for a machine vision project.

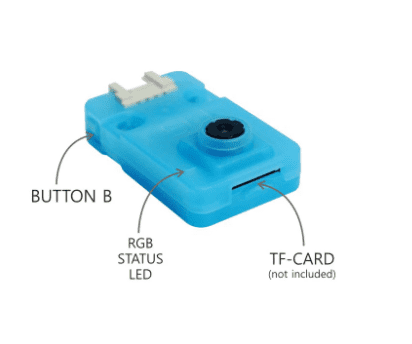

It is equipped with two programmable keys and an RGB LED indicator on the front for a convenient status display. At the bottom, there is an HY2.0*4P interface and a type-C interface compatible with grove, which is convenient to connect with the main controller. Support TF card to expand the memory, related material, and model file call more convenient.
On-board Hardware resources:
- Flash: 16M
- Camera :OV7740
- Button: button * 2
- Indicator light: WS2812 LED
- External storage: TF card/Micro SD
- Interface: HY2.0/compatible GROVE
Applications:
- Face recognition/detection
- Object detection/classification
- Obtaining the size and coordinates of the target in real-time
- Obtaining the type of detected target in real-time
- Shape recognition
- Video recorder

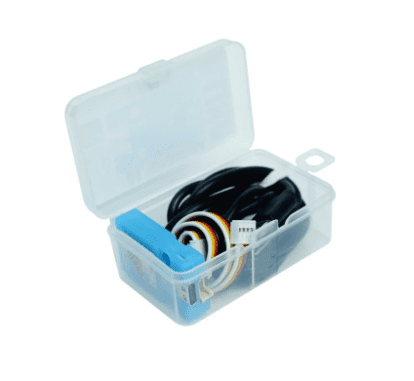

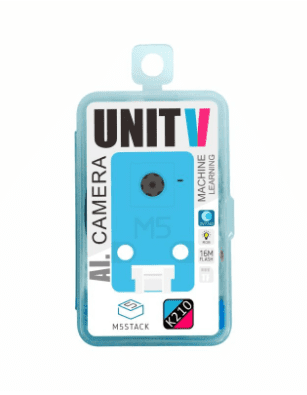

Package Includes:
1x UNIT-V(include 20cm 4P cable and USB-C cable)
Specifications:
| Kendryte K210 | Dual-Core 64-bit RISC-V RV64IMAFDC (RV64GC) CPU / 400Mhz(Normal) |
| SRAM | 8MiB |
| Flash | 16M |
| Input voltage | 5V @ 500mA |
| KPU Neural network parameter size | 5.5MiB - 5.9MiB |
| Interface | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| RGB LED | WS2812 x 1 |
| Button | x 2 |
| Image Sensor | OV7740(30W pixels) |
| FOV | 65deg |
| External storage | TF Card/Micro SD |
| Dimensions |
40 x 24 x 13mm |
| Weight | 45gm |
