M5Stack Stepmotor Module with MEGA328P (DRV8825) - Buy Online in India

M5Stack Stepmotor Module with MEGA328P (DRV8825)

Rs. 1,824
Rs. 2,168
Rs. 1,824
Save Rs. 344
(-16%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 0 left in stock
SKU: TIFM50013
  • 9-24V Power Input
  • 3-way stepper motors (X, Y, Z)
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze
M5Stack Stepmotor Module with MEGA328P (DRV8825)
Rs. 2,168 Rs. 1,824
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze
M5Stack Stepmotor Module with MEGA328P (DRV8825) – Stepper motor driver module with DRV8825. -Motor Driver -Robocraze

M5Stack Stepmotor Module with MEGA328P (DRV8825)

Rs. 2,168 Rs. 1,824
Description

M5Stack Stepmotor Module with MEGA328P (DRV8825)

STEPMOTOR is used for stepper motor control. It is perfect for any motion project as it can drive up to 3 Stepper motors with GRBL control.

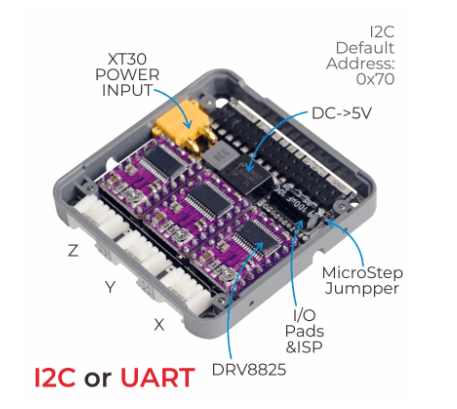

It is built with MEGA328P has been flashed GRBL firmware. The module communicates with M5Core via I2C(0x70)

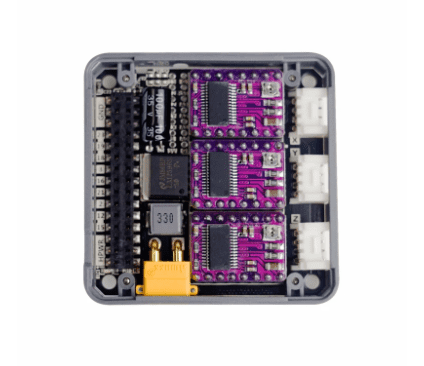

Integrated 3 DRV8825, a simple but very powerful board that can control one bipolar stepper motor at a time and allows micro-stepping up to 1/32 of a step.

Applications:

  • DIY 3D Printer
  • Simple Robot Arm

Also check M5Stack Development Board Watch Kit (Excluding Core). The kit is designed for the M5Core series and has a sophisticated look. It also has a 700mAh lithium battery

Specifications

Package Includes:

1x Step Motor Module
12V Power (Optional)
1x 5V FAN Module for heat dissipation (Optional)

Specifications:

DC Interface XT30
Motor Interface HY2.0-4P
Dimension 54.2 x 54.2 x 12.8mm
Weight 34gm
Additional Resources

The Firmware of inside MEGA328
DRV8825 Datasheet
M5 Stack Get Started - Quick Guide
M5 Stack Community
