LiPo Battery Voltage Tester

Regular price
Rs. 109
Sale price
Rs. 109
Regular price
Rs. 153
You save Rs. 44
29% off
You save Rs. 44
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • Used for 1-8S Lipo/Li-ion/LiMn/Li-Fe.
  • Voltage detection precision: +_0.01V.
  • Unit voltage display range: 0.5~4.5V.
  • 1S test mode voltage range: 4-15V Total voltage display range: 0.5~36V.
  • Low voltage alarm mode for 2-8S.
  • Alarm set value range:OFF~2.7~3.8V.

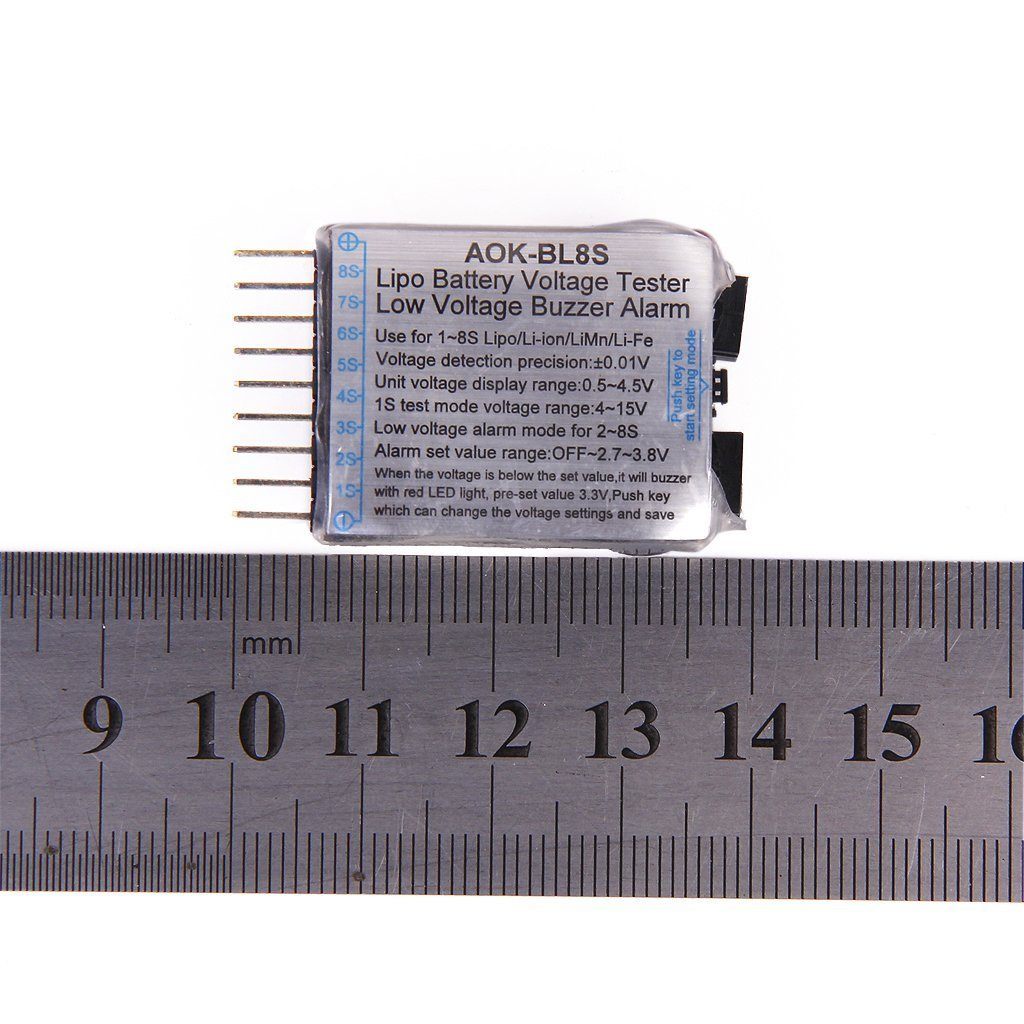

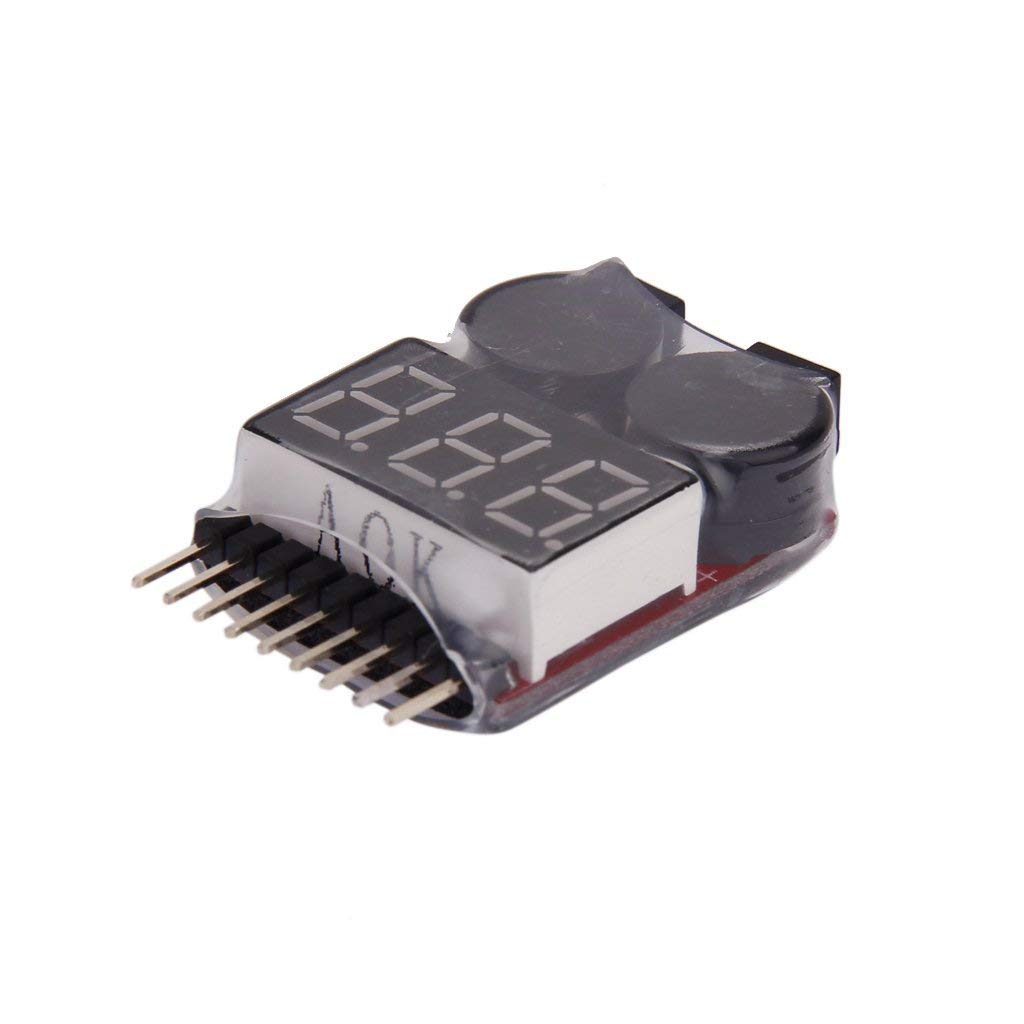

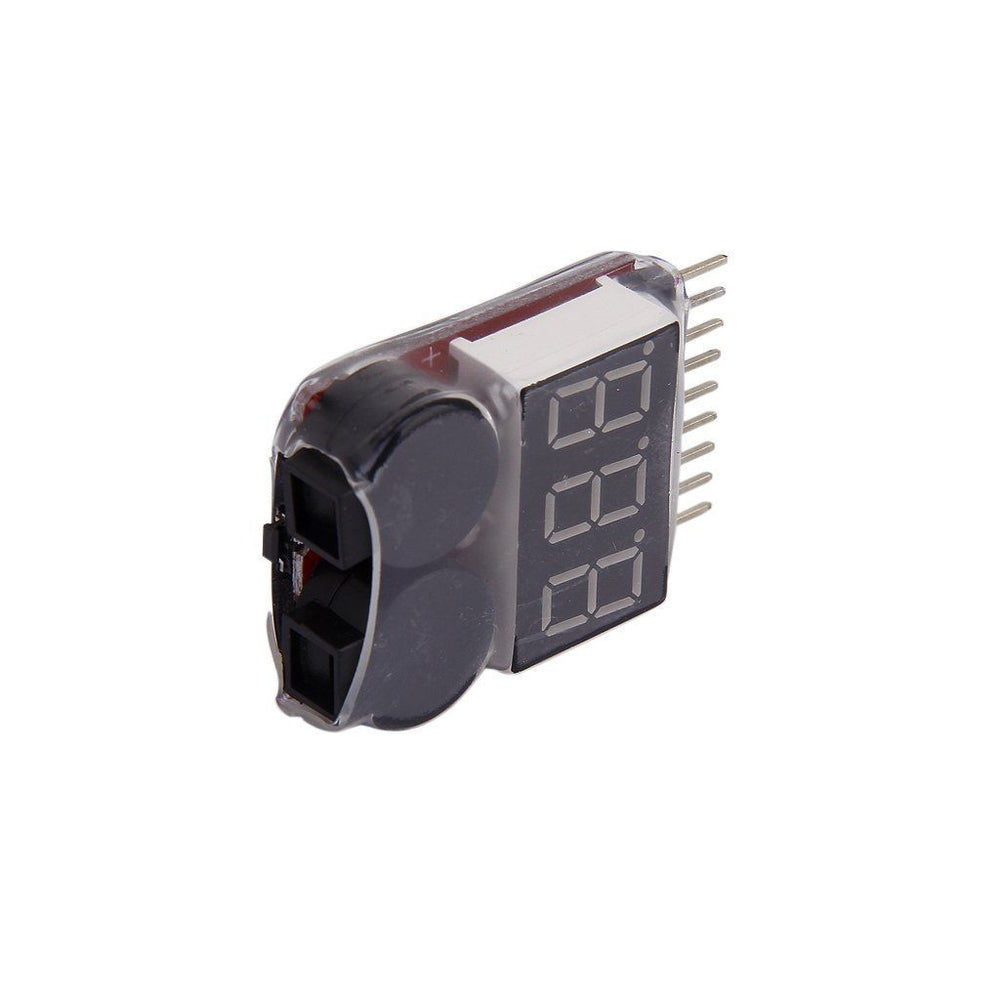

LiPo Battery Voltage Tester

The LiPo voltage tester is a low voltage alarm that is used to get the voltage from a lipo battery. It connects to the lipo battery's balance plug and outputs the voltage of the induvidual cells and the total voltage of the battery pack.

The LiPo battery voltage tester is integrated with an on board alarm that beeps when the battery voltage gets low.  The alarm is small and lightweight and is designed to be used in DIY quadcopters and drones. Using this alarm you can stop draining the lipo battery completely.

Package Includes:

  • 1 x LiPo Battery Voltage Tester

Features of the LiPo Battery Voltage Tester

Device Voltage Tester
Used for LiPo Battery
Voltage Detection Precision +/- 0.01V
Total Voltage Display Range 0.5~36V
Low voltage alarm mode 2-8S
1S Test Mode Voltage Range 3.7~30V
Size 4*2.5*1cm
Weight 10 grams



1.How do you check voltage on a Li-po battery?

  • There are several methods that you can use to check the voltage of a lithium-polymer (LiPo) battery. Here are a few options:
    • Use a multimeter: A multimeter is a device that can measure electrical properties, such as voltage, current, and resistance. To check the voltage of a LiPo battery using a multimeter, set the multimeter to the appropriate voltage range and touch the probes to the positive and negative terminals of the battery. The multimeter will display the voltage of the battery in volts.
    • Use a LiPo battery checker: A LiPo battery checker is a specialized device that is specifically designed to check the voltage of LiPo batteries. To use a LiPo battery checker, simply connect the battery to the checker using the appropriate connectors, and the checker will display the voltage of the battery in volts.
    • Use a voltage indicator: Some LiPo batteries come with built-in voltage indicators that allow you to check the voltage of the battery without using an external device. To use a built-in voltage indicator, simply turn on the indicator and read the voltage displayed on the screen.

2.What voltage is bad for battery?

  • The voltage of a battery can indicates its state of charge and overall health. In general, a battery is considered to be in a good state of charge when its voltage is within a certain range. For most types of batteries, including lithium-polymer (LiPo) batteries, a voltage that is too low or too high can be harmful to the battery and may indicate that the battery is in a bad state of charge.
  • For LiPo batteries, a voltage that is too low, also known as undervoltage, can occur when the battery is discharged below its minimum safe voltage level. This can cause the battery to become damaged or degraded, and may reduce its overall performance and lifespan. A voltage that is too high, also known as overvoltage, can also cause damage to a LiPo battery, particularly if the battery is left in a charged state for an extended period of time.
  • It is important to monitor the voltage of a battery and ensure that it is within a safe range. For LiPo batteries, a safe voltage range is typically between 3.2 and 4.2 volts per cell. It is generally recommended to recharge a LiPo battery when its voltage falls below 3.2 volts per cell, and to avoid discharging the battery below this voltage level.

3.At what voltage is a 12v battery dead?

  • The voltage of a 12-volt battery can vary depending on its state of charge and the type of battery. In general, a 12-volt battery is considered to be fully charged when its voltage is around 12.6 volts, and it is considered to be fully discharged when its voltage falls below 11.9 volts. However, it is important to note that these values may vary slightly depending on the specific type of battery and the manufacturer's specifications. Some batteries may be considered fully discharged at a higher or lower voltage, and it is important to consult the manufacturer's specifications or a battery charging guide to determine the appropriate voltage range for a particular battery.
  • It is generally recommended to recharge a 12-volt battery when its voltage falls below 12.4 volts, as this can help to prevent damage to the battery and maintain its overall performance and lifespan. Discharging a battery below its minimum safe voltage level can cause the battery to become damaged or degraded and may reduce its overall performance and lifespan.

4.What is a good battery voltage number?

  • The voltage of a battery can indicate its state of charge and overall health. In general, a battery is considered to be in a good state of charge when its voltage is within a certain range. The appropriate voltage range for a battery can vary depending on the type of battery and the manufacturer's specifications.
  • For example, a fully charged lithium-polymer (LiPo) battery typically has a voltage of around 4.2 volts per cell. A LiPo battery is generally considered to be fully discharged when its voltage falls below 3.2 volts per cell. It is generally recommended to recharge a LiPo battery when its voltage falls below 3.2 volts per cell, as this can help to prevent damage to the battery and maintain its overall performance and lifespan. For lead-acid batteries, a fully charged battery typically has a voltage of around 12.6 volts. A lead-acid battery is generally considered to be fully discharged when its voltage falls below 12 volts. It is generally recommended to recharge a lead-acid battery when its voltage falls below 12.4 volts, as this can help to prevent damage to the battery and maintain its overall performance and lifespan.

5.How do I test a LiPo battery with a multimeter?

  • To test a lithium-polymer (LiPo) battery with a multimeter, you will need to follow these steps:
    • Gather your materials: You will need a multimeter, a LiPo battery, and a set of jumper wires.
    • Set the multimeter to the appropriate voltage range: Most multimeters have a voltage measurement range that goes up to 20 volts or higher. Set the multimeter to the appropriate voltage range for measuring the voltage of your LiPo battery.
    • Connect the multimeter to the LiPo battery: Use the jumper wires to connect the multimeter to the LiPo battery. Connect the positive lead of the multimeter to the positive terminal of the battery, and the negative lead of the multimeter to the negative terminal of the battery.
    • Measure the voltage of the LiPo battery: The multimeter will display the voltage of the LiPo battery in volts. Note the voltage of the battery and compare it to the manufacturer's specifications or a battery charging guide to determine the battery's state of charge and overall health.

6.Which battery is used in quadcopter?

  • Quadcopters, also known as drones, typically use lithium-polymer (LiPo) batteries as their power source. LiPo batteries are commonly used in drones and other small electronic devices because they are lightweight, have a high energy density, and are able to provide a high level of power output.
  • LiPo batteries are made up of several cells, each of which has a nominal voltage of around 3.7 volts. The number of cells in a LiPo battery determines its overall voltage. For example, a LiPo battery with two cells has a nominal voltage of around 7.4 volts, while a LiPo battery with three cells has a nominal voltage of around 11.1 volts.
