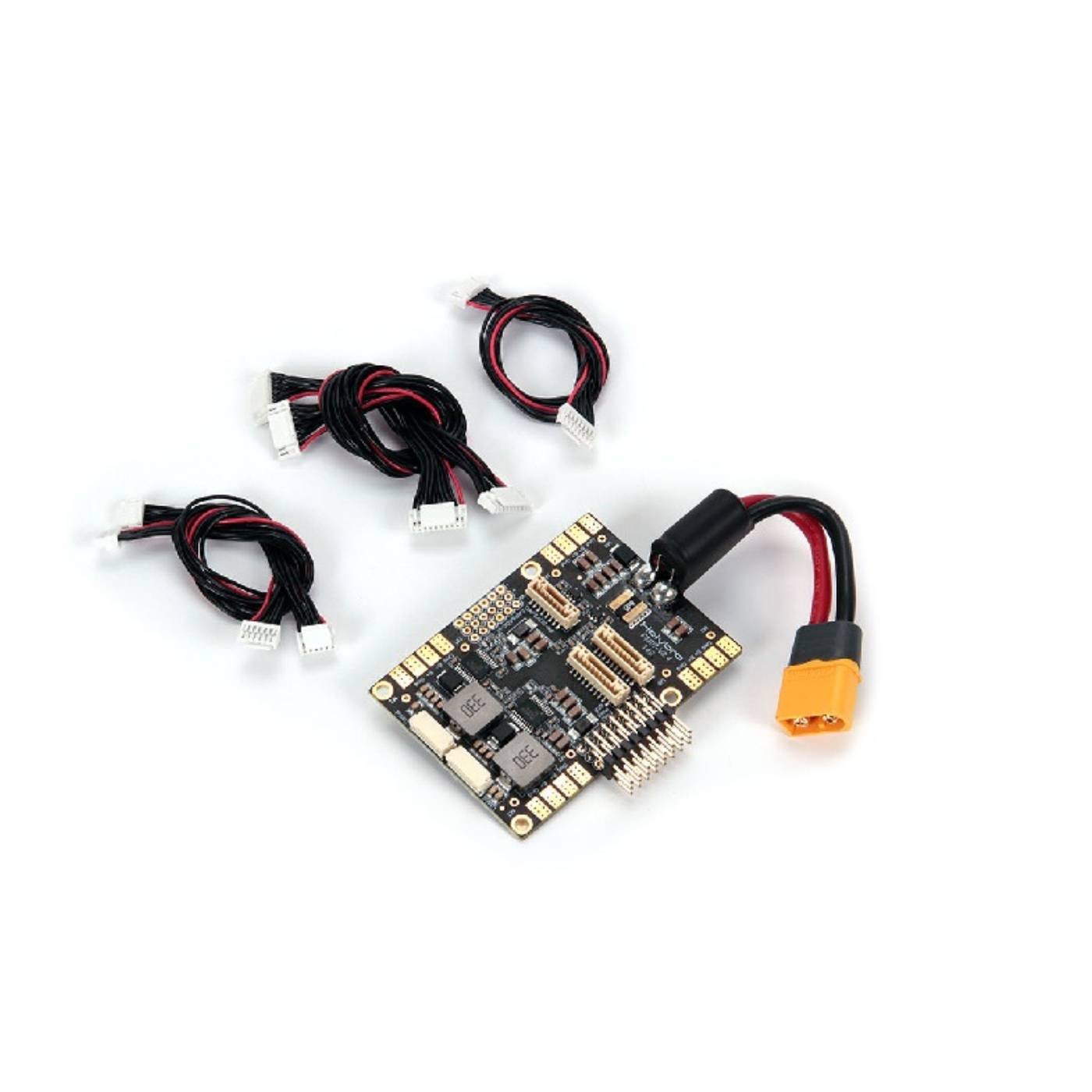

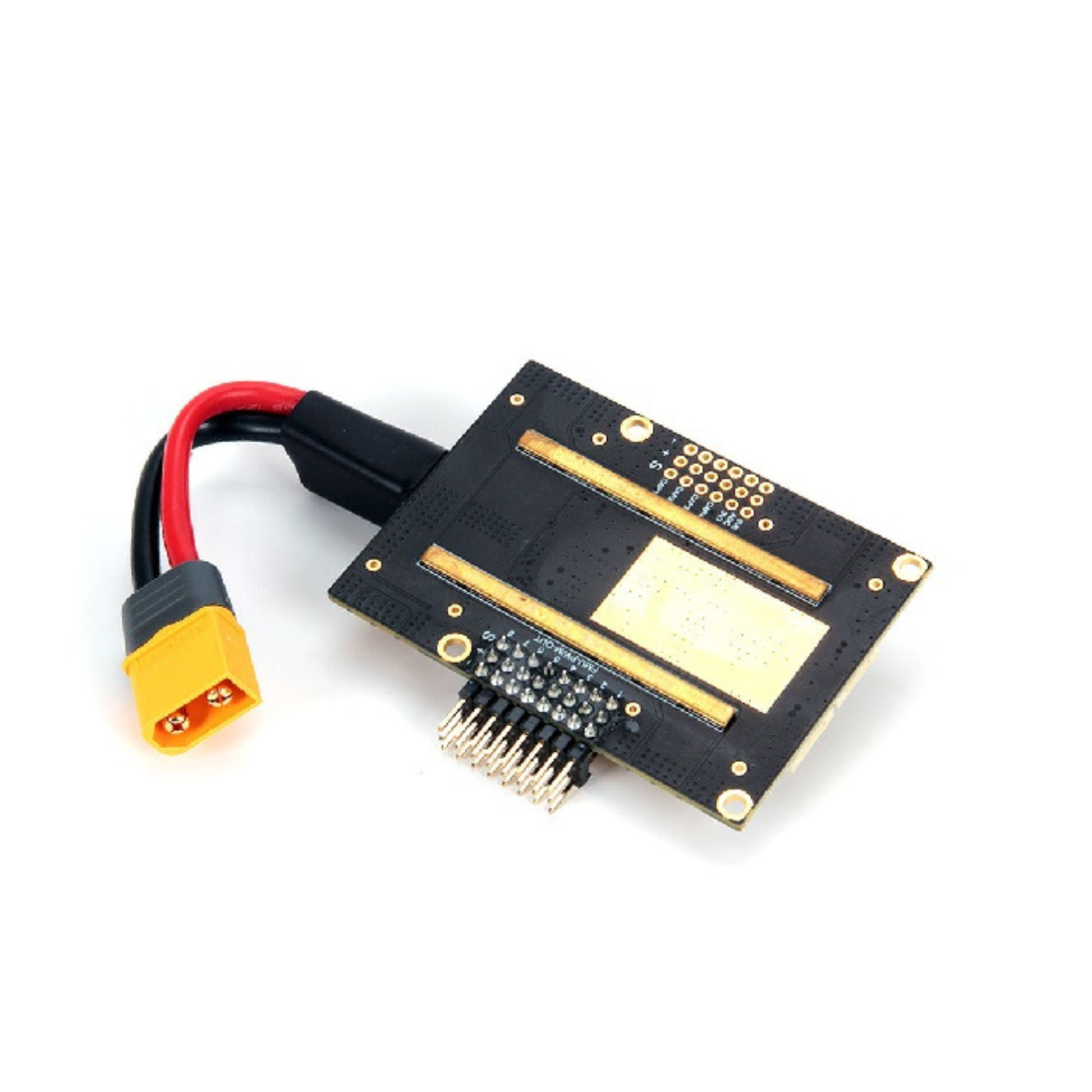

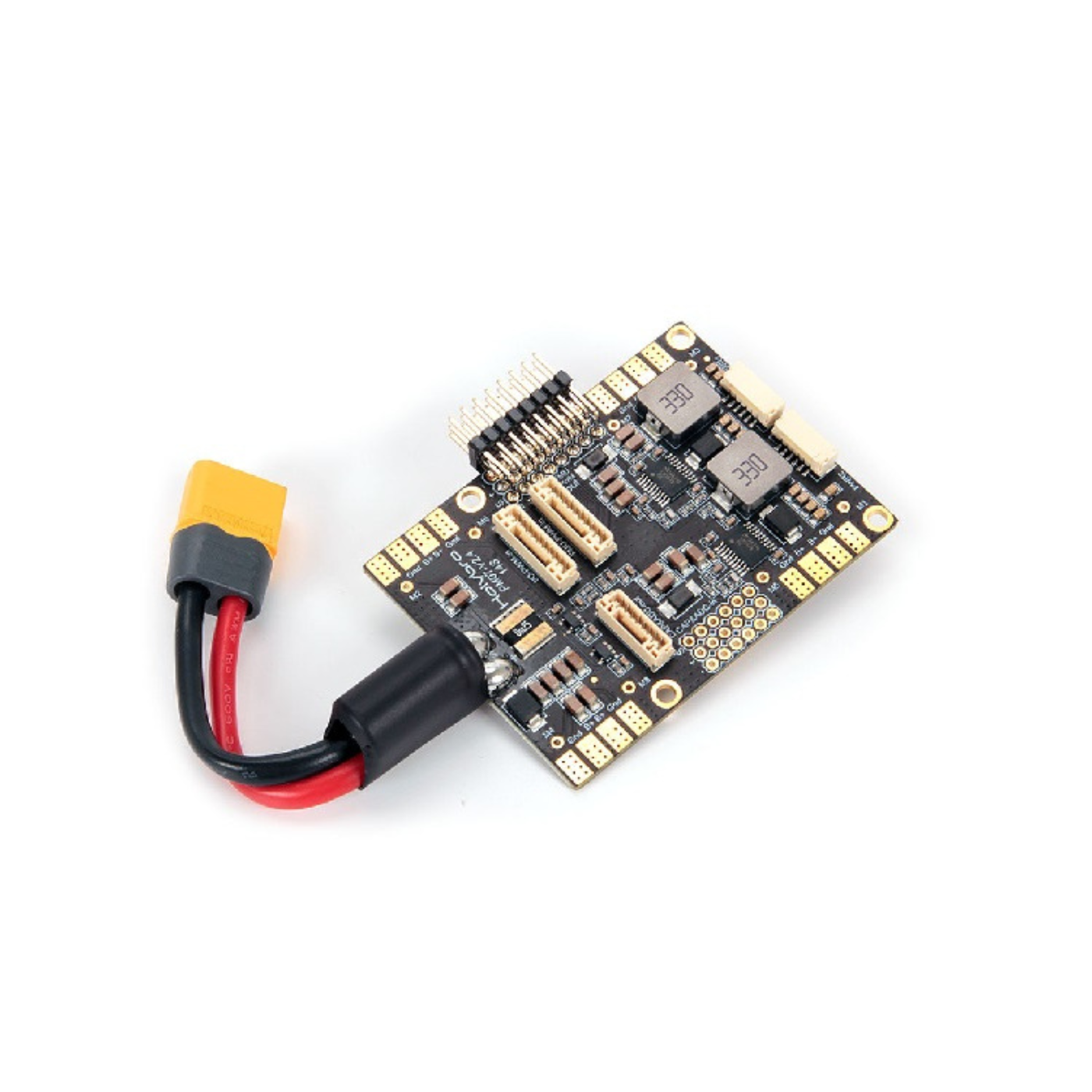

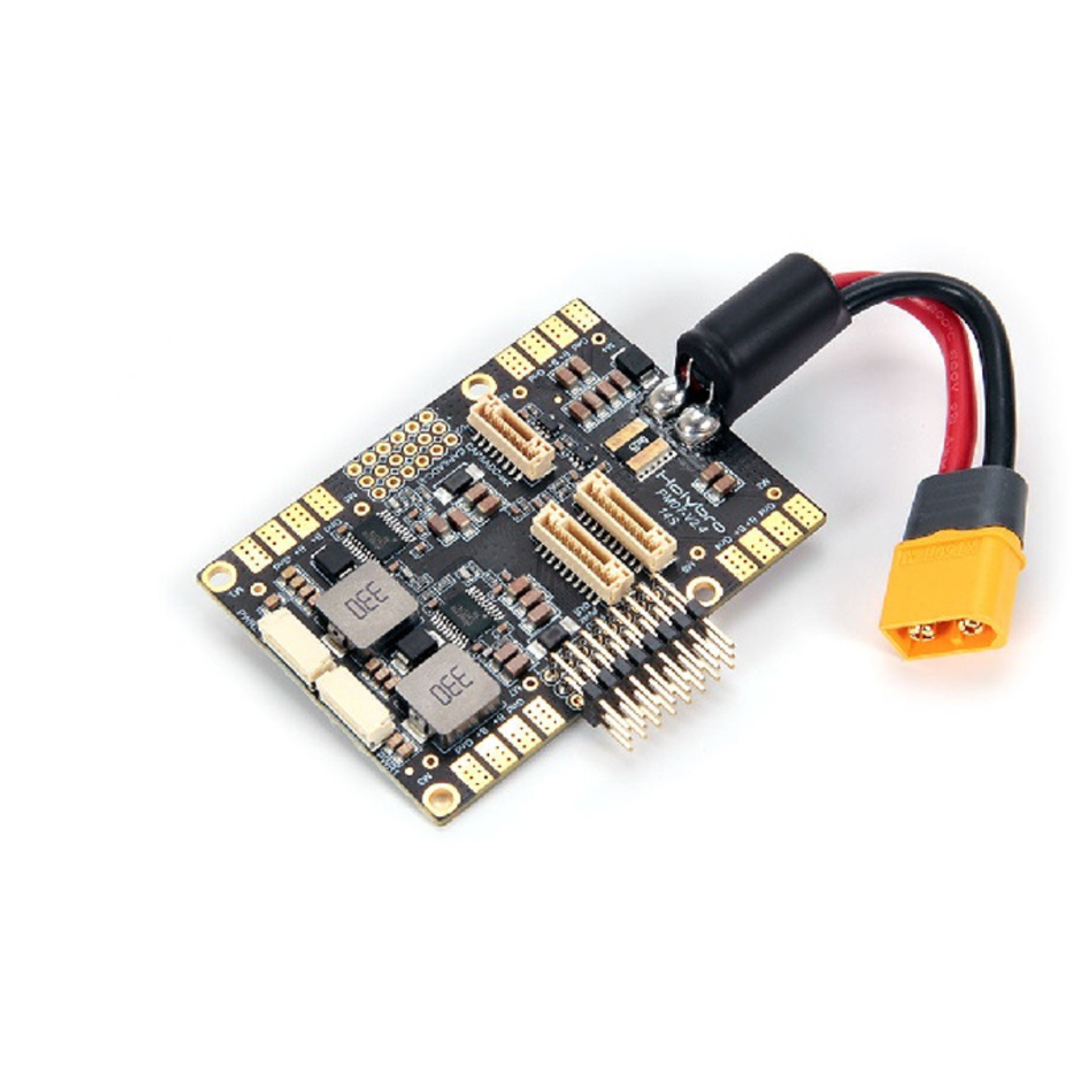

Holybro PM07 Power Module (14S)
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Holybro PM07 Power Module (14S) is a robust and reliable power module designed to deliver clean, regulated power to your drone’s flight controller and onboard electronics, supporting up to 14-cell LiPo battery configurations. Engineered for high-current UAV applications, this module provides accurate real-time voltage and current monitoring, helping ensure safe operation while protecting sensitive components from electrical faults. Its efficient power delivery and dependable performance make it an essential component for advanced drone builds and professional UAV platforms.
Built to simplify wiring and enhance system reliability, the Holybro PM07 Power Module integrates seamlessly with popular flight controllers, reducing clutter and improving overall power management. Whether you’re developing high-performance multirotor drones, autonomous platforms, or research UAVs, this power module offers consistent energy supply, precise monitoring, and improved safety for extended flight operations, giving you confidence in both performance and durability.
The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).
| Item Type | Module |
| Input Voltage | 2S – 14S |
| PCB Continuous Current Rating | 90 A |
| PCB Burst Current Rating | 140 A (< 60 s) |
| Output | DC 5.2 V, 3 A Max |
| Voltage Divider | 18.182 |
| Amperes per Volt | 36.364 |
| Dimensions (L × W × H) | 68 × 50 × 10 mm |
| Mounting Holes | 45 × 45 mm |
| Weight | 43.8 g |
