- This is F18468-70 NEO-7M 7M GPS Module with Compass for APM2.5 2.6 2.8
- NEO-7M GPS module with built-in compass for aircraft and quadcopter applications.
- Highly sensitive and energy-efficient module with 56 channels.
- Moulded plastic case provides excellent environmental protection.
- Superior GPS signal reception with an active circuitry ceramic patch antenna.
- Rechargeable backup battery for quick initialization.
- Preconfigured for compatibility with APM/Pixhawk systems and includes necessary cables.

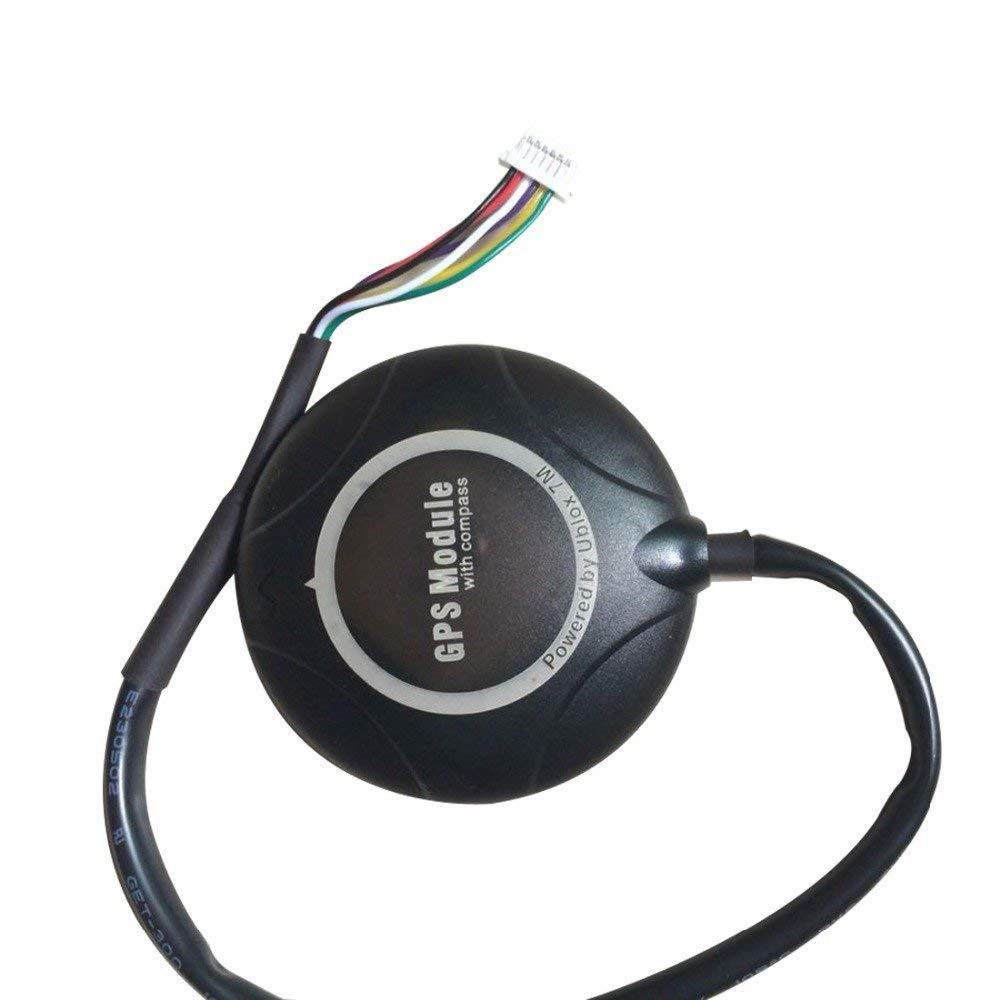

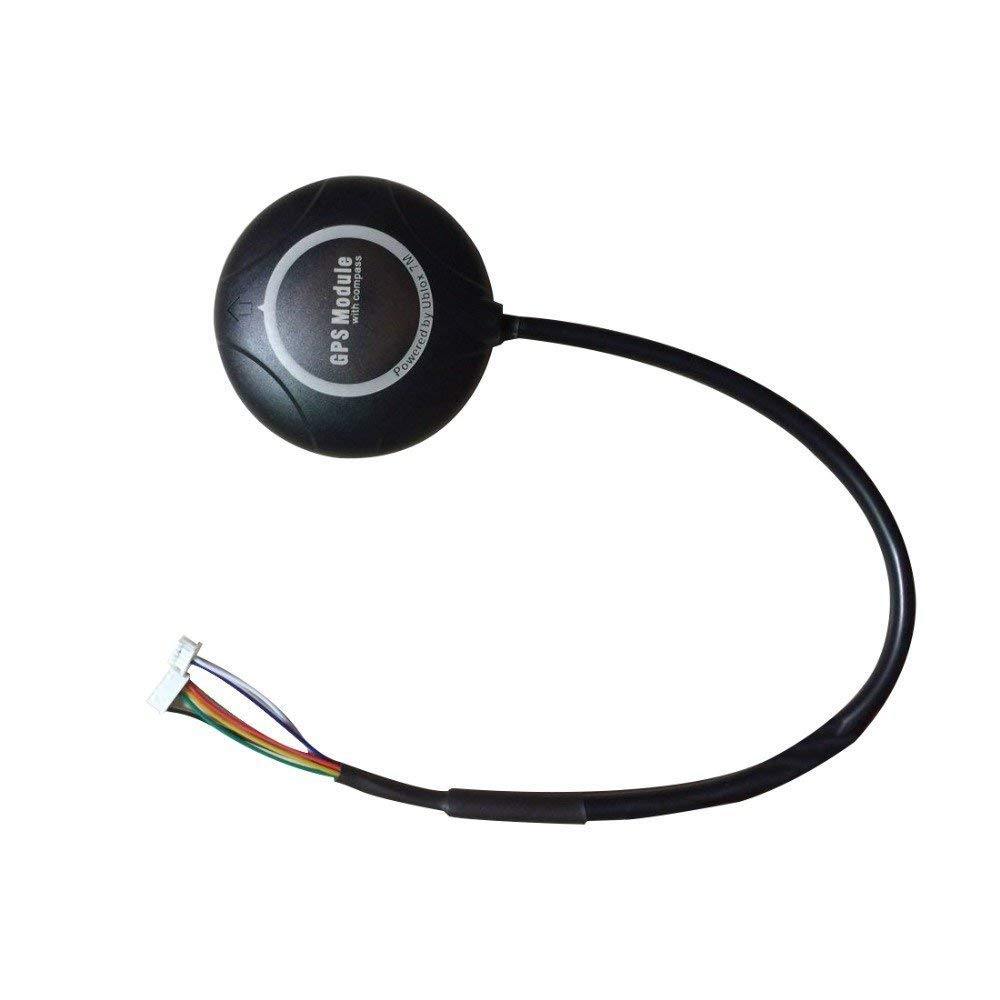

NEO-7M GPS Module with Compass
The NEO 7 series introduces a remarkable GPS module with a built-in compass, known as the NEO-7M. It is a highly sensitive and energy-efficient module, featuring 56 channels that deliver precise position updates at an impressive rate of 10Hz. Encased in moulded plastic, this GPS module offers exceptional protection against various environmental factors, making it an excellent choice for aircraft and quadcopter applications.
Equipped with an active circuitry ceramic patch antenna, the Neo 7M GPS module ensures superior GPS signal reception, surpassing the performance of its predecessors in the Neo 6 series. Moreover, it incorporates a rechargeable backup battery for HOT starts, allowing for quick and convenient initialization. Additionally, an I²C EEPROM is integrated into the module to store essential configuration settings.
Out of the box, this GPS module comes preconfigured to operate at a baud rate of 38400, specifically tailored for compatibility with APM/Pixhawk systems. The package includes two cables: a 6-pin connector designed for the GPS module itself, and a 4-pin connector dedicated to the i2c compass.
Features:
- Supports GPS, GLONASS, Galileo, and QZSS Multi-GNSS engine
- The maximum update rate of up to 10 Hz
- Moulded plastic case for protection against the elements
- Suitable for aircraft or quadcopter use
- High-sensitivity, low-power GPS module
- 56 channels for precise position updates at 10Hz
- Includes an HMC5883L digital compass
- Rechargeable backup battery for HOT starts
- I²C EEPROM to store configuration settings
- 0.6 meters accuracy
- Comes with a mounting stand and moulded plastic case
- Main chip: U-BLOX NEO-7M
- Supply voltage: 3.5 ~ 5.5V
- Navigation update rate: 5Hz
Applications:
- RC Vehicles
- Quadcopter
Package Includes:
- 1 x NEO-7M GPS Module with Compass
Specifications
| Model | NEO 7M GPS Module |
| Receiver Frequency | L1 [1575.42MHz] |
| Input Supply Voltage (VDC) | 3.5 ~ 5.5 |
| Main Chip | U-BLOX NEO-7M |
| Acceleration (g) | <4 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Dimensions | 60 x 11.5 (DxH) |
| Weight | 50 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
NEO M8N GPS Module with Compass for APM ARDUPILOT
Regular price
Rs. 2,525
Regular price
Rs. 3,499
Sale price
Rs. 2,525
Unit price
per
Incl. GST (No Hidden Charges)
Sale
SIM7670C 4G LM137 with Antenna(GSM 4G Foldable)- ADIY
Regular price
Rs. 1,614
Regular price
Rs. 1,999
Sale price
Rs. 1,614
Unit price
per
Incl. GST (No Hidden Charges)
Sale
TTGO T-Call V1.4 ESP32 SIM800L Wireless Communication Module
Regular price
Rs. 1,755
Regular price
Rs. 2,749
Sale price
Rs. 1,755
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1.How accurate is NEO-7M GPS module?
- The NEO-7M GPS module has a positioning accuracy of up to 2.5 meters when using GPS and up to 0.01 meters when using SBAS (Satellite-Based Augmentation System). The accuracy may vary depending on factors such as the number and quality of satellites in view, signal interference, and environmental conditions. However, in general, the NEO-7M GPS module provides a high level of accuracy and is suitable for a wide range of applications, including flight control, navigation, tracking, and mapping.
2.What is NEO-7M GPS module?
- The NEO-7M GPS module is a compact and high-performance GPS (Global Positioning System) module that provides accurate position and velocity data. It features a built-in 56-channel GPS engine that supports multiple satellite systems, including GPS, GLONASS, and QZSS. The NEO-7M GPS module is commonly used in a variety of applications, including flight control, navigation, tracking, and mapping. The module can communicate with a variety of devices and controllers through its serial interface and can be easily integrated into a wide range of projects and systems.
3.What is the primary use of the NEO-7M GPS Module with Compass?
- This module is used to provide high-precision GPS positioning and accurate heading information for drones and other RC models, enhancing their navigation capabilities.
4.What positioning systems does the NEO-7M support?
- The module supports both GPS and GLONASS dual positioning systems, offering improved search speed and reception.
5.How does the integrated compass benefit the module?
- The onboard HMC5883L digital compass provides accurate heading information, which is crucial for precise navigation and orientation of the drone.
