ESP32 CAM WiFi Module with OV3660 Camera Module 3MP
ESP32 CAM WiFi Module with OV3660 Camera Module 3MP
Quick Decision
- Best for Camera Projects
- WiFi Enabled
- Tiny Board
- Low Cost
Benefits
- 3MP Camera
- Wireless Capture
- Compact Board
- Low Power Use
Pros & Cons
- Built-In WiFi
- Camera Included
- Small Size
- Limited Pins
Use Cases
- Smart Camera
- Live Streaming
- Door Monitor
- IoT Vision
ESP32 CAM WiFi Module with OV3660 Camera Module 3MP
The ESP32 development board with Cam WiFi Module is a powerful and versatile solution for IoT enthusiasts and developers in India. Featuring a high-quality 3MP OV3660 camera, it delivers reliable performance for real-time image capture and monitoring applications. If you're exploring the ESP32 CAM OV2640/OV3660 camera module specifications, this module offers an excellent balance of performance, connectivity, and flexibility.
The built-in camera produces clear and detailed images, making it ideal for surveillance, automation, and smart monitoring systems. Recognized as the best ESP32 camera module for IoT surveillance and security projects, it supports WiFi, Bluetooth, and BLE Beacon for seamless wireless communication and remote control.
This ESP32 CAM development board is designed for durability and consistent operation across different environments. Whether you're a beginner or an experienced developer, its simple interface and remote firmware upgrade capability make it easy to use and maintain.
Looking for the best price for ESP32 Camera Module online?
At Robocraze, the ESP32 camera module price in India starts at ₹599, making it one of the most competitive options available. The ESP32 camera module price in India may vary based on stock availability and ongoing offers, but we ensure transparent pricing with no compromise on quality.
When you buy ESP32 CAM WiFi Bluetooth camera module online India, you get genuine products sourced from trusted manufacturers, ensuring durability, stable connectivity, and long-term performance. Compared to unverified alternatives, our modules deliver better reliability and technical support.
Read more: All about ESP32 Camera Module
Why Choose This ESP32 Camera Module?
Choosing the right camera module is crucial for IoT success. This device stands out as the best ESP32 camera module for IoT surveillance and security projects due to its compact design, wireless capabilities, and powerful processing.
If you're comparing options before you buy ESP32 CAM WiFi Bluetooth camera module online India, this module offers excellent value with features like remote access, low power consumption, and high-quality imaging. Combined with a competitive ESP32 camera module price in India, it is ideal for both learning and professional deployment.
Key Features:
- Equipped with a 3MP OV3660 camera.
- Supports WiFi, traditional Bluetooth, and BLE Beacon.
- Designed with a user-friendly interface.
- Allows for remote firmware upgrades.
- Compatible with an input voltage of 5V.
- Operates in a temperature range from -20°C to 85°C.
- Has 520KB of SRAM and 4MB of PSRAM.
- Default 32Mbit SPI Flash.
- Built following reliable ESP32 CAM OV2640/OV3660 camera module specifications
Check out our entire range of ESP Modules & Development Board
Pinout:
Applications:
- Home Smart Devices
- Industrial Wireless Control
- Wireless Monitoring
- QR wireless identification
- Wireless Positioning system signals
- IoT applications
Use Cases:
- IoT-based home surveillance systems
- Face recognition and AI-based monitoring
- Smart doorbell and access control systems
- Wireless video streaming applications
- Industrial monitoring and automation
- DIY electronics and embedded system projects
These applications highlight why it is considered the best ESP32 camera module for IoT surveillance and security projects.
ESP32 Camera Module Specifications Comparison:
| Feature | ESP32 Camera Module (OV2640) | ESP32 Dev Module (WROOM-32) | ESP32-CAM AI Thinker |
|---|---|---|---|
| Microcontroller | ESP32-S | ESP32-WROOM-32 | ESP32-S |
| Camera Sensor | OV2640 2MP | Not Available | OV2640 2MP |
| Max Resolution | 1600 × 1200 (UXGA) | Not Applicable | 1600 × 1200 (UXGA) |
| WiFi | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| Bluetooth | Bluetooth 4.2 + BLE | Bluetooth 4.2 + BLE | Bluetooth 4.2 + BLE |
| PSRAM | 4MB PSRAM | No PSRAM (Standard) | 4MB PSRAM |
| Flash Memory | 4MB | 4MB | 4MB |
| GPIO Pins Available | Limited (Shared with camera) | 30+ GPIO | Limited (Shared with camera) |
| MicroSD Card Slot | Yes | No | Yes |
| USB Interface | External FTDI Required | Built-in USB-to-Serial | External FTDI Required |
| Best Use Case | IoT Surveillance, Face Detection | General IoT & Embedded Projects | Smart Camera & AI Applications |
Guide to Making WiFi Security Camera with ESP32 CAM WIFI Module:
Package Includes:

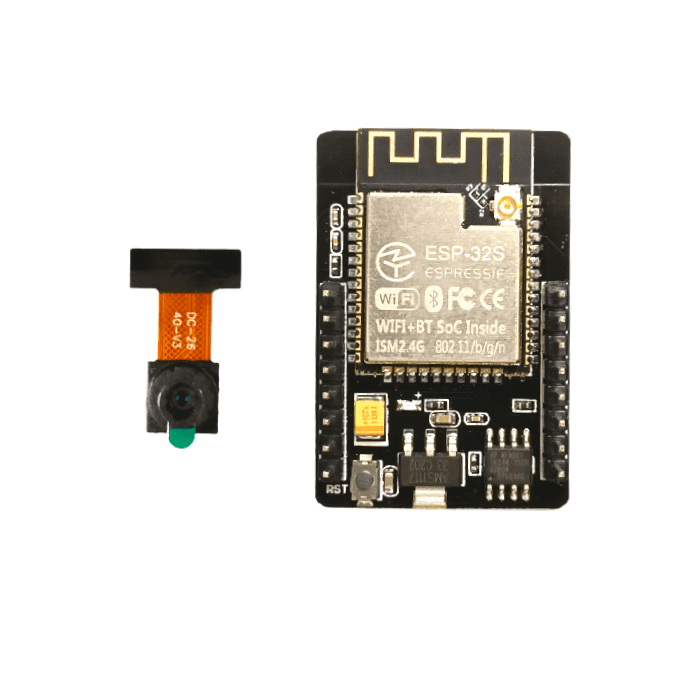

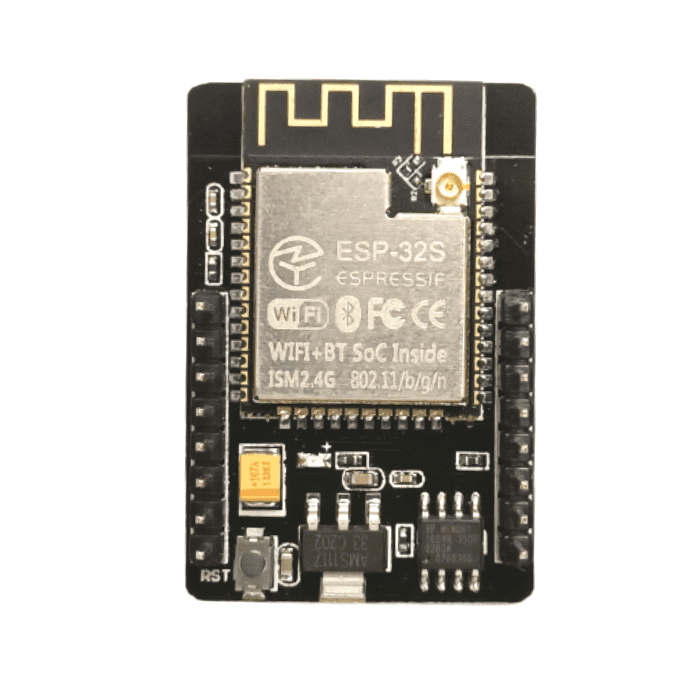

- 1 x ESP32 CAM WiFi Module.

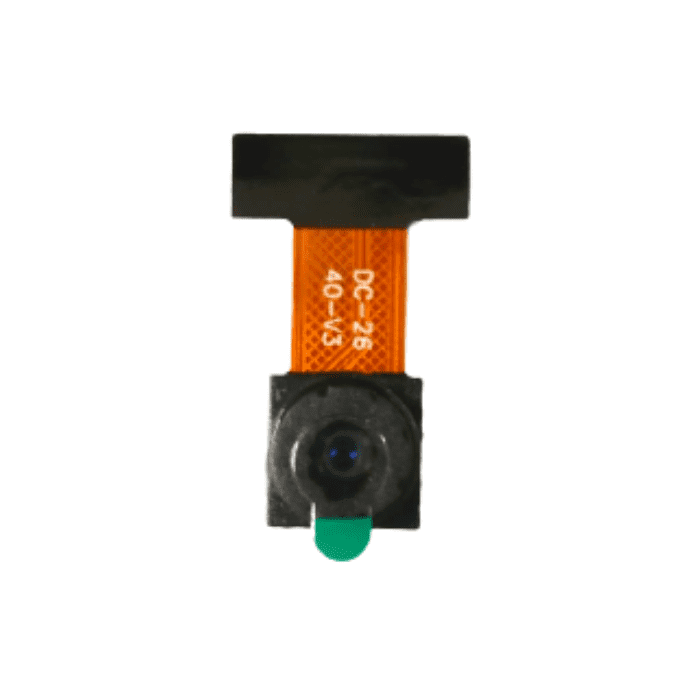

- 1 x OV3660 Camera Module 3MP.
Specifications:
| Input Voltage (Volt) | 5V |
| Operating Temperature (°C) | -20 ~ 85 |
| SPI Flash | Default 32Mbit |
| Bluetooth | Bluetooth 4.2 BR/EDR and BLE standards |
| RAM | 520KB SRAM + 4MB PSRAM |
| Wi-Fi | 802.11 b/g/n/ |
| Package Dimensions | 11 x 9 x 5cms |
| Weight | 50 grams |
1. How do I use this module?
- For getting started with this CAM Module, make the following connection between FTDI Module and the module. Connect the 5V & GND Pin of ESP32 to the 5V & GND of the FTDI Module. Connect the Rx to UOT and the Tx to UOR Pin in the same way. And, most importantly, the IO0 and GND Pins must be shorted together.
2. How do I know if my ESP32 cam is working?
- If your device has no or a poor Wi-Fi connection, the external antenna may be enabled. It should work fine if you connect an external antenna to the connector. Check that the antenna connector's jumper 0K resistor is in the correct position for the desired antenna.
3. Does it have Bluetooth?
- Yes, it is based on the ESP32-S module, so it shares the same specifications. It has the following features: 802.11b/g/n Wi-Fi. Bluetooth 4.2 with BLE
4. What is the ESP32 Cam Module?
- This is a WIFI+ Bluetooth dual-mode development board that uses PCB onboard antennas and cores based on ESP32 chips. It can work independently as a minimum system. ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with 2 high-performance 32-bit LX6 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor, etc.
5. What is the use of SD cards in the ESP32-CAM board?
- The camera board has a built-in SD card connector which can be used to connect a microSD card. We'll use this development board to take photos and save them to the MicroSD card. The photos taken will also be saved in the camera flash memory. This will assist us in determining the number of photographs taken.
6. How do I use it to take a picture?
- Type the camera IP Address into your browser. Then, to take a new photo, click "CAPTURE PHOTO" and wait a few seconds for the image to be saved in SPIFFS. The page will then update with the most recent saved photo if you press the "REFRESH PAGE" button.
7. Is the ESP32 Camera Module original and genuine?
- Yes, Robocraze ensures authentic products. If you're checking the ESP32 camera module price in India, always ensure you buy from trusted sources to guarantee quality and performance.
