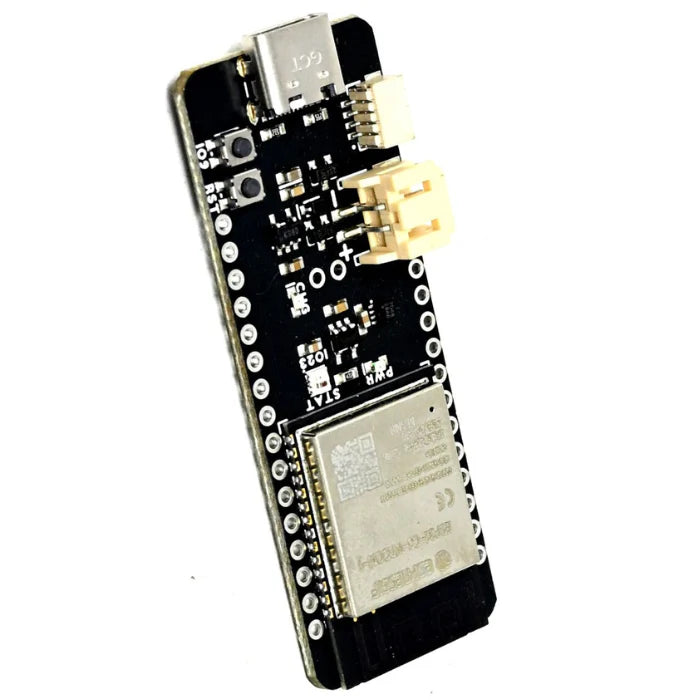

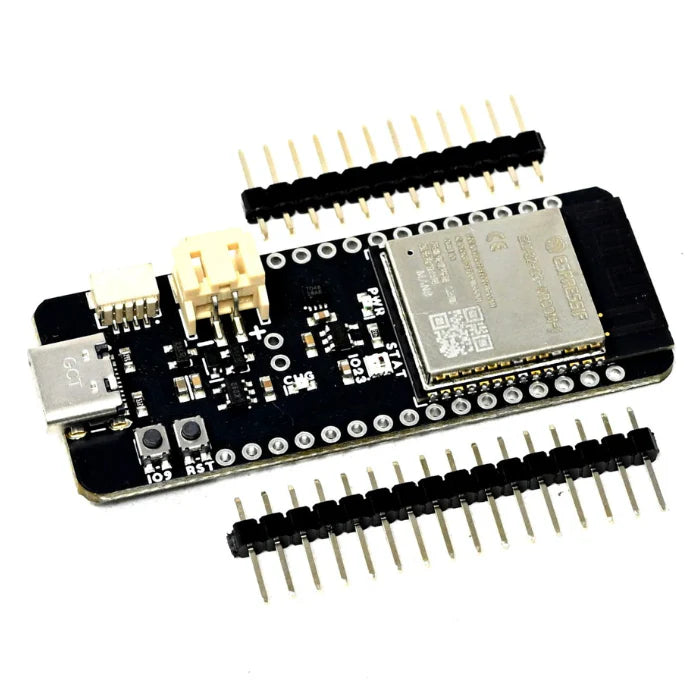

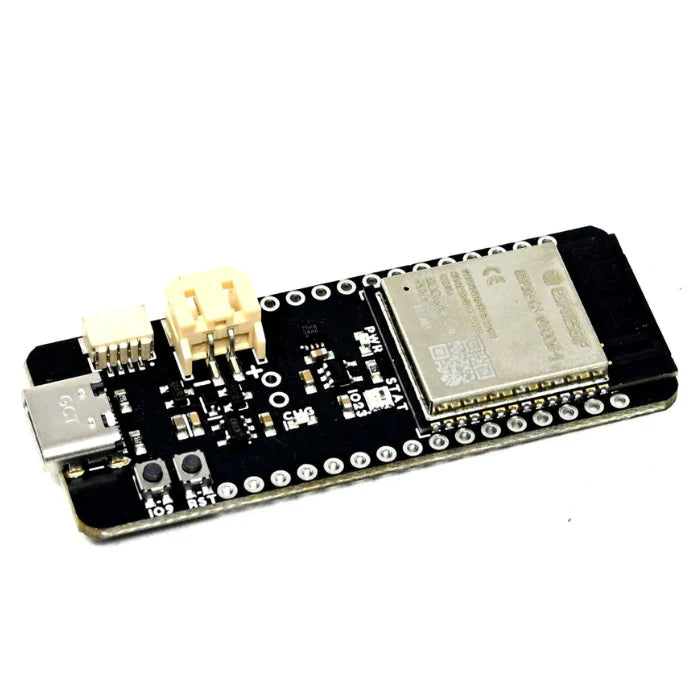

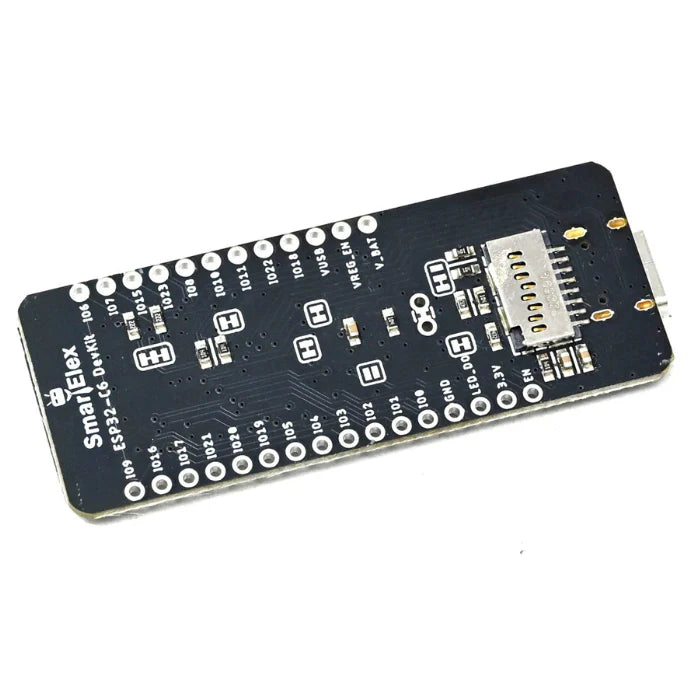

ESP32-C6-WROOM-1-N8 Development Board with Headers

The ESP32-C6-WROOM-1-N8 Development Board is a high-performance, general-purpose module designed for Wi-Fi, IEEE 802.15.4, and Bluetooth LE applications. Operating in the 2.4 GHz frequency band, it features a 1T1R configuration for efficient wireless communication. The module includes 4MB SPI flash and supports multiple interfaces, including SPI, UART, I2C, I2S, PWM, USB Serial, and JTAG debugging.

With a power supply range of 3.0 ~ 3.6V and a wide operating temperature of –40 to 105°C, it is designed for reliable performance in various environments. The ESP32-C6-WROOM-1-N8 is an excellent choice for applications in smart homes, industrial automation, healthcare, and consumer electronics, providing a rich set of peripherals and up to 23 GPIOs for enhanced functionality.

Features:

• Wireless Connectivity: Supports Wi-Fi, IEEE 802.15.4, and Bluetooth LE for versatile communication
• Operating Frequency: 2.4 GHz (2412 ~ 2484 MHz) with 1T1R configuration
• High Performance: Equipped with 4MB external SPI flash for enhanced storage
• Rich Peripheral Interfaces: Includes SPI, UART, I2C, I2S, PWM, USB Serial, JTAG, RMT, SDIO 2.0, and more
• Multiple GPIOs: Up to 23 GPIOs for flexible development and expansion
• Power Supply: Operates on 3.0 ~ 3.6V with a current draw of 0.5A
• Wide Operating Temperature: Ranges from –40 to 105°C, suitable for extreme conditions
• Industrial & Consumer Applications: Ideal for smart home devices, industrial automation, healthcare, and consumer electronics
• On-chip Debug Functionality: Supports JTAG debugging for efficient development
• Compact & Power-Efficient Design: Ensures reliable performance with low power consumption
