- The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack.
- Users can use the add modules to an existing device networking, or building a separate network controller.
- ESP8266 is high integration wireless SOCs, designed for space and power constrained mobile platform designers.
- It provides unsurpassed ability to embed Wi-Fi capabilities within other systems, or to function as a standalone application, with the lowest cost, and minimal space requirement.

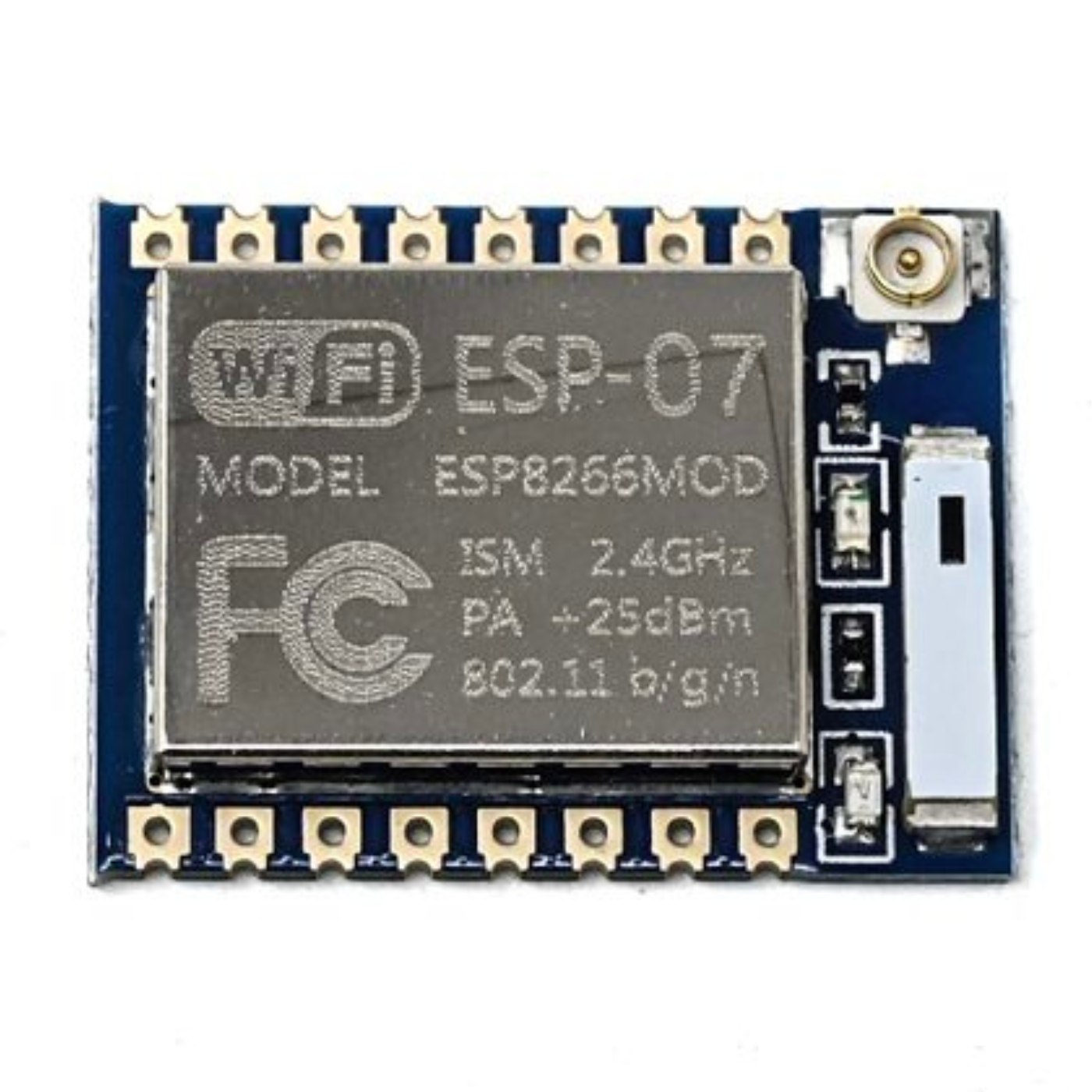

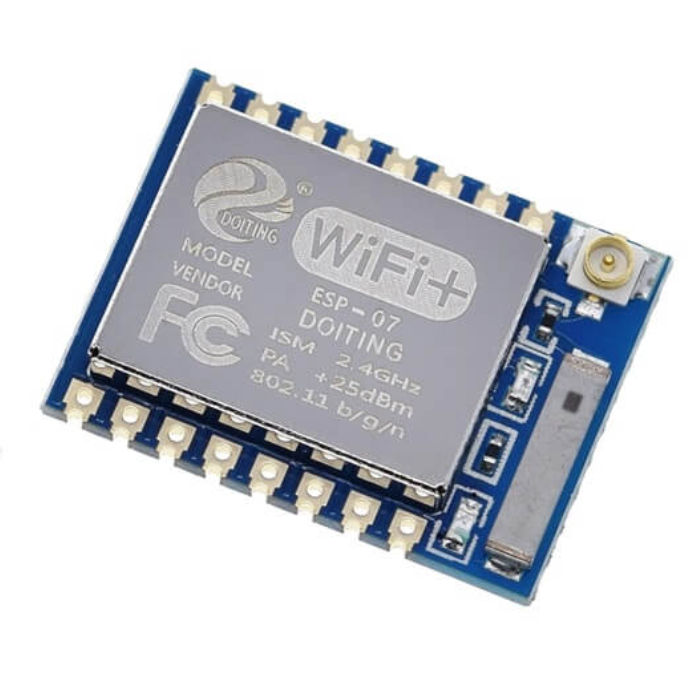

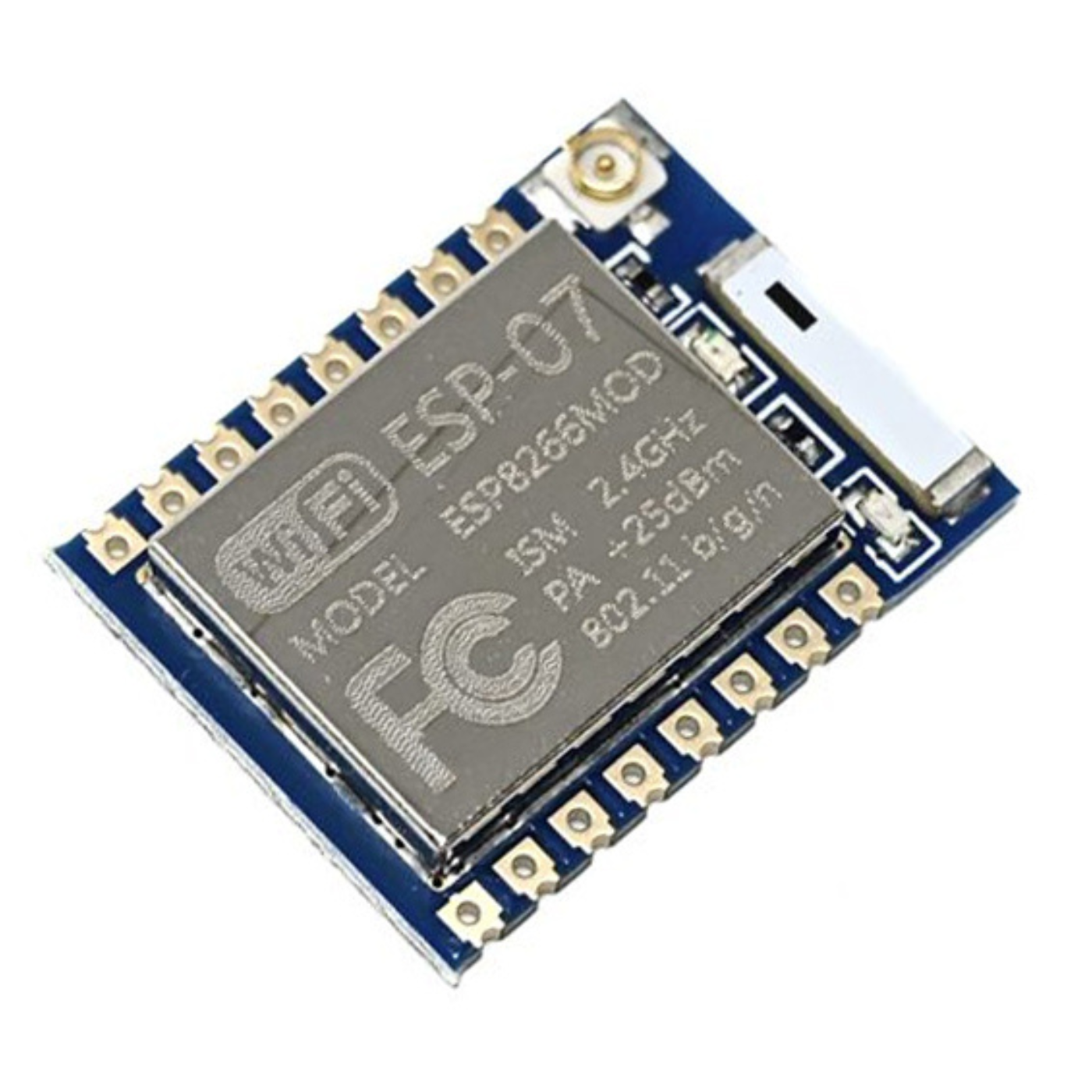

ESP8266 Serial WIFI Wireless Transceiver Module ESP-07 Send Receive LWIP AP Plus STA
The ESP-07 WiFi module is developed by AI-Thinker Co., Ltd, has an ultra-low power 32-bit MCU micro, with a 16-bit short mode, clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antennas. The ESP ESP8266EX offers a complete and self-contained Wi-Fi networking solution; it can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. It has an integrated cache to improve the performance of the system in such applications.
This module has a powerful enough onboard processing and storage capability that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.

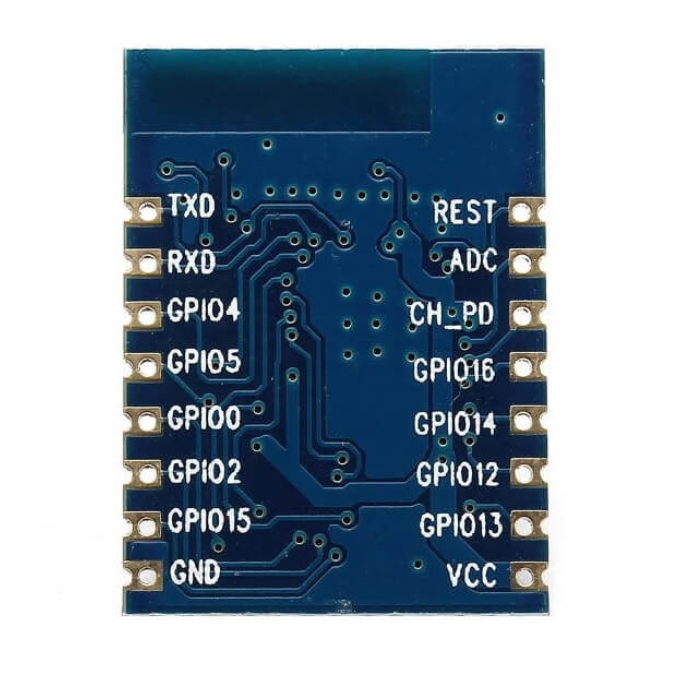

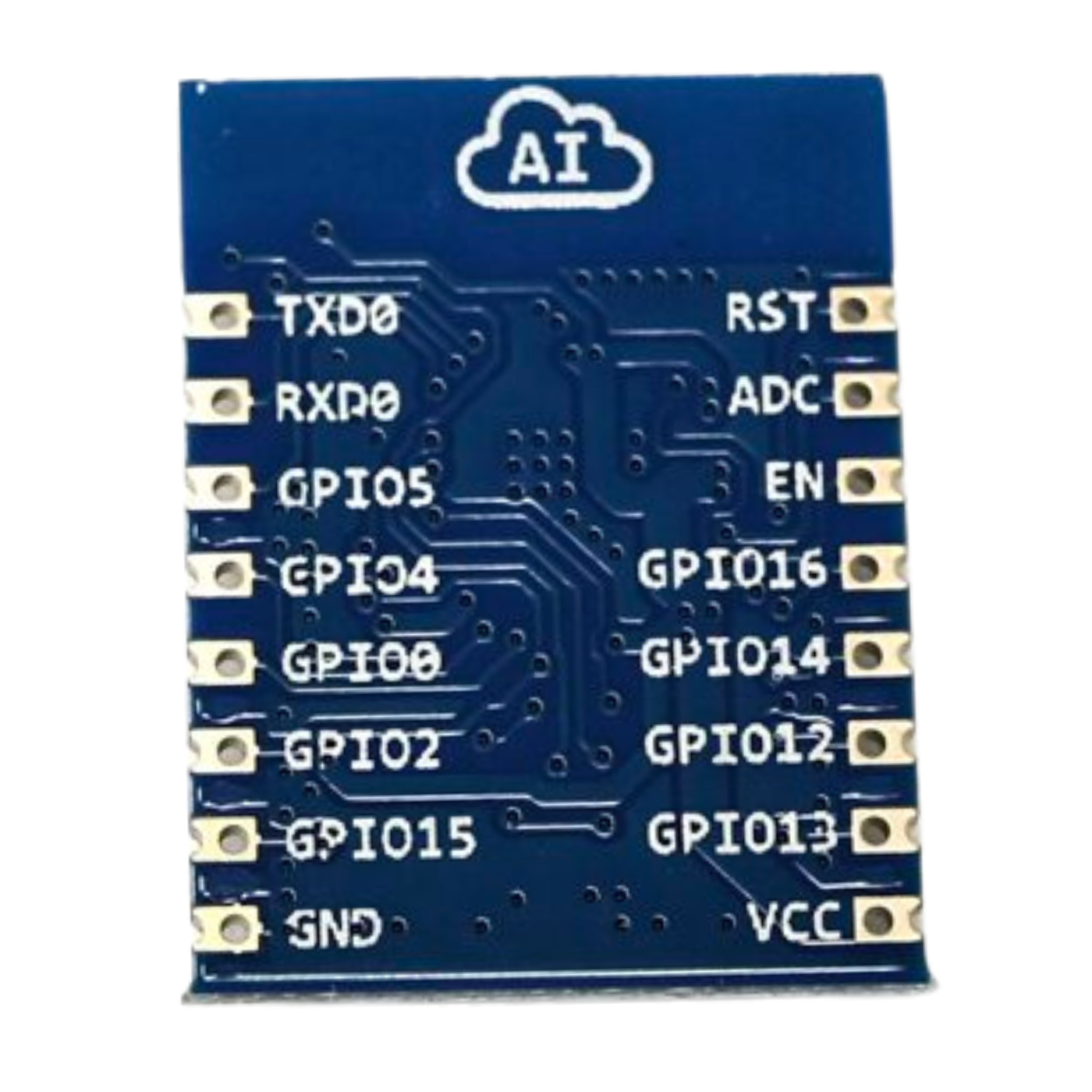

Pinout:
Features:
- Core Processor: ESP8266 with Tensilica L106 ultra-low-power 32-bit micro MCU.
- Clock Speed: Supports 80 MHz and 160 MHz.
- WiFi Standards: 802.11 b/g/n.
- Interfaces: UART, GPIO, I2C, PWM, ADC.
- Built-in Features: Integrated Wi-Fi MAC/BB/RF/PA/LNA, onboard antenna.
- Memory: Internal SRAM and ROM, with support for external SPI flash.
- Power Consumption: Low power consumption, suitable for battery-operated projects.
- ADC: Built-in 10-bit high-precision ADC.
- Package: SMD-16 package for easy soldering
Applications:
- Home Automation: Used in smart home devices for controlling lights, thermostats, and security systems.
- Industrial Wireless Control: Employed in industrial settings for remote monitoring and control of machinery.
- IoT Projects: Ideal for Internet of Things applications, including data collection and remote device management.
- Baby Monitors: Integrated into baby monitoring systems for wireless communication.
- Wearable Electronics: Used in wearable devices for health monitoring and other functions.
- Wireless Location Sensing: Utilized in systems that require wireless positioning and location tracking.
- Remote Sensor Data Logging: Suitable for logging data from remote sensors over WiFi.
- DIY Projects: Perfect for hobbyists and makers creating custom wireless projects
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
NodeMCU ESP8266 AMICA CP2102 WiFi Development Board
ESP14 ESP8266 Serial Wireless Transceiver WiFi Module AP+STA
ESP01 ESP8266 Wireless Transceiver Module
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x ESP-07 Wifi Module
Specifications
| Module Model | ESP-07 |
| WIFI | 802.11 b/g/n |
| Frequency Range | 2.4GHz-2.5GHz (2400M-2483.5M) |
| Operating Voltage | 3.0~3.6V |
| Security | WPA/WPA2 |
| Flash | 4 MB |
| Dimensions | 3 x 2 x 1cms |
| Weight | 15 grams |
1.What is the use of the ESP8266 WiFi module?
- The ESP8266 module connects microcontrollers to 2.4 GHz Wi-Fi via IEEE 802.11 bgn. It can be used in conjunction with ESP-AT firmware to provide Wi-Fi connectivity to external host MCUs, or as a self-contained MCU by running an RTOS-based SDK.
2.Is ESP8266 a transceiver?
- Yes, the ESP8266 is a transceiver. It is a low-cost, low-power, Wi-Fi chip that can transmit and receive data wirelessly over a Wi-Fi network. The ESP8266 includes both a Wi-Fi radio and a microcontroller, making it a versatile solution for Internet of Things (IoT) projects. It is commonly used with the Arduino IDE and can be programmed in a variety of programming languages.
3. What are the power requirements for the ESP-07 module?
- The ESP-07 module operates at 3.3V and has a power consumption designed for low-power applications, making it suitable for IoT projects.
4. How do I program the ESP-07 module?
- The ESP-07 can be programmed using the Arduino IDE, NodeMCU, or other compatible development environments. It supports programming via UART, and you can use AT commands or custom firmware.
5. What interfaces does the ESP-07 module provide?
- The module provides multiple interfaces, including GPIO pins, UART, SPI, and I2C, allowing for versatile connectivity with other devices and sensorsb.
