ELECROW 6 Axis CNC Controller for FluidNC
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability

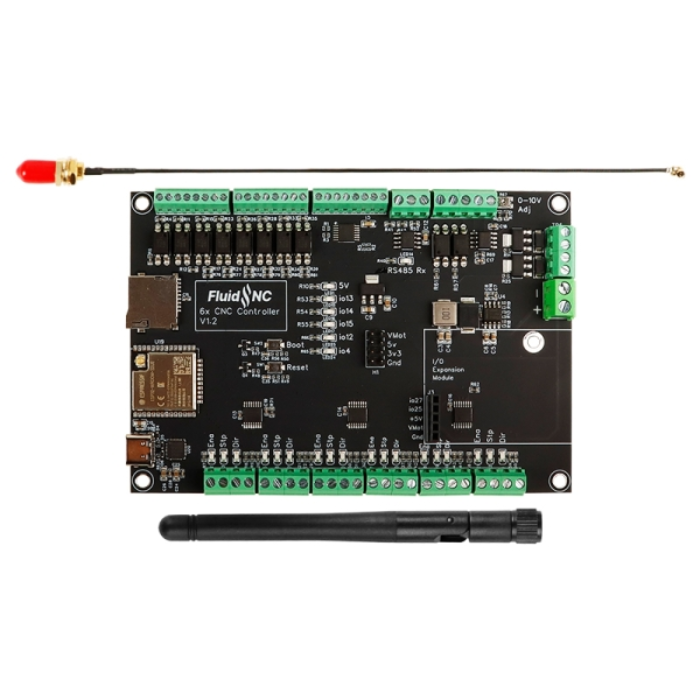

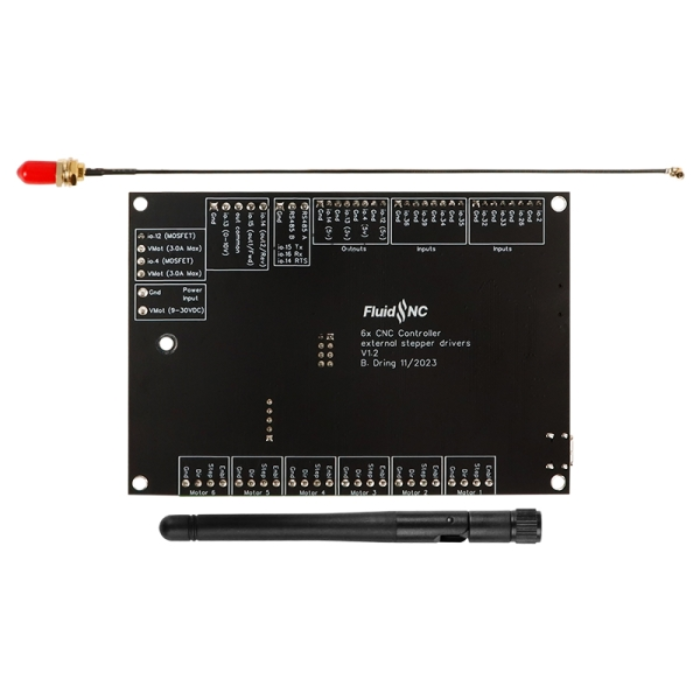

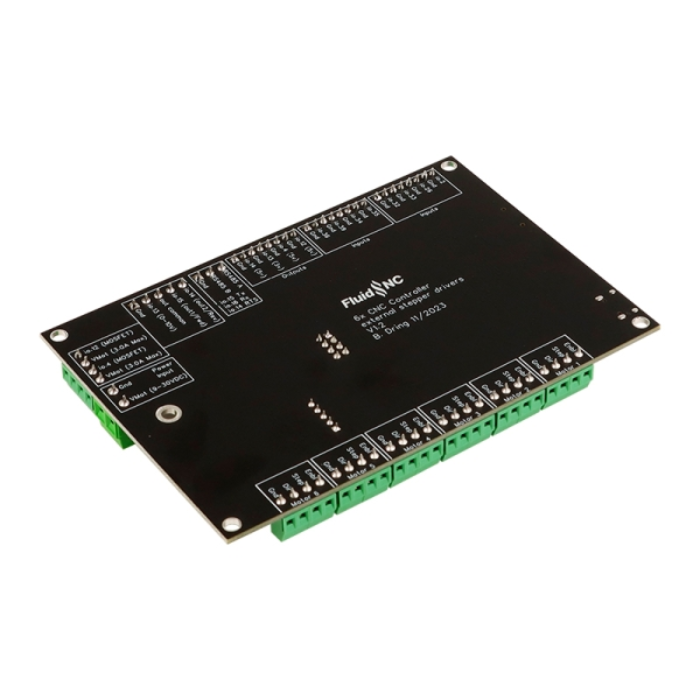

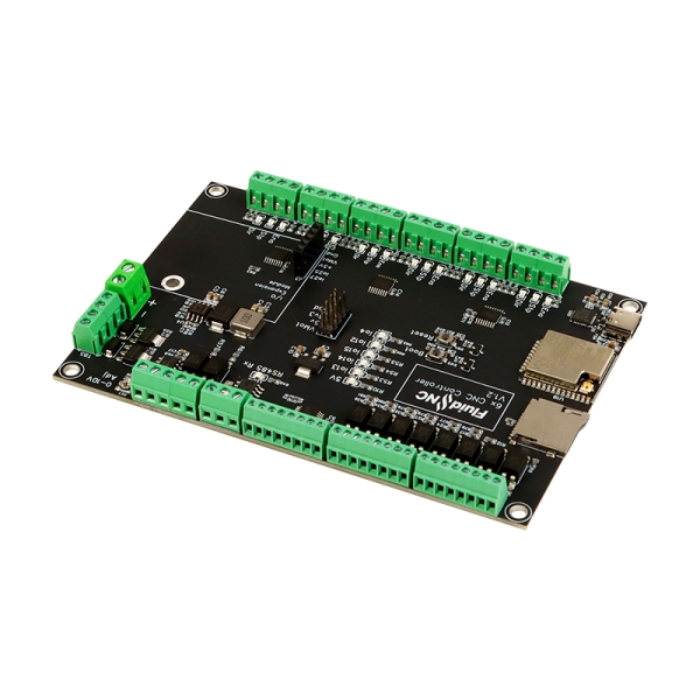

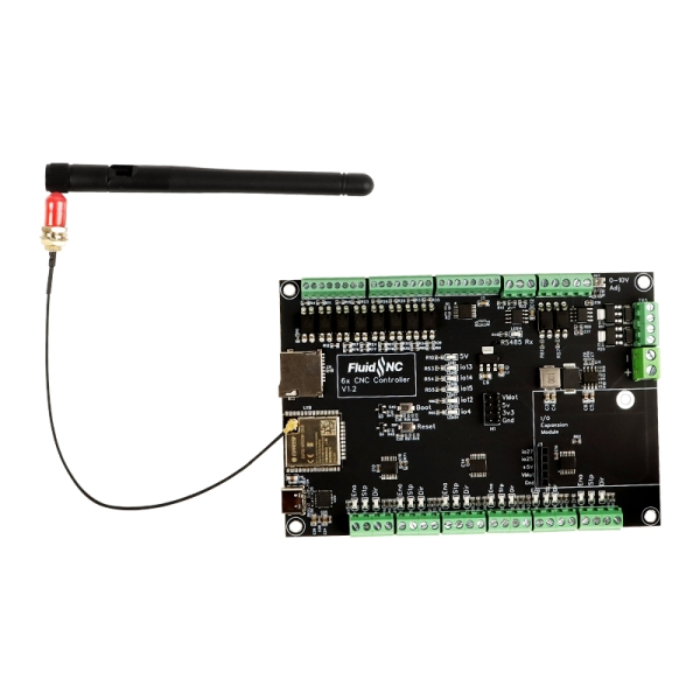

Take precise control of your custom machining projects with the ELECROW 6 Axis CNC Controller FluidNC. Designed for versatility and ease of use, this ESP32-based controller board is the perfect brain for your next CNC router or laser engraver. With support for up to 6 axes (or dual motors per axis) and a wide range of spindle control options, it delivers professional-grade performance without the professional-grade complexity.
All configuration, upgrades, and settings are managed directly through your web browser, eliminating the need for complex software compilation. Whether you are building a custom CNC mill, a laser cutter, or an advanced multi-axis robotic system, the ELECROW 6 Axis CNC Controller FluidNC provides the reliable, expandable foundation you need.
Complete Your Build
Looking for the right components to pair with your new controller? Explore the Robocraze Stepper Motors & Controllers collection for compatible hardware, or check out our robotics and electronics blogs for helpful CNC setup tips and tutorials.
| Feature | Specification |
|---|---|
| Controller | ESP32 with USB-C |
| Motor Connectors | 6 (5V signals) |
| Motor Setup | Up to 6 axis or dual motors per axis |
| Signal Support | Step, direction, enable with LEDs |
| Switch Inputs | 8 (limits, probes, control) |
| Spindle Support | RS485, 0-10V, PWM, Relay, BESC, Laser |
| MOSFET Outputs | 2 x 3A for relays, solenoids, valves |
| 5V Outputs | Repurposable (e.g., coolant) |
| LED Indicators | On most outputs |
| Storage | Micro SD card |
| Expansion | Module socket for GPIO extenders, pendant |
| Dimensions (LxWxH) | 7cm x 9cm x 0.2cm |
| Weight | 86gm |
This controller is compatible with CNC routers and laser engravers/cutters. It supports up to 6 motors and offers versatile spindle control options, including RS485, 0-10V, PWM, relay, and BESC spindle control.
No — the ELECROW 6 Axis CNC Controller is configured entirely via a web browser per FluidNC specifications. No software compilation is required, making the setup process user-friendly and accessible.
This board provides 5V step, direction, and enable signals, meaning it acts as the "brain" rather than the "muscle." You will need to connect it to external stepper motor drivers (such as TMC2209, DM542, or similar) to actually power and drive your CNC motors. It is not designed to drive high-current motors directly.
Yes! Because it is powered by an ESP32 microcontroller, it features built-in Wi-Fi. Once configured, the controller creates its own web interface or connects to your local network. This allows you to send G-code, tweak settings, and monitor your machine’s status wirelessly from your computer or tablet, eliminating the need for a tethered USB connection during operation.
The ELECROW FluidNC controller is highly compatible with modern, industry-standard software. You can easily send files and control the machine using LightBurn (ideal for laser cutting/engraving), FluidTerm, Universal Gcode Sender (UGS), or any other G-code sender that supports the FluidNC/WebSocket protocol via USB or Wi-Fi.
I received timely notifications about my order status and shipping progress, keeping me informed throughout the delivery.
The product arrived securely packed with anti-static foam and bubble wrap, preventing damage during transit.
The controller board is solidly built with quality components, ensuring durability and stable performance during CNC operations.
Setup was straightforward with clear documentation. The controller connected easily to my CNC machine and FluidNC software without complications.
The ELECROW 6 Axis CNC controller integrates smoothly with FluidNC firmware, providing precise control and reliable operation for my CNC projects.
