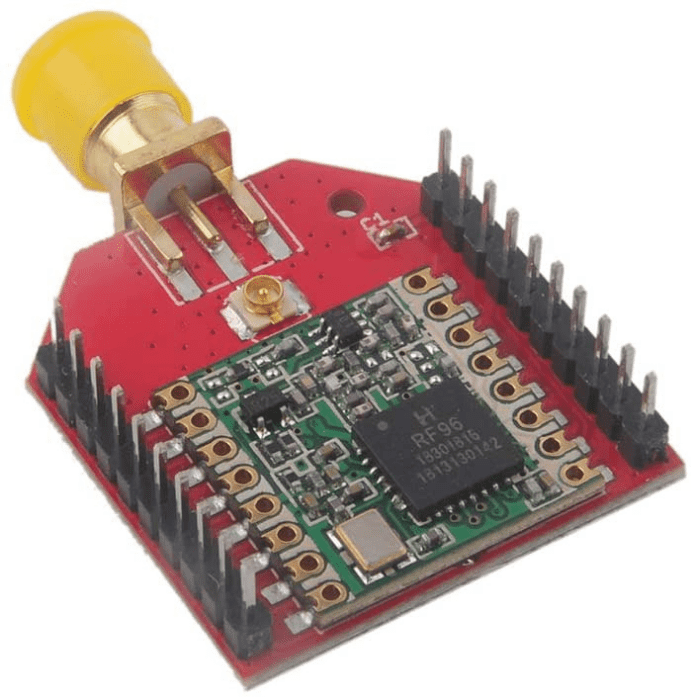

- This is DRAGINO LORA BEE V1.1 + HOPERF RFM95-98(W)
- This requires of 3.3V power supply
- This is Compatible with Arduino
- This has Preamble detection
- This has 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Fully integrated synthesizer with a resolution of 61 Hz.
- Built-in bit synchronizer for clock recovery.

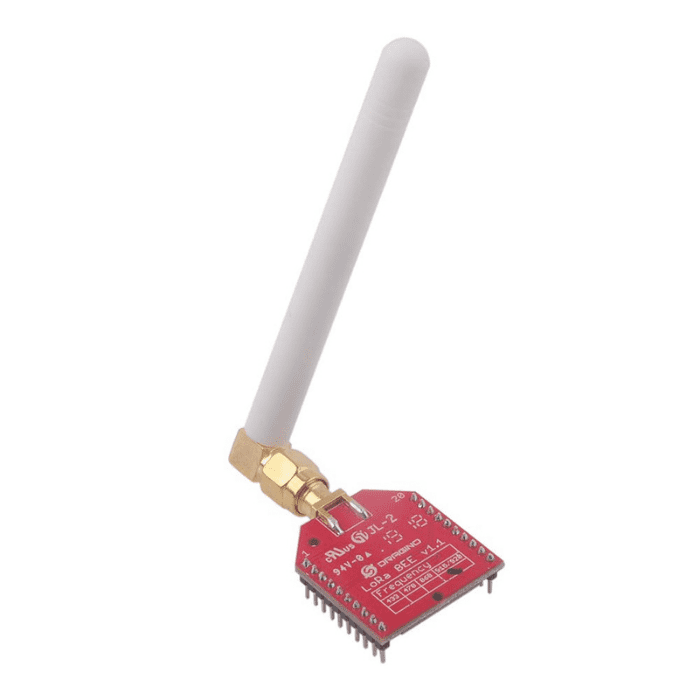

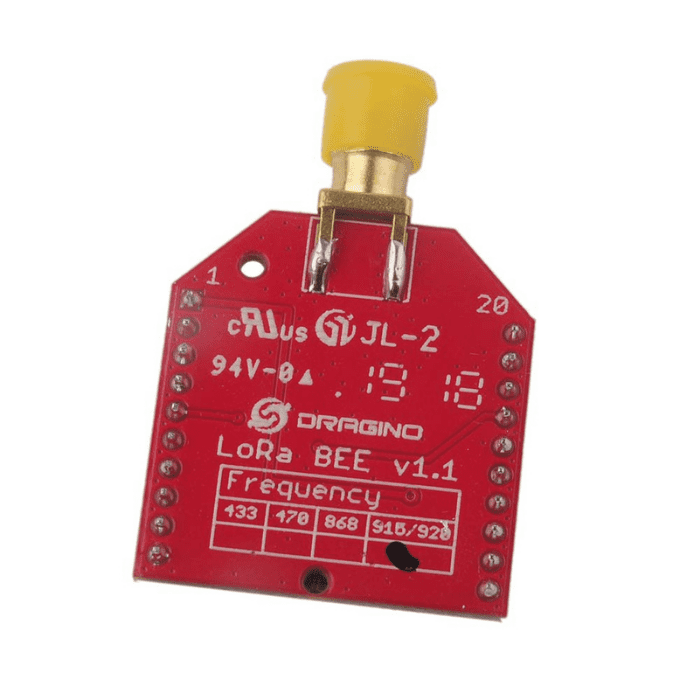

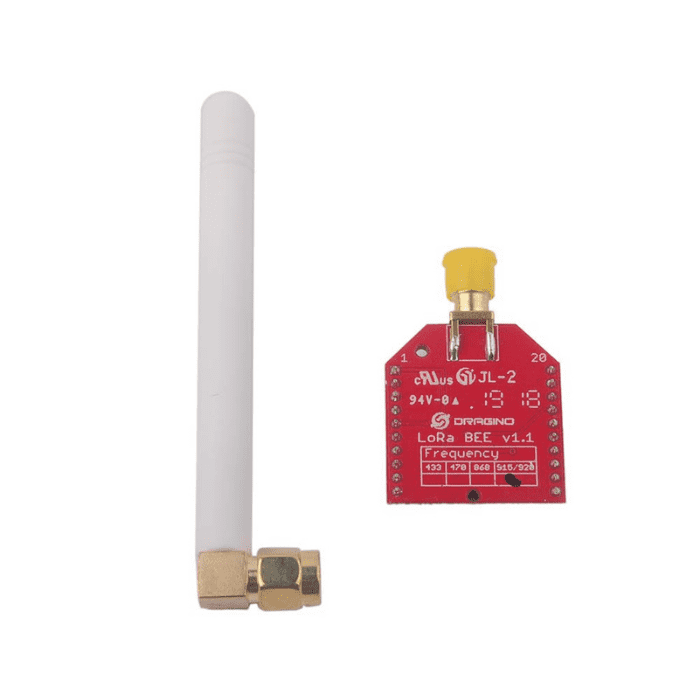

DRAGINO LORA BEE V1.1 + HOPERF RFM95-98(W)
The Dragino Lora BEE is a LoRa module that allows the user to send data and provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. The LoRa BEE targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on. The RFM95/96W transceivers feature the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption
read more : Node to Node LoRa communication using Nano 33 BLE Sense
Note:
You have to be aware that Radio link quality and performances are highly dependent on the environment.
- Better performances can be reached with:
- Outdoor environment.
- No obstacles.
- No high-level radio interferer in the ISM 868MHz band.
- At least 1 meter above the ground.
read more : How to use ESP32 with LoRaBEE as a node in LoRAWAN
Features:
- The Dragino Lora Bee V1.1 module allows for ultra-long range spread spectrum communication and high interference immunity while minimizing current consumption.
- It is based on the SX1276/SX1278 transceiver and targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and more.
- The Lora Bee is available in 433MHz, 868MHz, and 915MHz versions and features FSK, GFSK, MSK, GMSK, LoRa, and OOK modulation.
- It has a maximum link budget of 168 dB, programmable bit rate up to 300 kbps, and high sensitivity down to -148 dBm.
- The Hoperf RFM95-98(W) transceiver module features LoRa modulation and is available in 868MHz and 915MHz versions.
read more : Node to Node communication on LoRa With ESP32
Applications:
- Automated Meter Reading
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
- Long-range Irrigation Systems
- GPS tracker
Package Includes:
- 1 x DRAGINO LORA BEE V1.1
- 1 x HOPERF RFM95-98(W)
Specifications:
|
Maximum link budget |
168 dB |
|
Constant RF output vs |
+20 dBm - 100 mW |
|
High-efficiency PA |
+14 dBm |
|
Programmable bit rate |
up to 300 kbps. |
|
High sensitivity |
Down to -148 dBm |
|
Bullet-proof front end |
IIP3 = -12.5 dBm |
|
Low RX current |
10.3 mA, 200 nA |
|
Dimensions |
31mm x 25mm x 10mm. |
|
Weight |
4g |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

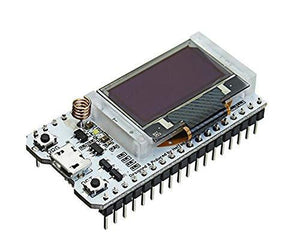

ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
ESP32 LoRa with Display - 863MHz-928MHz SX1276

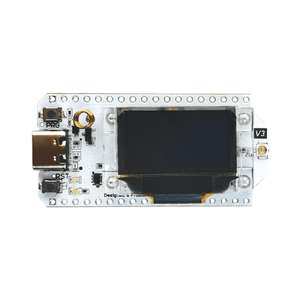

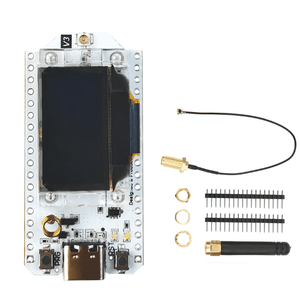

V3 Version 863MHz-928MHz SX1262 ESP32 WIFI bluetooth Lora with 0.96 OLED Display
Found a better price?
Let us know!
We'll try to match the price for you
1. What is RFM95W?
The RFM95W is a transceiver module which employs the LoRa long-range modem for highly resilient communication with ultra-long-range spread spectrum capabilities. This module is optimized to deliver outstanding performance in phase noise, selectivity, receiver linearity, and IIP3 while consuming significantly less power than comparable modules. The RFM95W comes in different frequencies, including 868 MHz and 915 MHz, and is suitable for a range of applications that demand long-range wireless communication, such as IoT devices, remote sensors, and other similar applications.
2. What is the range of rfm95?
The effective range of the RFM95 transceiver can differ based on a variety of factors, including frequency, obstructions, antenna type, and power output. As per search results, the RFM95 transceiver is capable of transmitting over distances of up to 2 km in a line of sight configuration with a basic wire antenna. However, the range can be extended up to 20 km with the use of directional antennas and the appropriate settings adjustment. This extensive range can be attributed to the Long Range Modem that facilitates ultra-long range spread spectrum communication and offers high immunity to interference.
