DFRobot Gravity Flexible Piezo Film Vibration Sensor Module
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The DFRobot Gravity Flexible Piezo Film Vibration Sensor Module is a versatile, Arduino-compatible sensor designed to detect vibrations, impact, touch, and bending with high precision.
It features a flexible piezoelectric PVDF film with screen-printed Ag-ink electrodes and a polyester backing, making it highly sensitive and durable. When the film is flexed or tapped, it generates a high voltage (up to ±90V), making it suitable for triggering MOSFET or CMOS circuits directly.

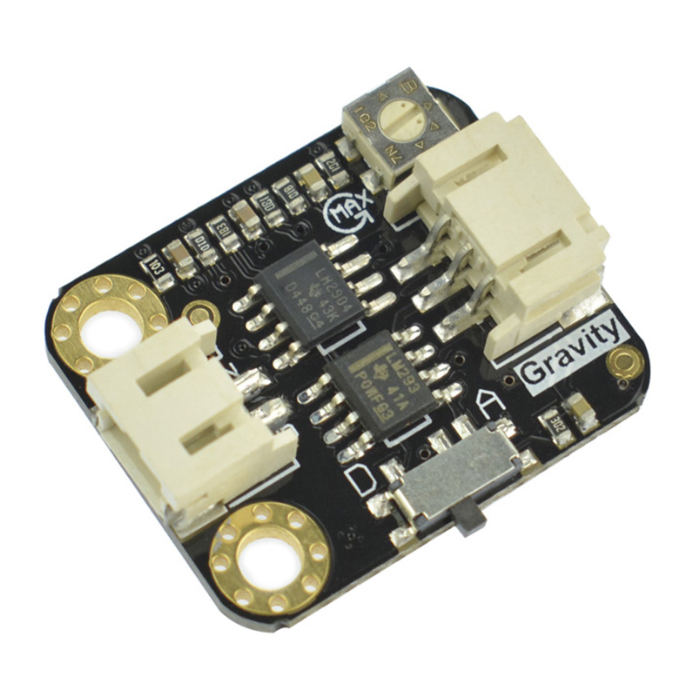

This piezo vibration sensor module supports both analog and digital outputs and connects easily using the Gravity 3-pin interface. It includes an onboard potentiometer to fine-tune sensitivity, allowing it to detect everything from subtle movements to strong impacts.
With a wide dynamic range (0.001Hz–1000MHz), it's perfect for various projects, including motion detection, touch sensing, and impact-triggered systems.

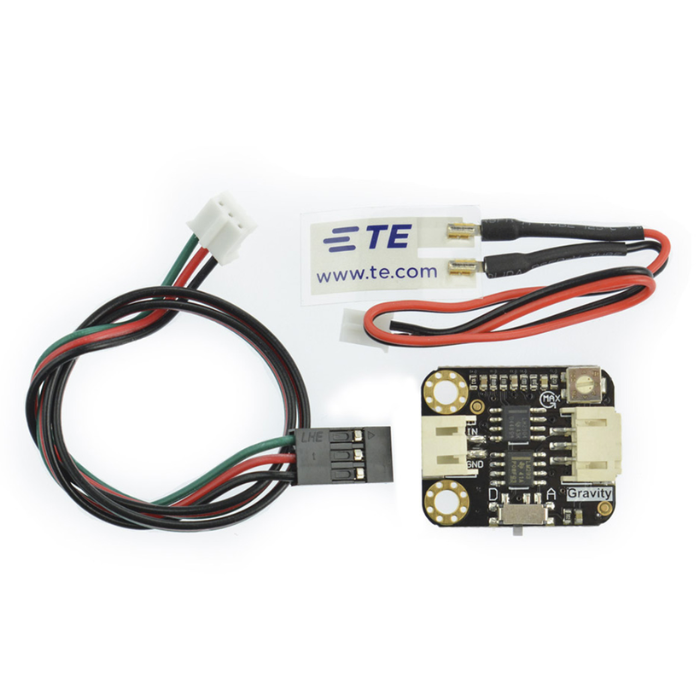

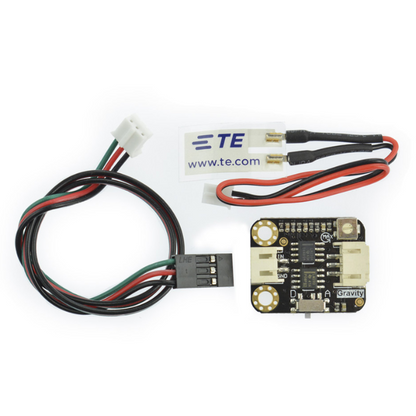

1 x DFRobot Gravity Flexible Piezo Film Vibration Sensor Module
| Parameter | Value |
|---|---|
| Operating Voltage | 5V |
| Interface Type | Gravity PH2.0 3Pin interface |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Dimension | 27mm x 22mm |
| Weight | 10g |
