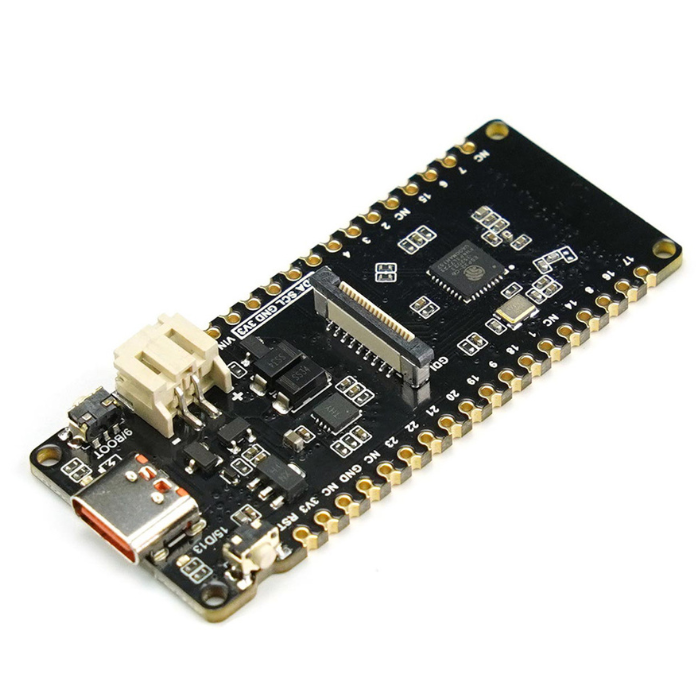

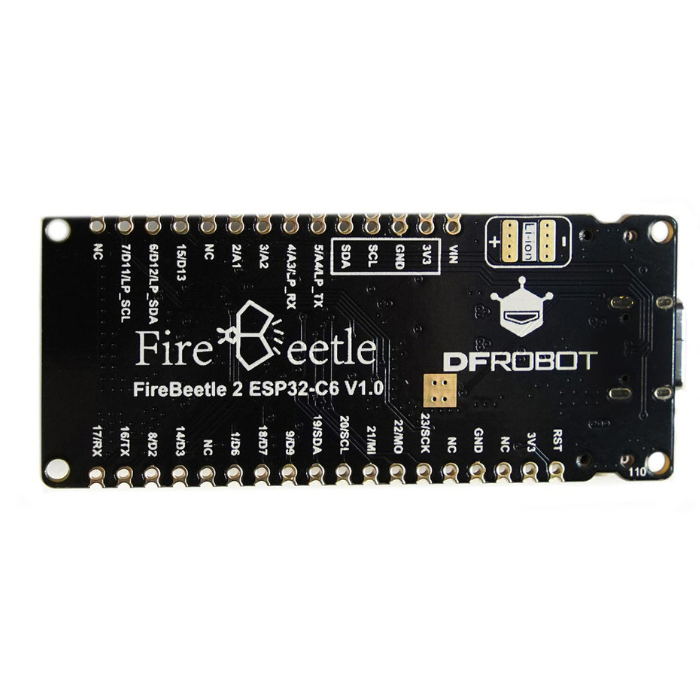

DFRobot FireBeetle 2 ESP32 C6 IoT Development Board - Supports Wi-Fi 6, Bluetooth 5, Solar-Powered
Couldn't load pickup availability
The DFRobot FireBeetle 2 ESP32 C6 IoT Development Board is a low-power controller designed around the ESP32-C6 chip, making it perfect for smart home projects.
It features a high-performance 160MHz RISC-V 32-bit processor and supports multiple communication protocols, including Wi-Fi 6, Bluetooth 5, Zigbee 3.0, and Thread 1.3, ensuring seamless integration into various IoT networks.
The development board offers several power supply options, such as Type-C, 5V DC, and solar charging for lithium batteries, managed by a solar power manager.
This optimizes power usage and ensures efficient energy management, providing flexible choices for long-term deployment in IoT applications.

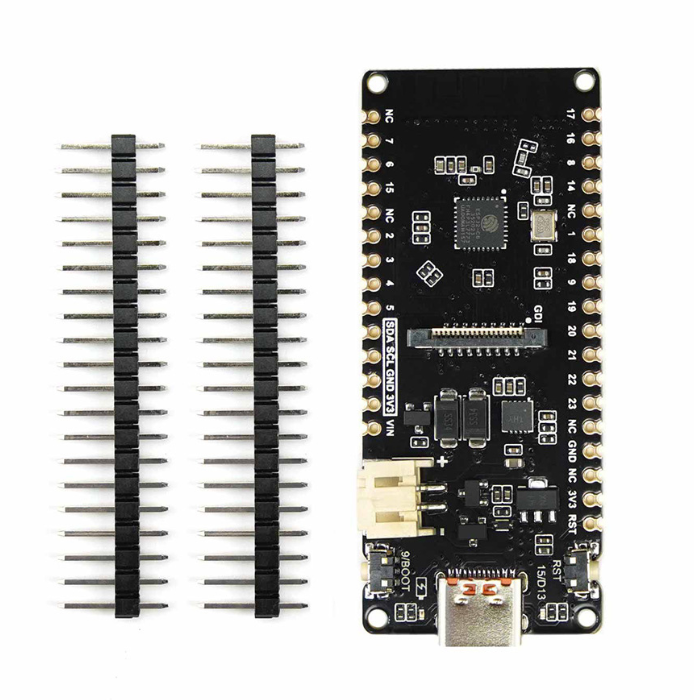

1 x DFRobot FireBeetle 2 ESP32 C6 IoT Development Board
| Specification | |
|---|---|
| Basic Parameters | |
| Operating Voltage | 3.3V |
| Type-C Input Voltage | 5V DC |
| VCC Input Voltage | 5V DC or 4.5-6V Solar Panel |
| Max Charging Current | 0.5A |
| Sleep Current (Deep Sleep Mode) | V1.1: 36µA (Current Version), V1.0: 16µA (legacy) |
| Operating Temperature | -10~60? |

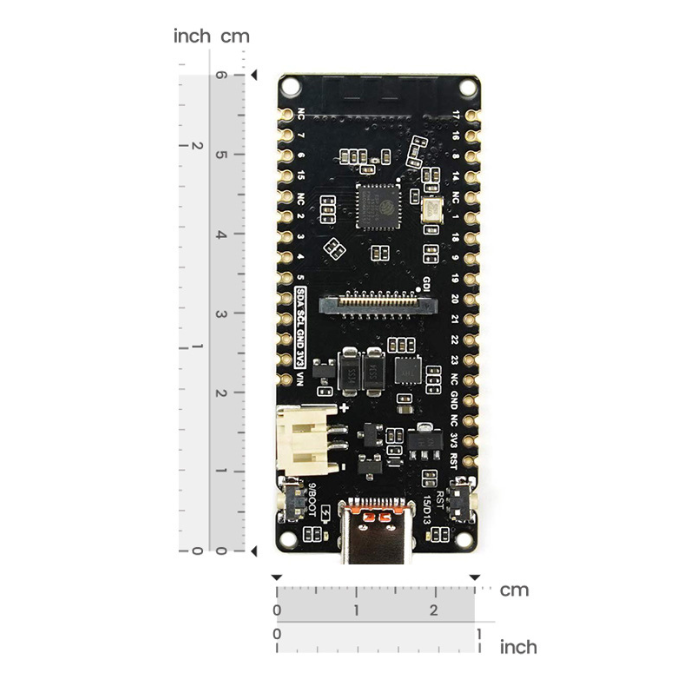

| Dimension | 25.4x60mm/1x2.36” |
| Hardware Information | |
| Processor | RISC-V single-core processor |
| Main Frequency | 160 MHz |
| SRAM | 512KB |
| ROM | 320KB |
| Flash | 4MB |
| RTC SRAM | 16KB |
| USB | USB 2.0 CDC |
| WIFI | |
| WIFI Protocol | IEEE 802.11b/g/n, IEEE 802.11ax (20 MHz-only non-AP mode) |
| Bandwidth | Support 20 MHz and 40 MHz at 2.4 GHz band |
| WIFI Mode | Station, SoftAP, SoftAP+Station combined mode |
| WIFI Frequency | 2.4GHz |
| Frame Aggregation | TX/RX A-MPDU, TX/RX A-MSDU |
| Bluetooth | |
| Bluetooth Protocol | Bluetooth 5, Bluetooth mesh |
| Bluetooth Frequency | 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps |
| IEEE 802.15.4 | |
| Compatible with IEEE 802.15.4-2015 protocol | Yes |
| Frequency band | 2.4GHz |
| Data rate | 250Kbps |
| Supports Thread 1.3 and Zigbee 3.0 | Yes |
| Ports | |
| Digital I/O | x19 |
| LED PWM | 6 Channel |
| SPI | x1 |
| UART | x3 (LP UART x1) |
| I2C | x2 (LP I2C x1) |
| I2S | x1 |
| IR Transceiver | Transmit channel x5, Receive channel x5 |
| ADC | 1 × 12-bit SAR ADC, 7 Channel |
| DMA Controller | Transmit channel x3, Receive channel x3 |
