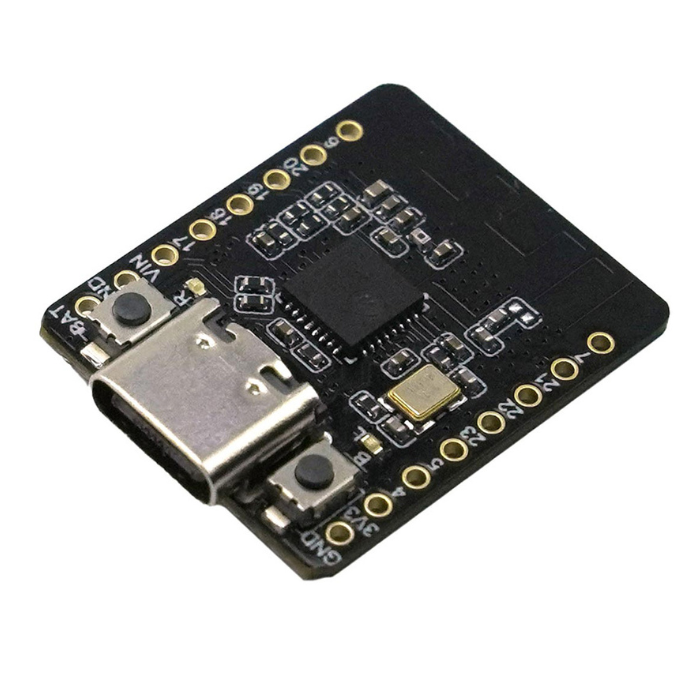

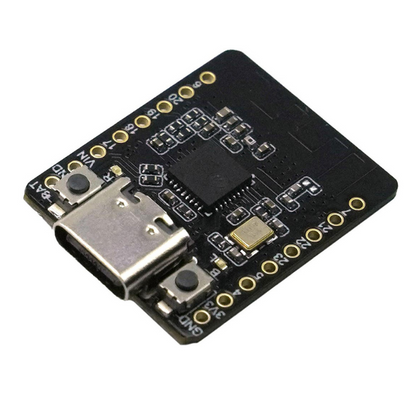

The Beetle ESP32 C6 is a miniature Arduino-compatible development board based on the ESP32-C6 chip that packs impressive capabilities into a space no larger than a coin. Powered by a high-performance 160MHz RISC-V wearable controller processor, this tiny board supports multiple communication protocols including Wi-Fi 6, Bluetooth 5, Zigbee 3.0, Thread 1.3, and Matter.
This versatility allows you to connect to various IoT networks and create Matter smart home device applications that work across different platforms. The board's integrated lithium battery charging management means you don't need external modules for battery charging, making your projects more compact and particularly well-suited for wearable applications.
Despite its incredibly small 25×20.5mm size, this coin-sized IoT board provides up to 13 IO ports, eliminating concerns about insufficient connections during project development. The Beetle ESP32 C6 supports the latest Wi-Fi 6 development board technology, which offers improved network capacity, allowing devices to operate with high efficiency and low latency.
The Wi-Fi 6 Target Wake Time (TWT) feature effectively reduces power consumption, extending battery life significantly with a deep sleep current of only 14?A. With built-in battery voltage monitoring capabilities, you can take proactive measures when power levels are low to ensure continuous device operation.
Whether you're creating an electronic badge, smart watch, pet tracker, or smart lighting system, this versatile development board provides the perfect foundation for your next IoT project.
| Basic Parameters | |
|---|---|
| Operating Voltage | 3.3V |
| Type-C Input Voltage | 5V DC |
| VIN Input Voltage | 5V DC |
| Max Charging Current | 0.5A |
| Sleep Current | Deep Sleep Mode (Battery-Powered): Version 1.0: 14 ?A Version 1.1: 37 ?A |
| Operating Temperature | -10~60? |

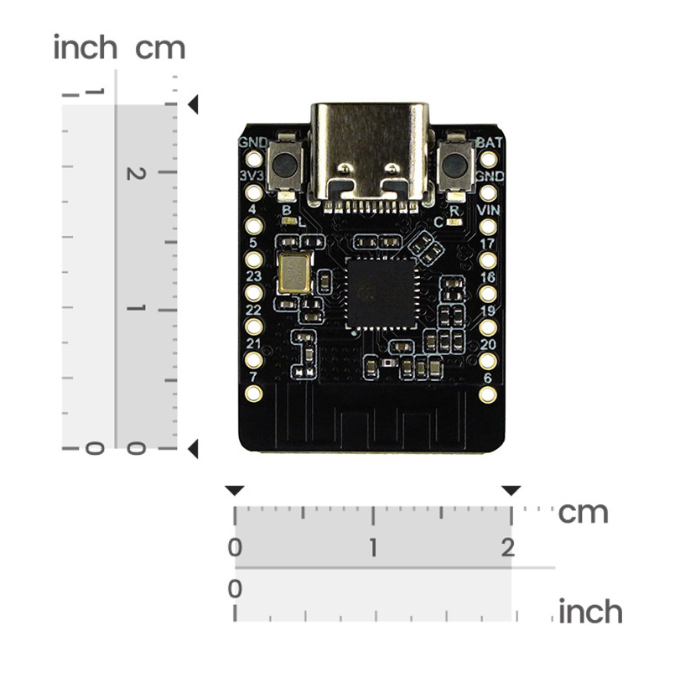

| Dimension | 25×20.5mm / 0.98×0.81” |
| Hardware Information | |
| Processor | RISC-V single-core processor |
| Main Frequency | 160 MHz |
| SRAM | 512KB |
| ROM | 320KB |
| Flash | 4MB |
| RTC SRAM | 16KB |
| USB | USB 2.0 CDC |
| Wi-Fi | |
| Wi-Fi Protocol | IEEE 802.11b/g/n, IEEE 802.11ax (20 MHz-only non-AP mode) |
| Bandwidth | 20 MHz and 40 MHz at 2.4 GHz band |
| Wi-Fi Mode | Station, SoftAP, SoftAP+Station combined mode |
| Wi-Fi Frequency | 2.4GHz |
| Frame Aggregation | TX/RX A-MPDU, TX/RX A-MSDU |
| Bluetooth | |
| Bluetooth Protocol | Bluetooth 5, Bluetooth mesh |
| Bluetooth Frequency | 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps |
| IEEE 802.15.4 | |
| Protocol | IEEE 802.15.4-2015 |
| Frequency Band | 2.4GHz |
| Data Rate | 250Kbps |
| Support | Thread 1.3 and Zigbee 3.0 |
| Ports | |
| Digital I/O | 13 |
| LED PWM | 6 Channel |
| SPI | 1 |
| UART | 3 (LP UART x1) |
| I2C | 2 (LP I2C x1) |
| I2S | 1 |
| IR Transceiver | Transmit x5, Receive x5 |
| 12-bit SAR ADC | 1 × 12-bit SAR ADC, 7 Channel |
| DMA Controller | Transmit x3, Receive x3 |
