DFRobot 5A DC-DC Buck Boost Converter Module

Low stock: 7 left

Rs. 892
Rs. 1,189 Rs. 892
Sale Sold out 25% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1

Free shipping on Orders Above Rs 499/-

Fast Delivery

Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • DC-DC Buck Boost Converter Module with 5A output current for both step-up and step-down operations
  • Wide input voltage range from 5V to 32V with adjustable output from 1V to 30V
  • Built-in protection features including over-temperature, input under-voltage, and output over-current
  • High efficiency up to 95% with synchronous rectification technology
  • Easy-to-use with onboard potentiometer for voltage adjustment and LED indicator
  • Perfect for powering Arduino, Raspberry Pi, and other electronic projects

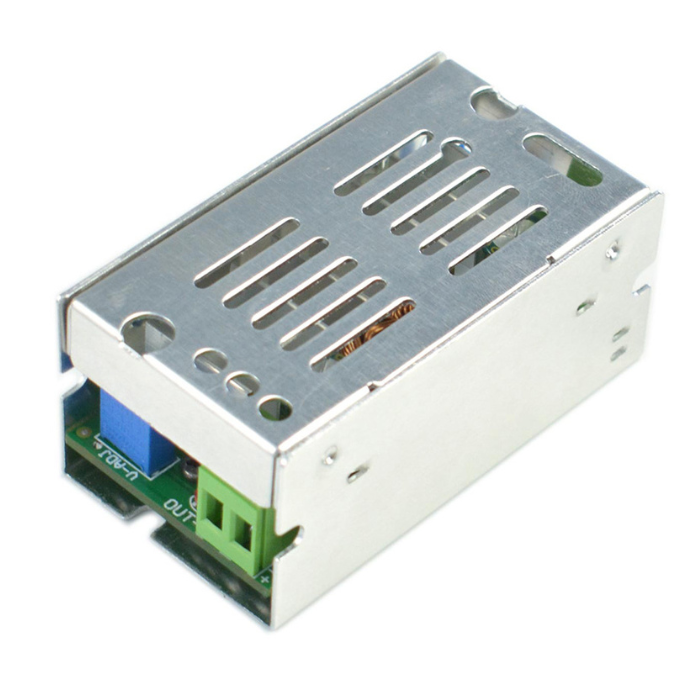

DFRobot 5A DC-DC Buck Boost Converter Module

The DC-DC Buck Boost Converter Module (5A) is a versatile power supply solution that can both step up and step down voltage as needed. With an input voltage range of 5V to 32V and adjustable output from 1V to 30V, this module handles a wide variety of power conversion needs for your electronics projects.

The converter delivers a stable 5A continuous output current with excellent voltage regulation, making it ideal for powering microcontrollers, sensors, motors, and other devices that require consistent power.

The module features synchronous rectification technology that achieves high efficiency up to 95%, reducing energy waste and heat generation during operation.

This Buck Boost Converter Module comes with comprehensive protection mechanisms to safeguard your valuable electronics.

It includes over-temperature protection, input under-voltage protection, and output over-current protection, ensuring safe and reliable operation even under challenging conditions.

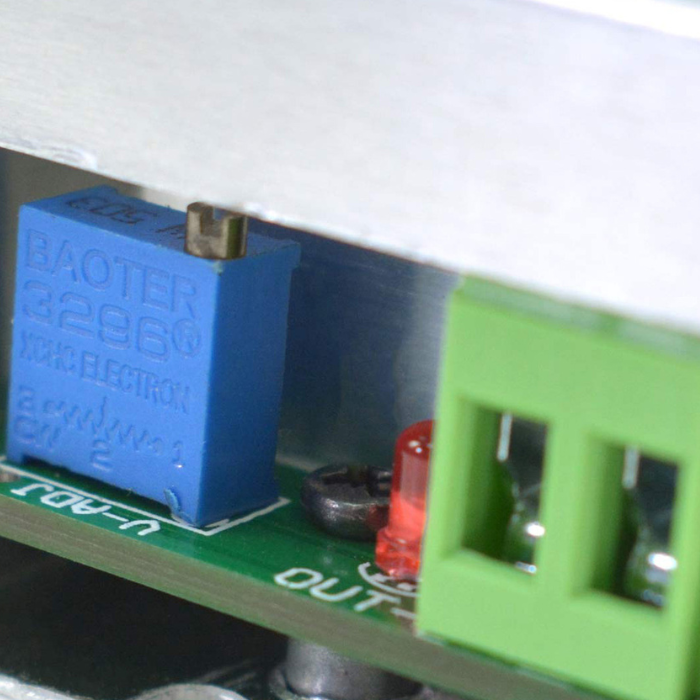

The module is designed with user-friendly features like an onboard potentiometer for easy voltage adjustment and an LED indicator that shows working status.

With its compact size of 55×38×15mm and pre-soldered 2.54mm pin headers, this converter module is perfect for students and hobbyists working with Arduino boards, Raspberry Pi, robotics projects, or any application requiring stable and adjustable power supply.

Pinout Details

DFRobot 5A DC-DC Buck Boost Converter Module Pinout Diagram
  1. Input+
  2. Input-
  3. Output+
  4. Output-
  5. Output Indicator
  6. Output Voltage Regulation

Features

  • Input voltage range: 5V to 32V DC
  • Output voltage range: 1V to 30V DC (adjustable via potentiometer)
  • Maximum output current: 5A continuous
  • Conversion efficiency: Up to 95% with synchronous rectification
  • Built-in protection: Over-temperature, input under-voltage, output over-current
  • Compact dimensions: 55×38×15mm with mounting holes
  • Operating temperature range: -40°C to +85°C

Applications

  • Industrial Power Supply
  • DIY Smart Power Supply
  • Embedded System Power Supply

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

Package Includes

1 x DFRobot 5A DC-DC Buck Boost Converter Module

Specifications

Input Voltage DC 6?35V
Output Voltage DC 1.0?33V
(Output can be greater or less than input)
Conversion Efficiency Up to 90%
(Measured at 12V input, 19V/2.5A output)
Maximum Input Current 7A
(Leave margin for long-term use)
Maximum Output Current 5A
(Leave margin for long-term use)
Module Size 70x39x32 mm (L x W x H)
2.76 x 1.54 x 1.26 inches
