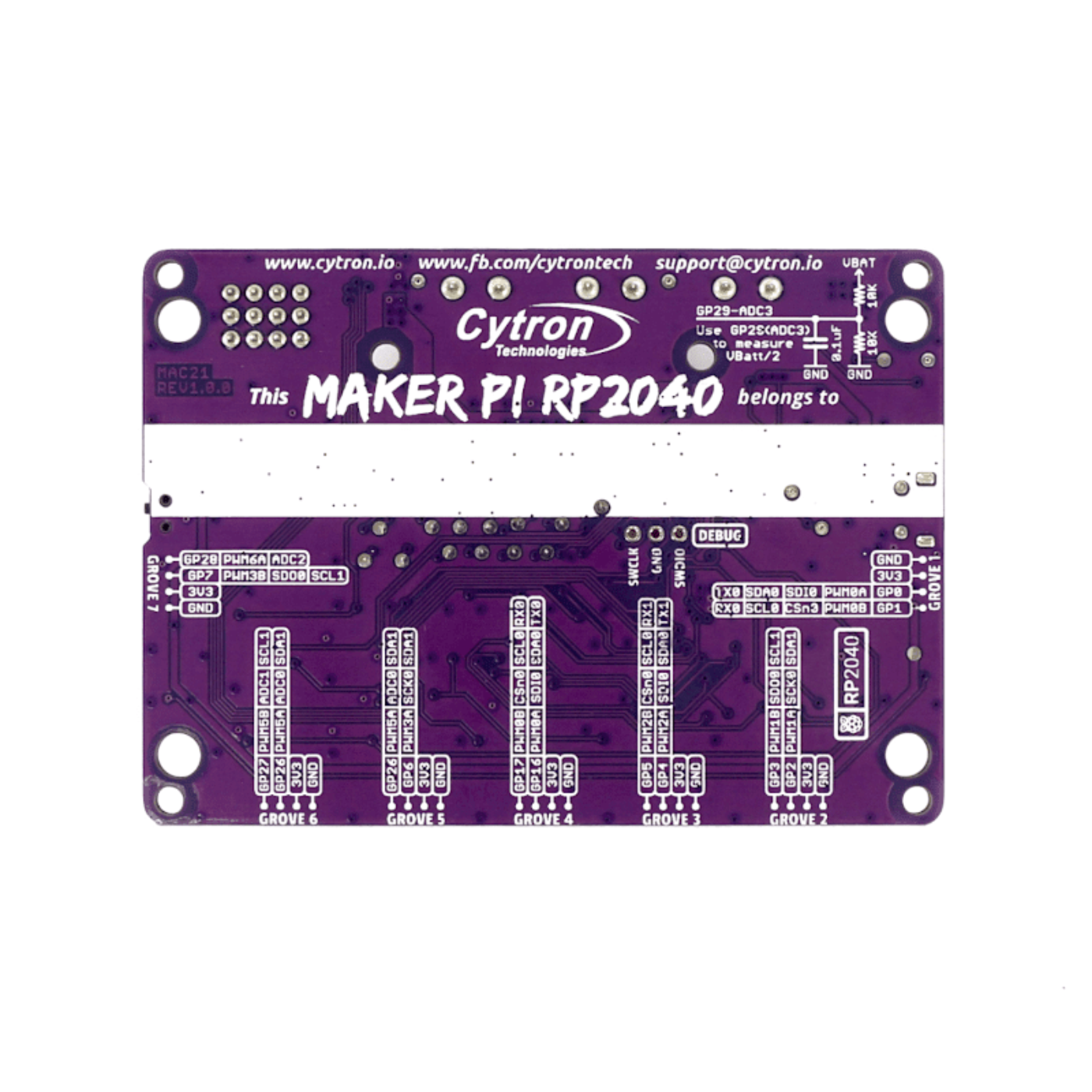

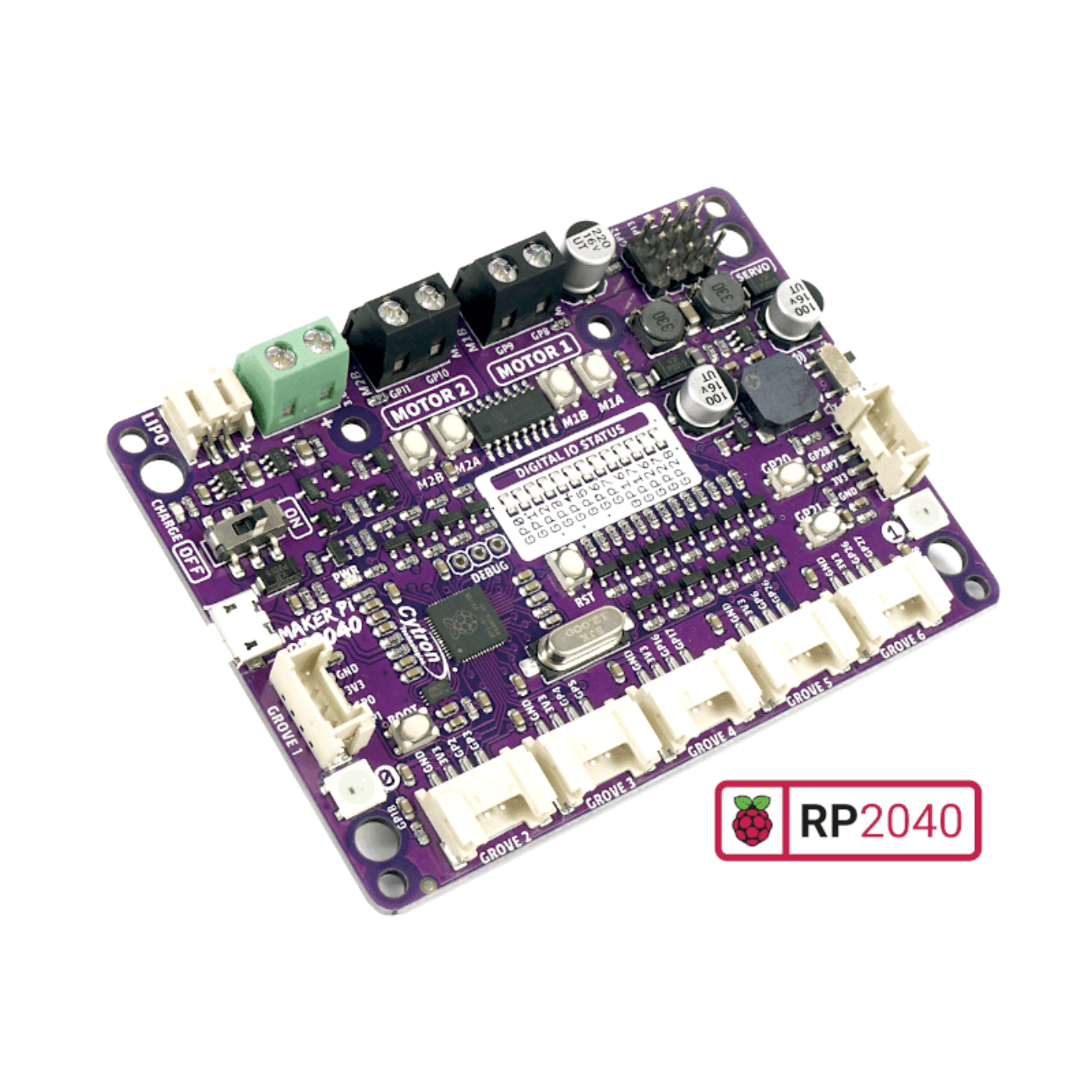

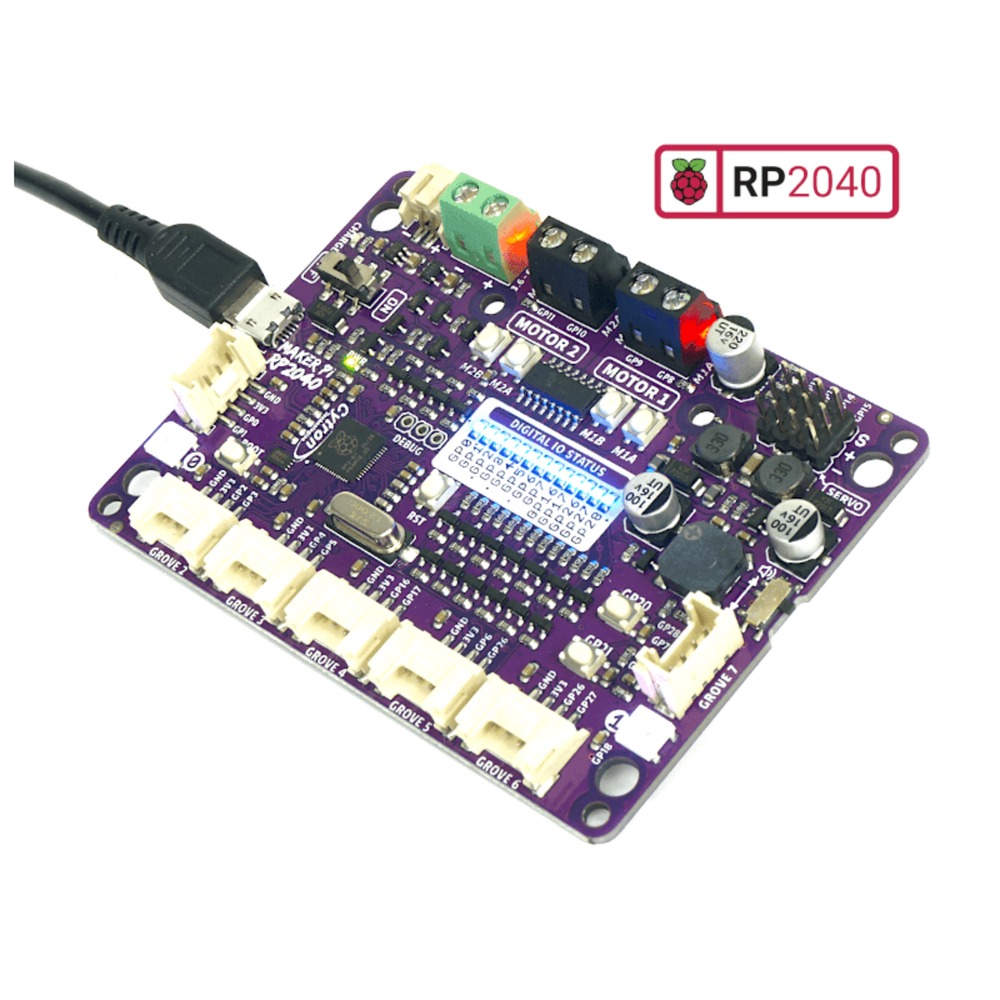

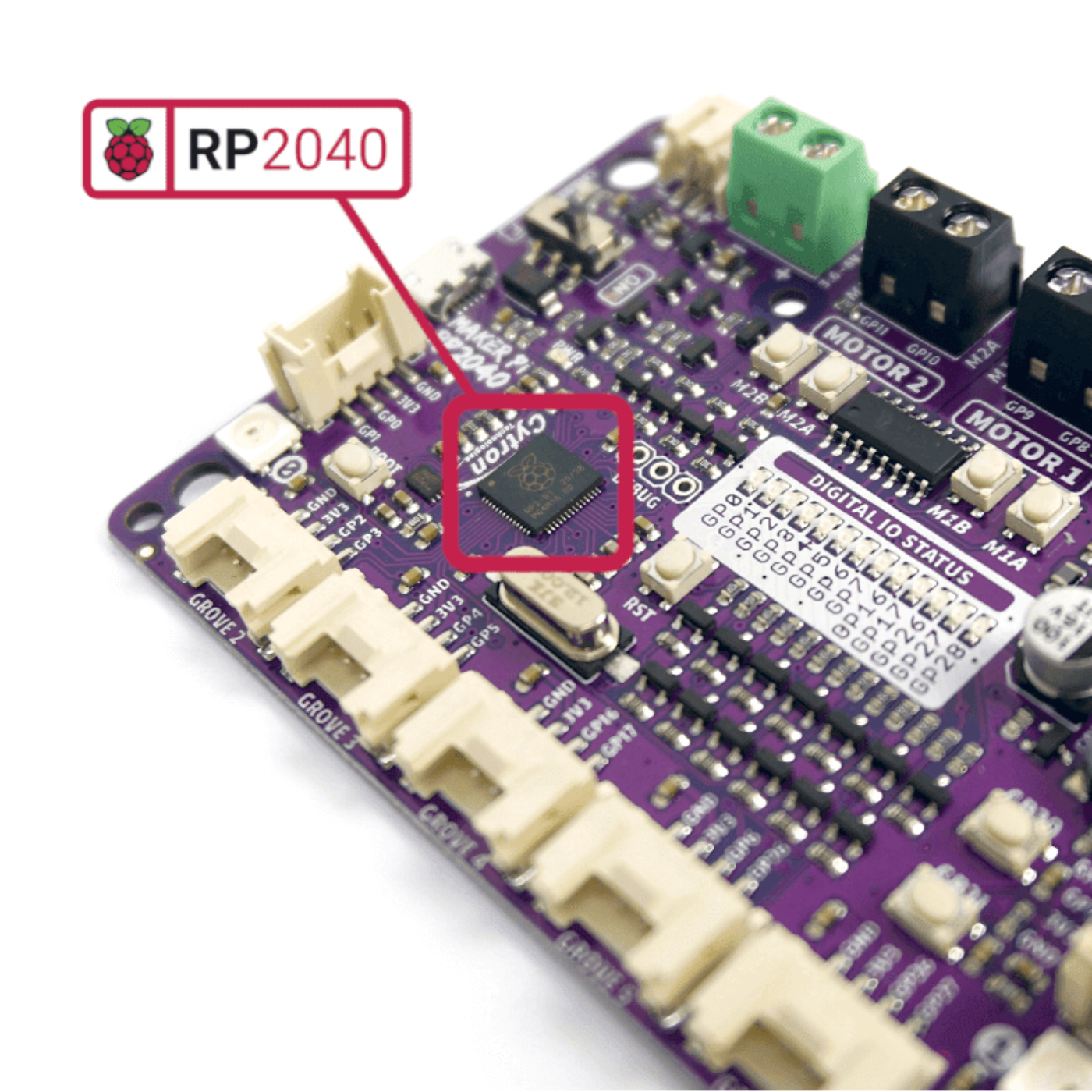

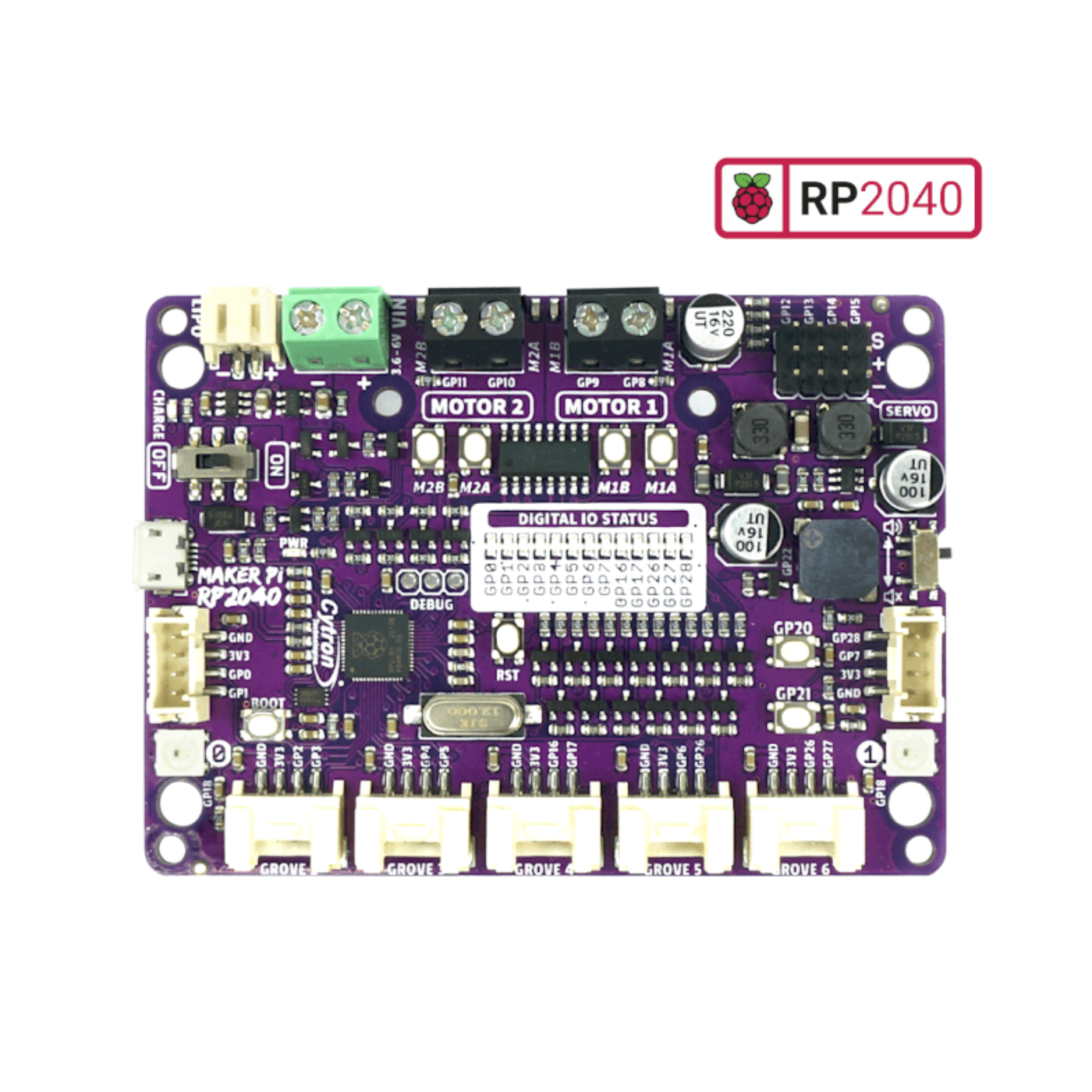

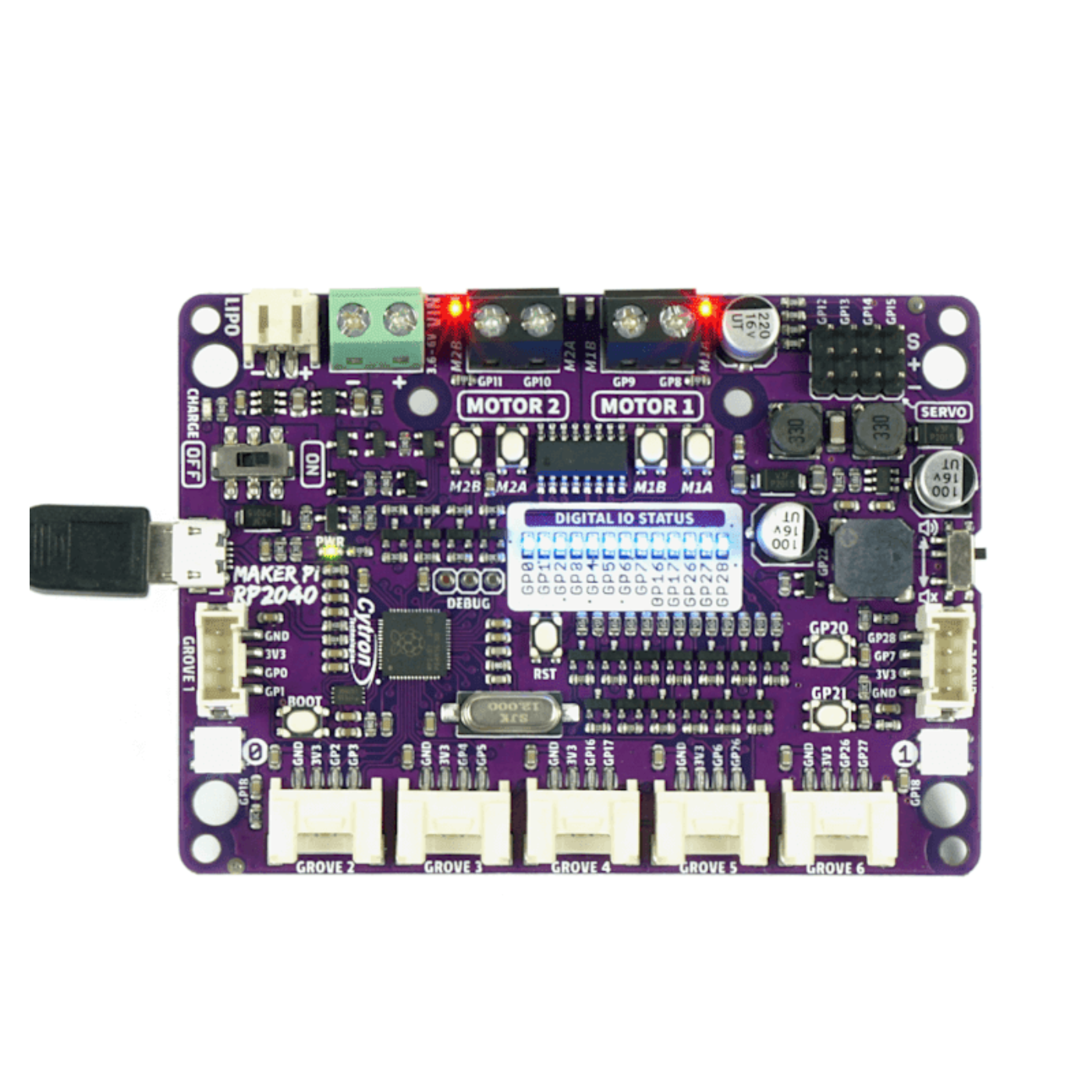

Cytron Maker Pi RP2040 – Robotics Controller Board with Raspberry Pi
Couldn't load pickup availability
The Cytron Maker Pi RP2040 is a compact, beginner-friendly robotics controller board powered by the Raspberry Pi RP2040 microcontroller. Designed for DIY robotics, automation, and motion-control projects, this board integrates a dual-channel DC motor driver, four servo ports, and seven Grove connectors - giving makers everything they need to build robots without complex wiring.
With compatibility across CircuitPython, MicroPython, C/C++, and even the Arduino ecosystem, this board ranks among the best RP2040 robotics controllers for students, hobbyists, and educators.
Built for convenience, the Maker Pi RP2040 supports multiple power input options (USB, LiPo battery, or VIN), includes onboard functional test buttons, and features status LEDs for easy debugging. The preloaded demo code lets you start controlling motors, playing melodies, and testing GPIOs right out of the box.
Whether you are exploring Raspberry Pi’s RP2040 ecosystem or building an advanced robot, the Cytron Maker Pi RP2040 robot controller offers exceptional versatility, ease of use, and reliable motor-driving performance.
| Specification | Details |
|---|---|
| Brand | Cytron |
| Microcontroller | Raspberry Pi RP2040 (Dual-core Arm Cortex-M0+) |
| Flash Memory | 2MB |
| RAM | 264KB |
| Motor Support | 2× DC motors or 1× Stepper Motor (3.6V–6V, 1A per channel) |
| Servo Ports | 4× Servo Motor Ports |
| Grove Ports | 7× Grove I/O Ports (Digital/Analog/I2C/SPI/UART) |
| Power Input | USB 5V, 1-cell LiPo, or VIN (3.6–6V) |
| Charging Circuit | Built-in LiPo charger with overcharge/discharge protection |
| Onboard Components | Piezo buzzer, 13× GPIO LEDs, 2× RGB LEDs, 2× Push buttons |
| Programming Support | CircuitPython (preloaded), MicroPython, C/C++, Arduino Core |
| Dimensions | 88mm × 64mm × 13mm |
| Mounting | 4× LEGO-compatible holes, 6× M3 screw holes |
This product comes with a 12 months manufacturer warranty from the date of purchase, covering manufacturing defects only.
