M5 Stack COMMU Module Extend RS485/TTL CAN/I2C Port

Rs. 988
Rs. 988
Rs. 1,088
You save Rs. 100
9% off
You save Rs. 100
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • 2x I2C Interface
  • 1x CAN Interface
  • 1x RS485 Interface
  • 1x TTL Interface

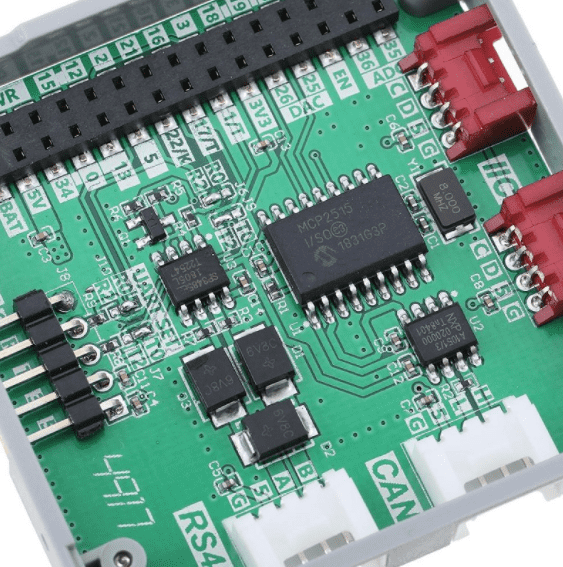

  • CAN controller: MCP2515-1/SO
  • RS485 Transceiver: SP3485EN-L/TR
Also checkout M5 Stack Development Kits, Sensors&Hats, Cameras and Modules collection

M5 Stack COMMU Module Extend RS485/TTL CAN/I2C Port

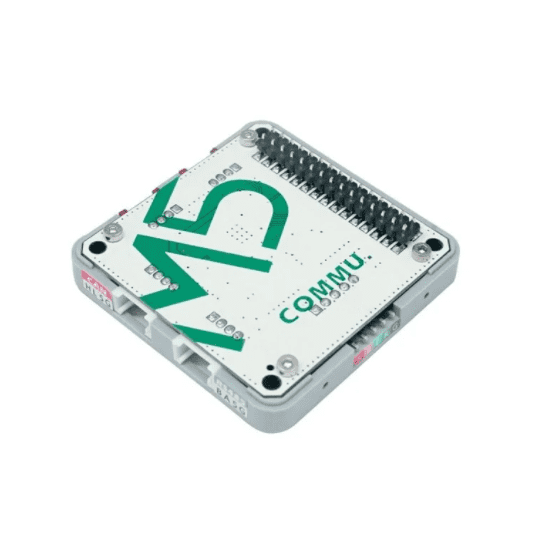

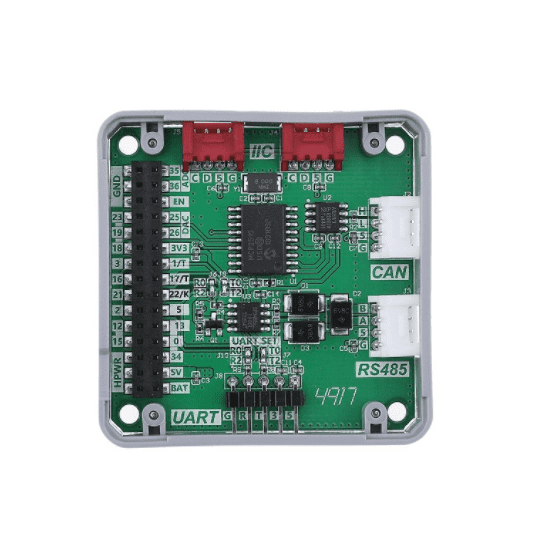

COMMU is a Muti-Communication-Interface-Converter. Integrated with 2I2C, 1TTL, 1CAN, 1RS485. Apparently, COMMU has packed with most of the series communications.

Default connection: TTL - UART0, RS485 - UART2. Since the ESP32 pin map is allowed for re-assign, you can re-assign or re-mapping the TTL or RS485 interface to other pins.

Be careful about TTL Interface. It is a UART Interface actually by default. But you can switch it to connect with UART2 after changing those jumpers(J6, J7, J9, J10).

Package Includes:

1x M5 Stack COMMU Module

Specifications:

Interface I2C x2, CAN x1, RS485 x1, TTL x1
CAN Controller MCP2515-1/SO
RS485 transceiver SP3485EN-L/TR
Dimension 54.2 x 54.2 x 13mm
Weight 24gm

ADDITIONAL RESOURCES

SP3485 Datasheet
MCP2515 Datasheet
M5 Stack Get Started - Quick Guide
